Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Ford Mustang 4.1 applications. Intended for motorsport applications requiring increased torque and heat capacity.
FITMENT Ford Mustang 4.1, January 1971–December 1971; engine L 4089 cc, 106 kW Ford Mustang 4.1, September 1968–December 1973; engine L 4089 cc, 116 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KFD26002-1B Stage: 2 Construction: single plate Friction disc: sprung ceramic Disc diameter: 255 mm Input spline: 10 teeth, 27 mm diameter Supplier-rated torque capacity: 840 Nm Flywheel step: flat (0 mm) Clamp load: 1100 kg (30% increase over standard)

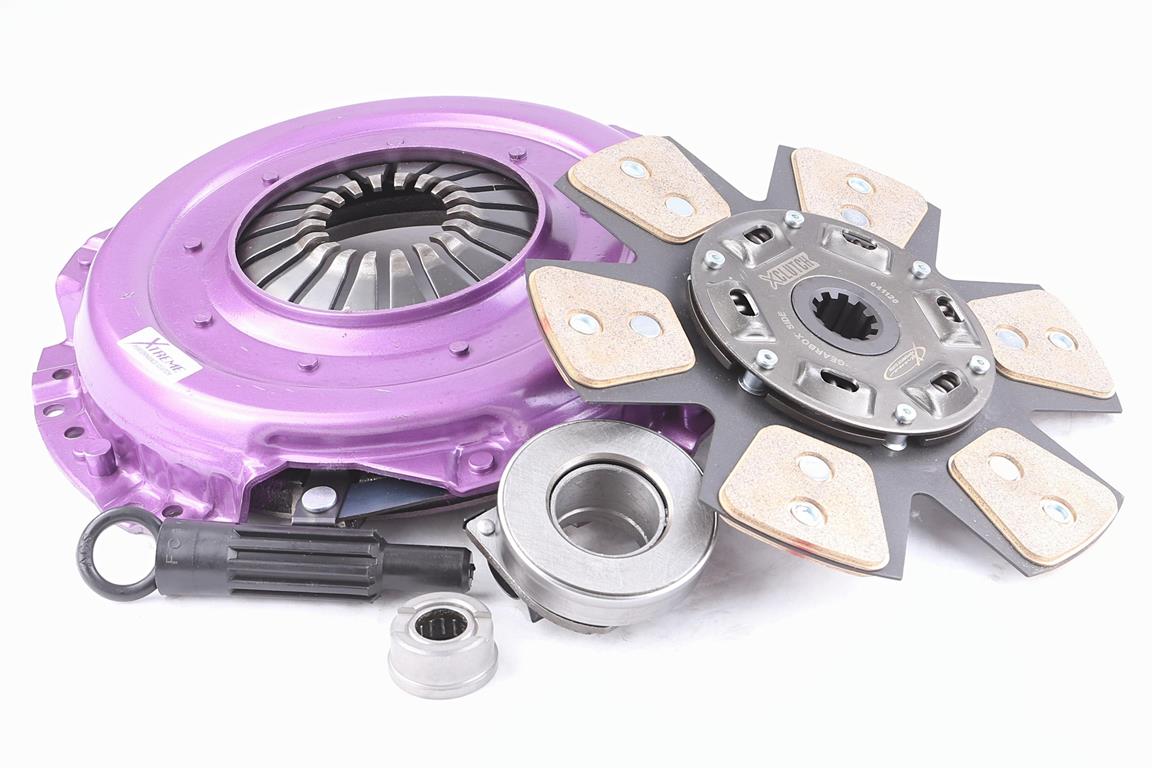

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
