Xtreme Clutch Stage 2R Sprung Ceramic Clutch Kit Ford Mustang 2.3 EcoBoost with Flywheel and CSC KFD24682-1R

Xtreme Clutch Stage 2R sprung ceramic clutch kit for the listed Ford Mustang 2.3 EcoBoost applications. Intended for motorsport applications requiring increased torque and heat capacity. Includes a single-mass conversion flywheel and concentric slave cylinder.

FITMENT
Ford Mustang 2.3 EcoBoost, June 2018–July 2019; engine C23HD0D 2261 cc, 224 kW
Ford Mustang 2.3 EcoBoost, December 2014–June 2018; engine C23HD0D 2261 cc, 233 kW
Ford Mustang 2.3 EcoBoost, August 2019–November 2023; engine C23HD0D 2261 cc, 236 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KFD24682-1R
Stage: 2R
Construction: single plate
Friction disc: sprung ceramic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 910 Nm
Flywheel step: -10.04 mm
Included flywheel: single-mass conversion

PURCHASED PARTS PACKAGE

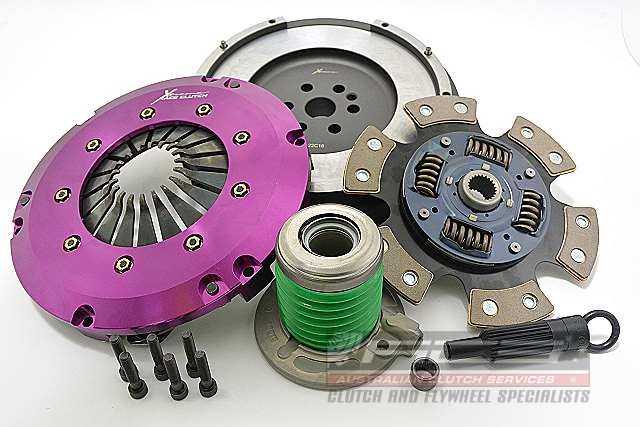

Extra-heavy-duty pressure plate, sprung ceramic friction disc, matching flywheel, concentric slave cylinder (CSC) and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components. Single-mass conversion can increase transmitted engine harmonics or gearbox rattle. Follow the manufacturer’s instructions applicable to the supplied assembly: SMF02: conversion noise, TSB-167: CSC handling and TSB-226: clutch assembly and disc orientation.
