Xtreme Clutch 230mm Organic Twin Plate Clutch Kit Ford Mustang 4.6 V8 with Flywheel and CSC KFD23657-2G

Xtreme Clutch 230 mm organic twin-plate clutch kit for the listed Ford Mustang 4.6 V8 application. Includes a matching flywheel and concentric slave cylinder (CSC).

FITMENT
Ford Mustang 4.6 V8, 2005–2009; engine C46USEM 4601 cc, 224 kW
Manual-transmission application only.

SPECIFICATIONS
Part number: KFD23657-2G
Construction: twin plate
Friction discs: organic
Disc diameter: 230 mm
Input spline: 10 teeth, 27 mm diameter
Supplier-rated torque capacity: 1200 Nm
Supplier recommended use: high-horsepower street-driven vehicles

PURCHASED PARTS PACKAGE

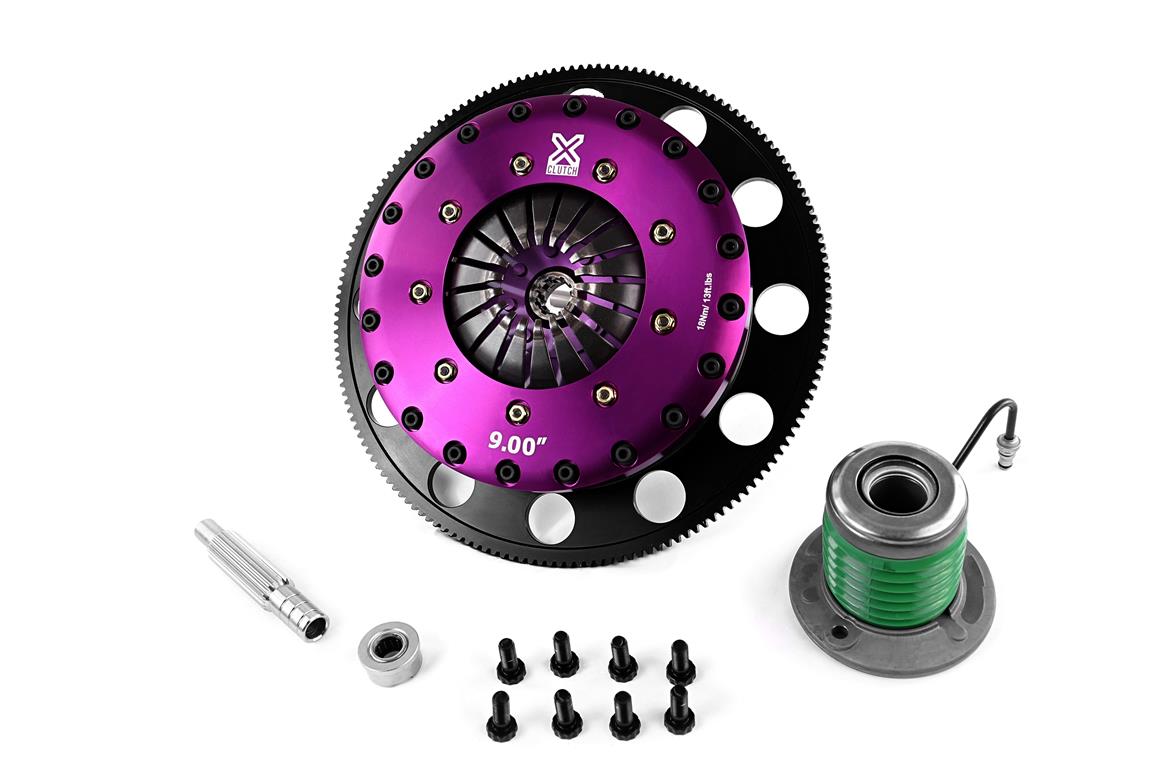

Twin-plate clutch assembly with two organic friction discs, matching flywheel, concentric slave cylinder (CSC) and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
