Xtreme Clutch single-plate cushioned ceramic clutch kit for the Mazda 323. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda 323 (BA) August 1994–September 1998 — 1.8, BP (DOHC) 1840, 92 kW. Mazda 323 (BA11) July 1994–September 1998 — 1.8, BP (DOHC) 1840, 92 kW. Mazda 323 (BA) August 1994–September 1998 — 1.8 16V, BP (DOHC) 1840, 92 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KFD23019-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 225 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: -20.0 mm (0.787 inch) Supplier-rated torque capacity: 450 Nm Clamp load: 700 kg (40% inc.)

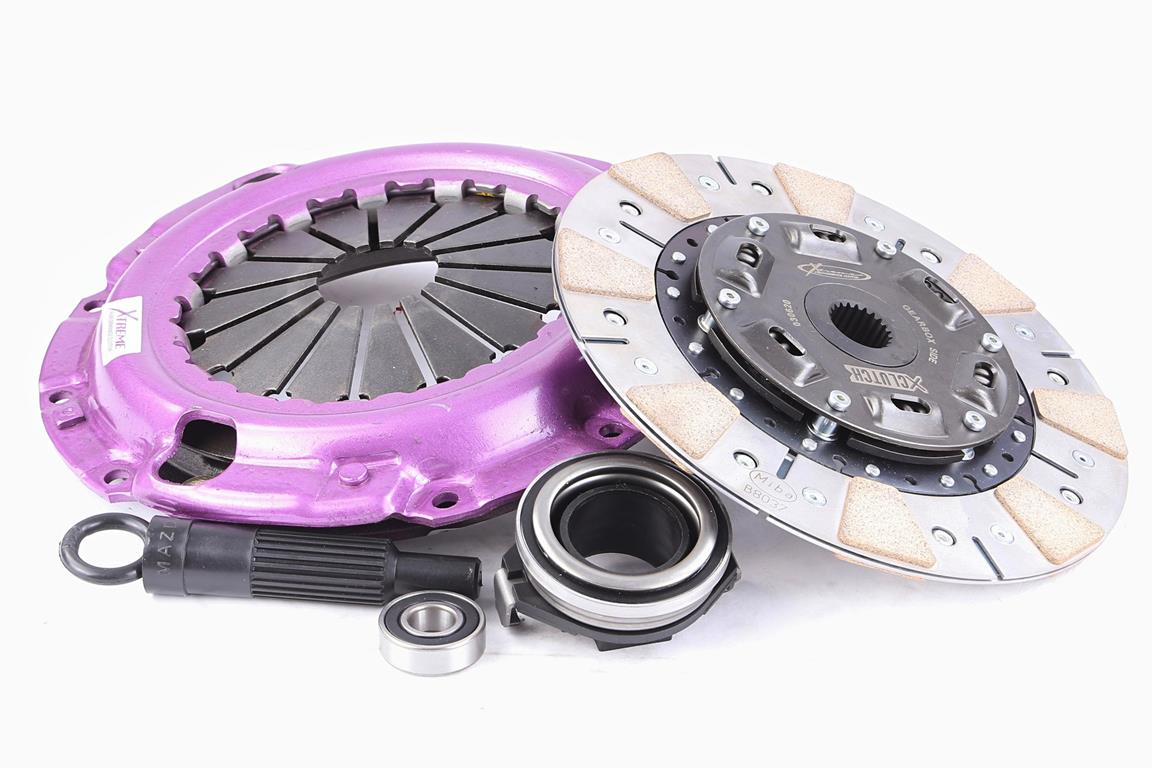

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
