Xtreme Clutch single-plate sprung ceramic clutch kit for the Mazda 626. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda 626 (GC10E1) January 1986–October 1987 — 2.0 i Turbo, FET 1998, 87 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KFD23010-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 225 mm Input spline: 22 teeth, 24.5 mm diameter Flywheel step: -20.0 mm (0.787 inch) Supplier-rated torque capacity: 420 Nm Clamp load: 700 kg (40% inc.)

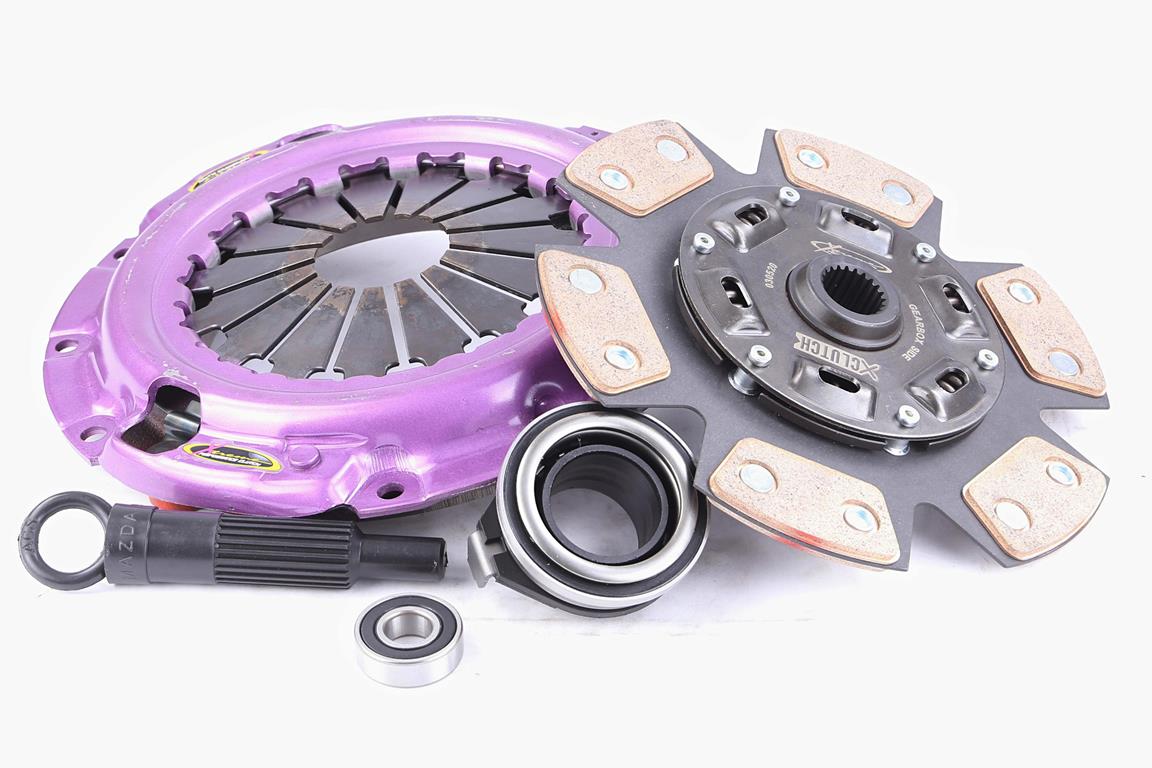

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
