Xtreme Clutch single-plate sprung organic clutch kit for the Mazda 323. Designed for street-performance applications.
FITMENT Mazda 323 (BD103) November 1980–October 1989 — 1.3, E3 1296, 50 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KFD19005-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 185 mm Input spline: 20 teeth, 22.8 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 200 Nm Clamp load: 530 kg (30% inc.)

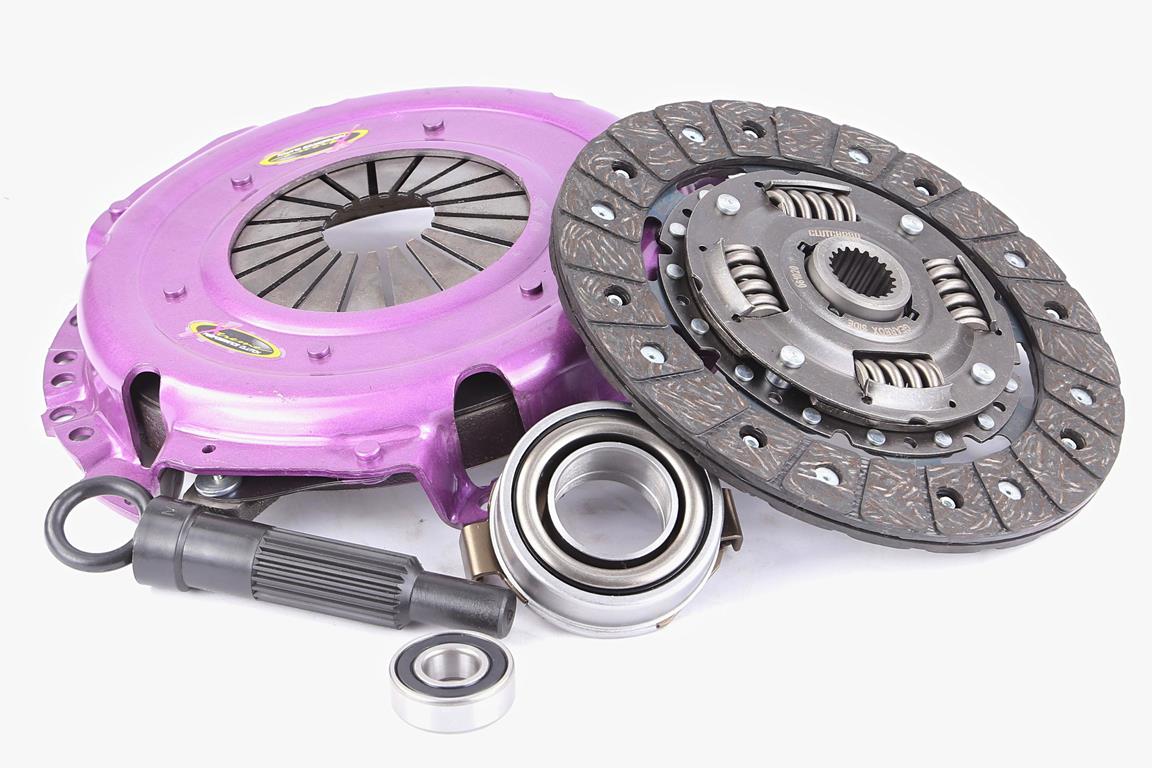

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
