Xtreme Clutch 225 mm sprung organic single-plate clutch kit for the listed Chevrolet Rezzo 2.0 manual applications.
FITMENT Chevrolet Rezzo 2.0, March 2005–2008; L88, 1998 cc petrol, 89 kW. Chevrolet Rezzo 2.0, August 2005–September 2009; L88, 1998 cc petrol, 90 kW. Manual-transmission application only.
SPECIFICATIONS Part number: KDE23001-1A Construction: single plate Friction disc: sprung organic Disc diameter: 225 mm Input spline: 14 teeth, 20.7 mm diameter Supplier-rated torque capacity: 270 Nm Flywheel step: -19.1 mm Recommended use: street performance Supplier clamp load: 745 kg, 40% above standard

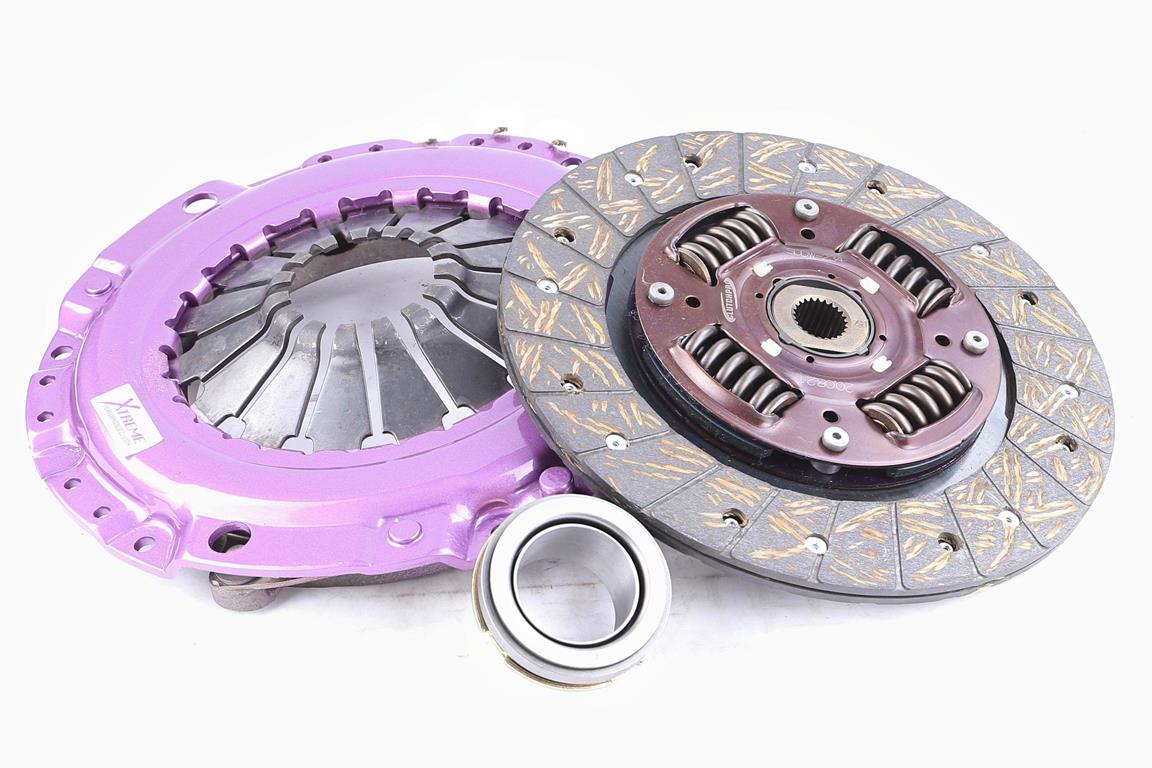

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and release bearing shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components.
