Xtreme Clutch 240mm Sprung Organic Clutch Kit BMW M3 E46 with Flywheel KBM24596-1A

Xtreme Clutch 240 mm sprung organic single-plate clutch kit with single-mass flywheel for the listed BMW M3 E46 applications.

FITMENT
BMW M3 E46, July 2000–May 2006; S54 B32 (326S4), 3246 cc, 252 kW.
BMW M3 CSL E46, May–December 2003; S54 B32 (326S4), 3246 cc, 265 kW.
Supplier application table specifies manual and automated-manual (SMG) gearboxes. Match the exact gearbox and follow its installation and calibration procedure.

SPECIFICATIONS
Part number: KBM24596-1A
Construction: single plate
Friction disc: sprung organic
Disc diameter: 240 mm
Input spline: 10 teeth, 35 mm diameter
Supplier-rated torque capacity: 460 Nm
Flywheel step: -3.8 mm
Flywheel: single-mass replacement for the original dual-mass assembly
Recommended use: street performance
Supplier-rated clamp-force increase: 30%

PURCHASED PARTS PACKAGE

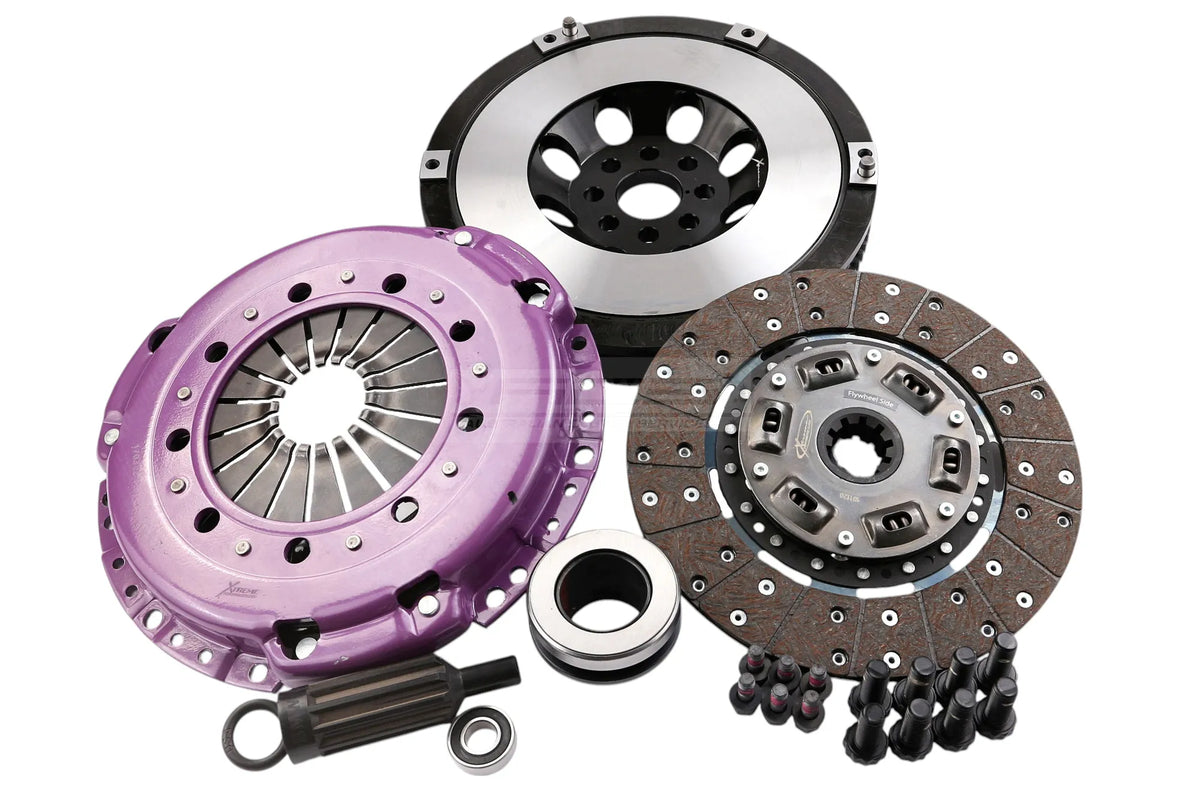

Heavy-duty pressure plate and sprung organic friction disc, matching single-mass flywheel, release bearing, pilot bearing, bolts and alignment tool.

INSTALLATION AND USE
Match the chassis, engine, gearbox input spline and release system before ordering. Fit the supplied clutch and flywheel as a matched assembly. Inspect the clutch fork and pivot ball for wear and follow TSB-269. Follow TSB-174: friction-disc orientation; this conversion requires the spring cage towards the flywheel. Fit the new release bearing onto the existing carrier as instructed in TSB-TB02. Follow TSB-SMF02: single-mass flywheel conversion. A single-mass flywheel can increase gearbox rollover noise and transmitted engine harmonics. Follow the supplied bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components.
