Xtreme Clutch 230mm Rigid Organic Twin Plate Clutch Kit BMW M3 E90 / E92 / E93 with Flywheel KBM23599-2G
2 003 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch 230 mm rigid organic twin-plate clutch kit for the listed BMW M3 manual applications. Includes a matching single-mass flywheel.
FITMENT BMW M3 E90, December 2007–October 2011; S65 B40 A, 3999 cc, 309 kW. BMW M3 E92, June 2007–June 2013; S65 B40 A, 3999 cc, 309 kW. BMW M3 E93, March 2008–October 2013; S65 B40 A, 3999 cc, 309 kW. Manual transmission only. Not for DCT models.
SPECIFICATIONS Part number: KBM23599-2G Construction: twin plate Friction discs: rigid organic Disc diameter: 230 mm Input spline: 26 teeth, 35 mm diameter Supplier-rated torque capacity: 1200 Nm Recommended use: high-power street vehicles Flywheel step: +3.8 mm Flywheel: single-mass conversion

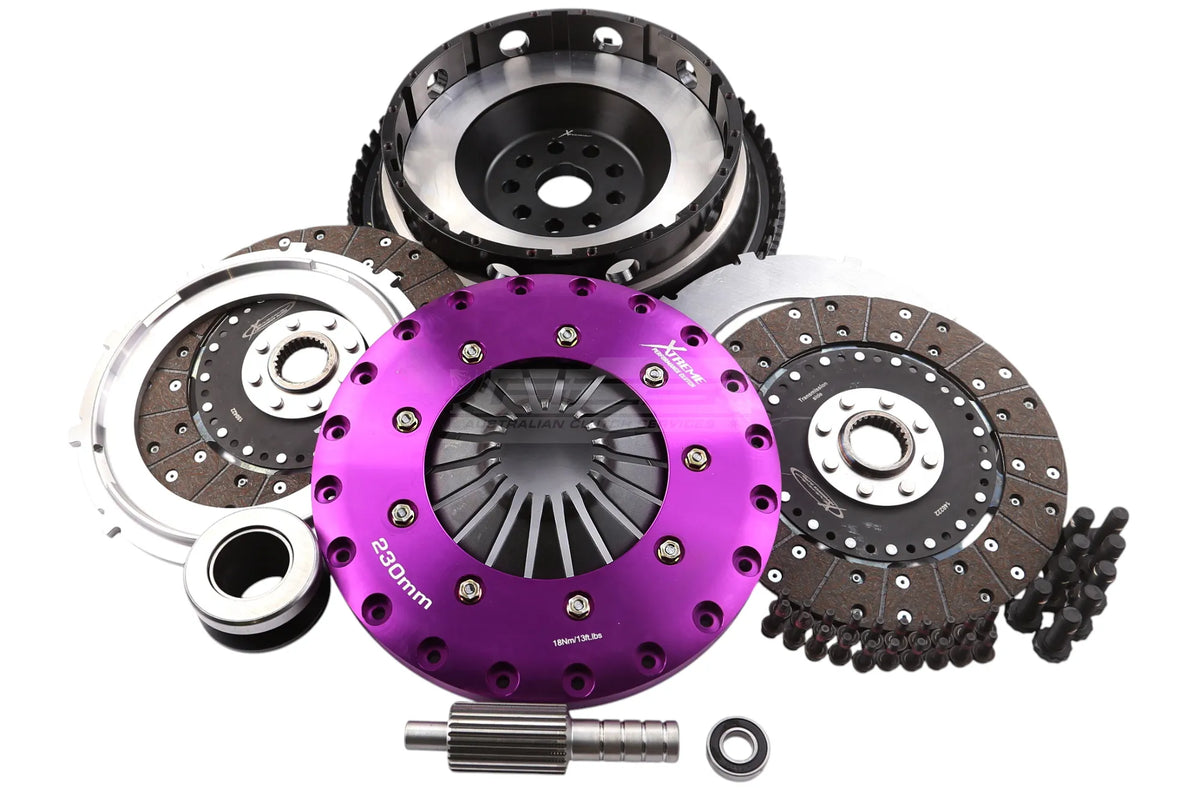

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two rigid organic friction discs, intermediate plate and clutch cover, matching single-mass flywheel, release bearing, pilot bearing, bolts and alignment tool.
INSTALLATION AND USE Match the chassis, engine code, gearbox input spline, flywheel and release system before ordering. Fit the supplied components as a matched assembly and follow the supplied installation and bedding-in instructions. Inspect the clutch fork and pivot ball for wear and follow TSB-269 and TSB-166: 230 mm twin-plate installation. The floating intermediate plate can rattle when the clutch is disengaged. A single-mass flywheel can increase gearbox rollover noise and transmitted engine harmonics. The supplier torque rating does not establish a safe limit for other drivetrain components.
