Xtreme Clutch 240mm Rigid Organic Clutch Kit Alfa Romeo Giulietta / Fiat Freemont with CSC KAR24414-1A

Xtreme Clutch 240 mm rigid organic single-plate clutch kit for the listed Alfa Romeo Giulietta and Fiat Freemont manual applications. Includes a concentric slave cylinder (CSC).

FITMENT
Alfa Romeo Giulietta 1.8 TBi, April 2010–September 2013; 940 A1.000, 1742 cc petrol, 169 kW.
Alfa Romeo Giulietta 1.8 TBi, April 2010–February 2016; 940 A1.000, 1742 cc petrol, 173 kW.
Fiat Freemont 2.0 JTD, August 2011–2015; 939 B5.000 / 940 A5.000, 1956 cc diesel, 125 kW.
Manual transmission only. Match the exact engine and gearbox; not for TCT or automatic variants.

SPECIFICATIONS
Part number: KAR24414-1A
Construction: single plate
Friction disc: rigid organic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 600 Nm
Recommended use: street performance

PURCHASED PARTS PACKAGE

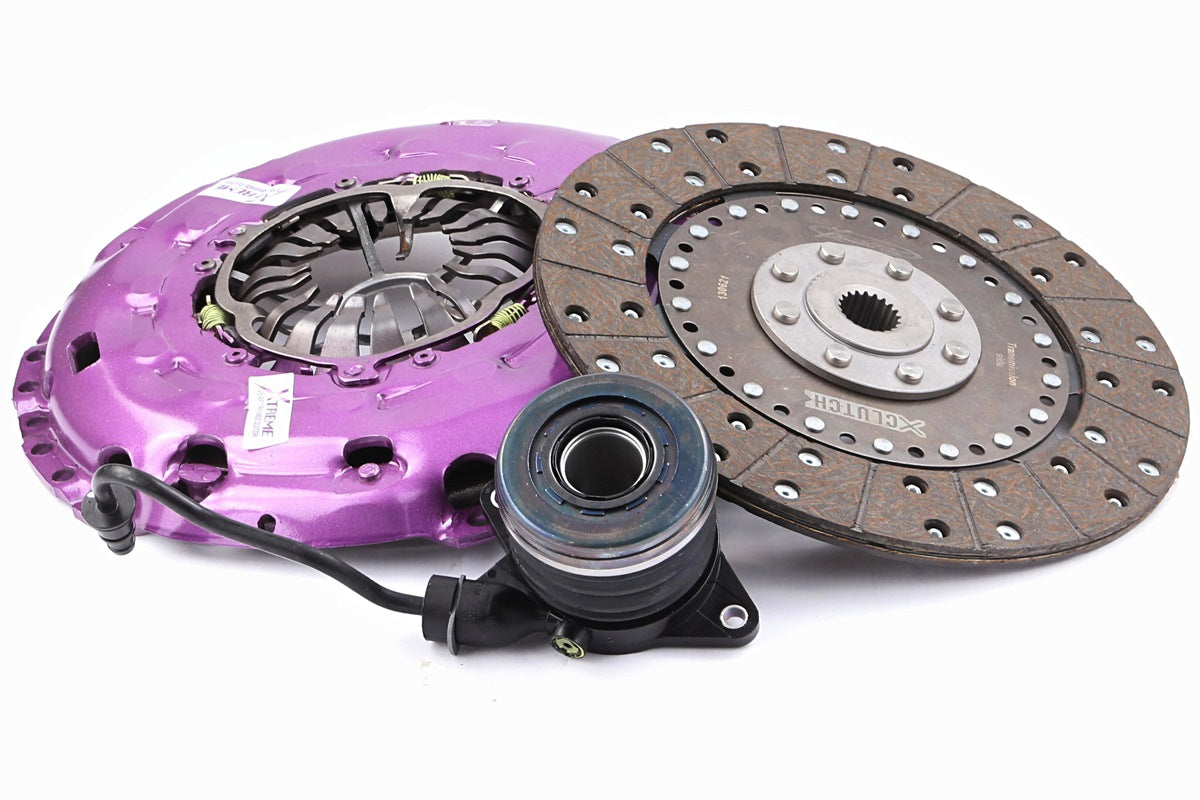

Heavy-duty pressure plate, rigid organic friction disc and concentric slave cylinder (CSC). Flywheel is not included.

INSTALLATION AND USE
Match the chassis, engine code, gearbox input spline, flywheel and release system before ordering. Fit the supplied components as a matched assembly and follow the supplied installation and bedding-in instructions. Follow TSB-167: CSC mounting and handling as applicable to the supplied release unit. The existing correct dual-mass flywheel must be serviceable or replaced; this kit does not supply a flywheel. The supplier torque rating does not establish a safe limit for other drivetrain components.
