Xtreme Clutch 240 mm rigid organic clutch kit for the listed Alfa Romeo 1.8 TBi manual applications.
FITMENT Alfa Romeo 159 1.8 TBi, May 2009–December 2012. Alfa Romeo 159 Sportwagon 1.8 TBi, July 2009–November 2011. Alfa Romeo Brera 1.8 TBi, May 2009–June 2010. Alfa Romeo Spider 1.8 TBi, May 2009–March 2011. All listed applications: 939 B1.000, 1742 cc petrol, 147 kW. For manual gearboxes only. Match the engine code, gearbox input spline, flywheel and hydraulic release setup. Not for automatic applications or other Alfa engine versions.
SPECIFICATIONS Part number: KAR24411-1A Construction: single plate Friction disc: rigid organic Disc diameter: 240 mm Input spline: 23 teeth, 26 mm diameter Supplier-rated torque capacity: 600 Nm Flywheel step: -7.4 mm Recommended use: performance road use

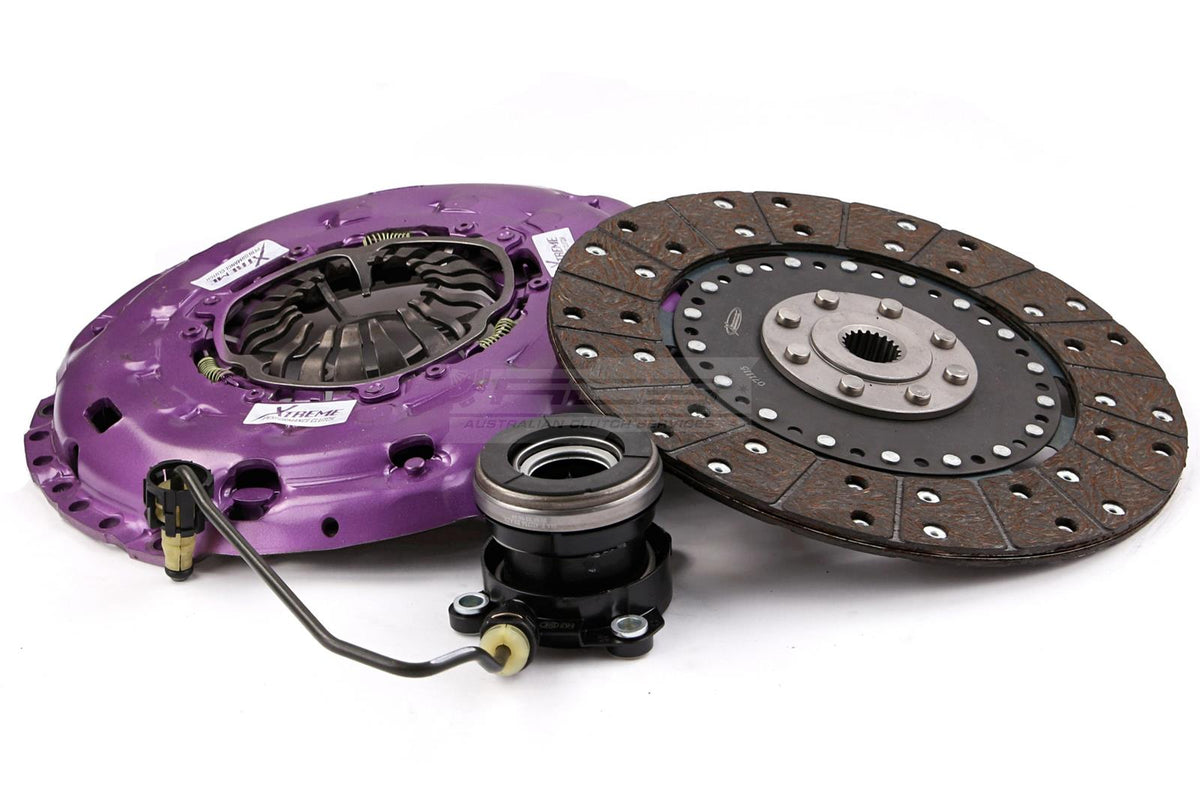

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, rigid organic friction disc and concentric slave cylinder (CSC). Flywheel is not included.
INSTALLATION AND USE Follow the supplied installation instructions and manufacturer bedding-in guidance. Match the CSC connections and installed release height to the exact gearbox. Inspect the existing dual-mass flywheel against the vehicle service limits before reuse. The supplier torque rating does not establish a safe limit for other drivetrain components.
