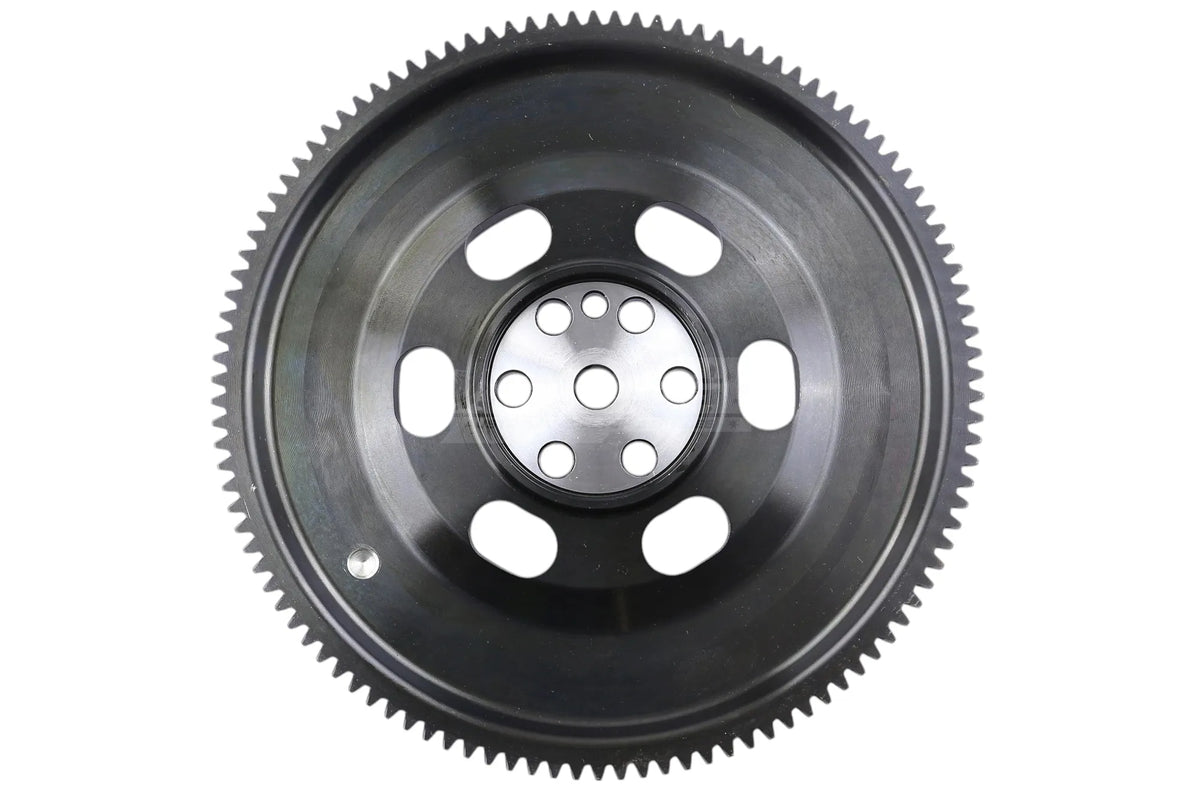

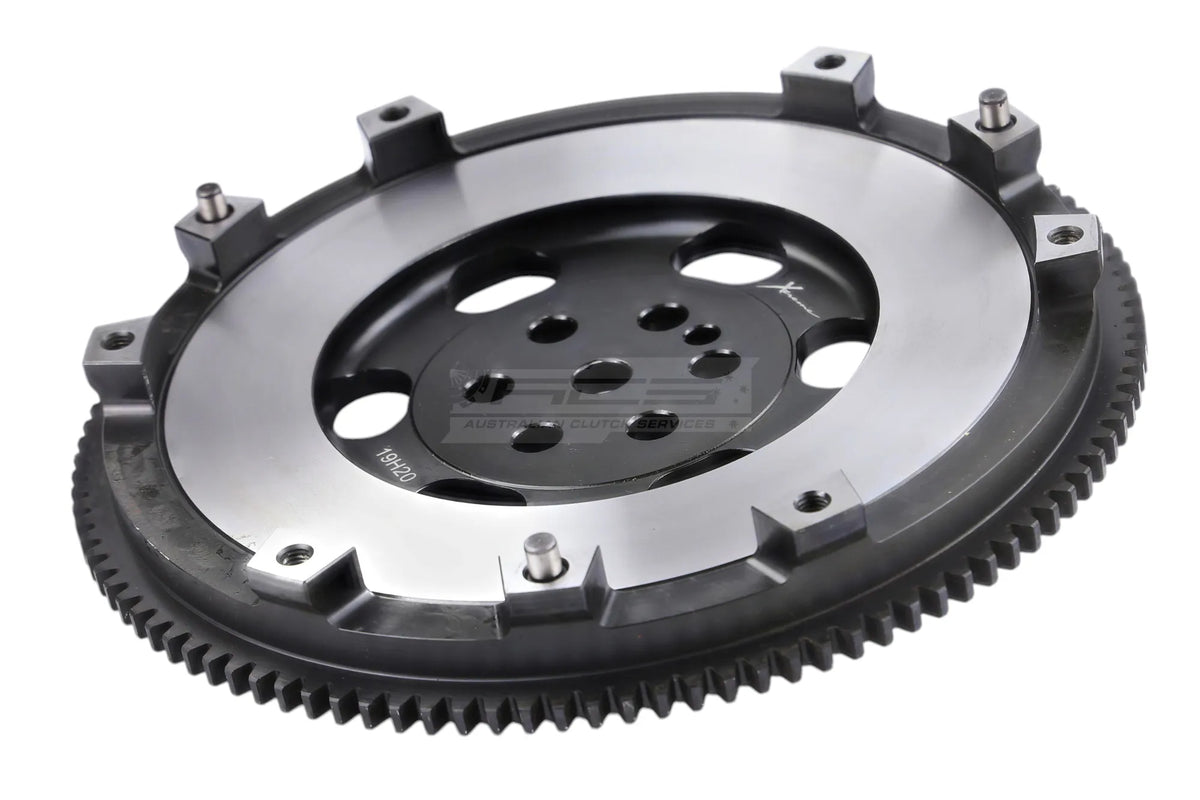

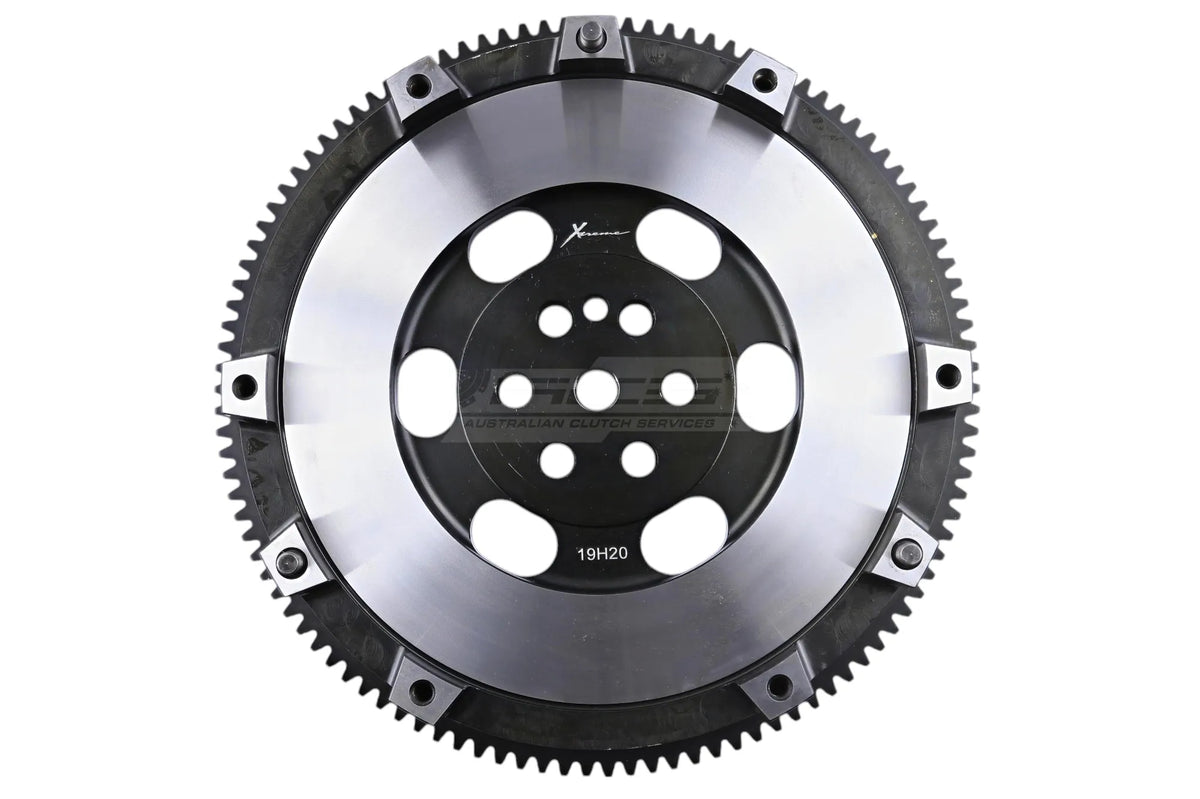

Xtreme Clutch flywheel for compatible Xtreme Clutch applications in the Mitsubishi Galant. Confirm the exact Xtreme Clutch kit, engine and manual gearbox combination before ordering. Do not assume compatibility with an original-equipment or another brand’s clutch.
FITMENT Mitsubishi Galant (E39A / E38A / E33A) May 1989–December 1992 — 2.0, 4G63 (SOHC 8V) 1997 cc, 77 kW. Mitsubishi Galant (E39A / E38A / E33A) April 1989–October 1992 — 2.0, 4G63 (SOHC 8V) 1997 cc, 80 kW. Mitsubishi Galant (E33A / E38A / E39A) April 1989–October 1992 — 2.0 4WD, 4G63 (SOHC 8V) 1997 cc, 80 kW. Mitsubishi Galant (E38A / E39A / E33A) July 1989–December 1992 — 2.0 GTI 16V 4x4, 4G63 (DOHC 16V) 1997 cc, 106 kW. Manual-transmission applications only. Confirm the gearbox and clutch specification; a matching vehicle name alone does not establish compatibility.
SPECIFICATIONS Part number: FMI002C Crankshaft mounting: 6 bolts Flywheel design: single mass Material: Chromoly steel Flywheel step: -15.4 mm Ring gear: 110 teeth Mounting hole diameter: 12.3 mm
PURCHASED PARTS PACKAGE One flywheel as shown in the supplier photograph. Clutch disc, pressure plate, release components and installation hardware are not included unless supplied separately.
INSTALLATION AND USE Check the crankshaft mounting pattern, starter engagement, ring gear and clutch operating height before installation. Follow the fitting instructions for the specific flywheel and clutch combination. Use the specified fasteners and tightening procedure.
