Xtreme Clutch flywheel for compatible Xtreme Clutch applications in the Isuzu D-MAX. Confirm the exact Xtreme Clutch kit, engine and manual gearbox combination before ordering. Do not assume compatibility with an original-equipment or another brand’s clutch.
FITMENT Isuzu D-MAX (TFR87J) March 2017 onwards — 1.9 Ddi, RZ4E-TC 1898 cc, 120 kW. Isuzu D-MAX (TFS87J) March 2017 onwards — 1.9 Ddi 4x4, RZ4E-TC 1898 cc, 120 kW. Manual-transmission applications only. Confirm the gearbox and clutch specification; a matching vehicle name alone does not establish compatibility.
SPECIFICATIONS Part number: FIZ284C Flywheel design: single mass Material: Chromoly steel

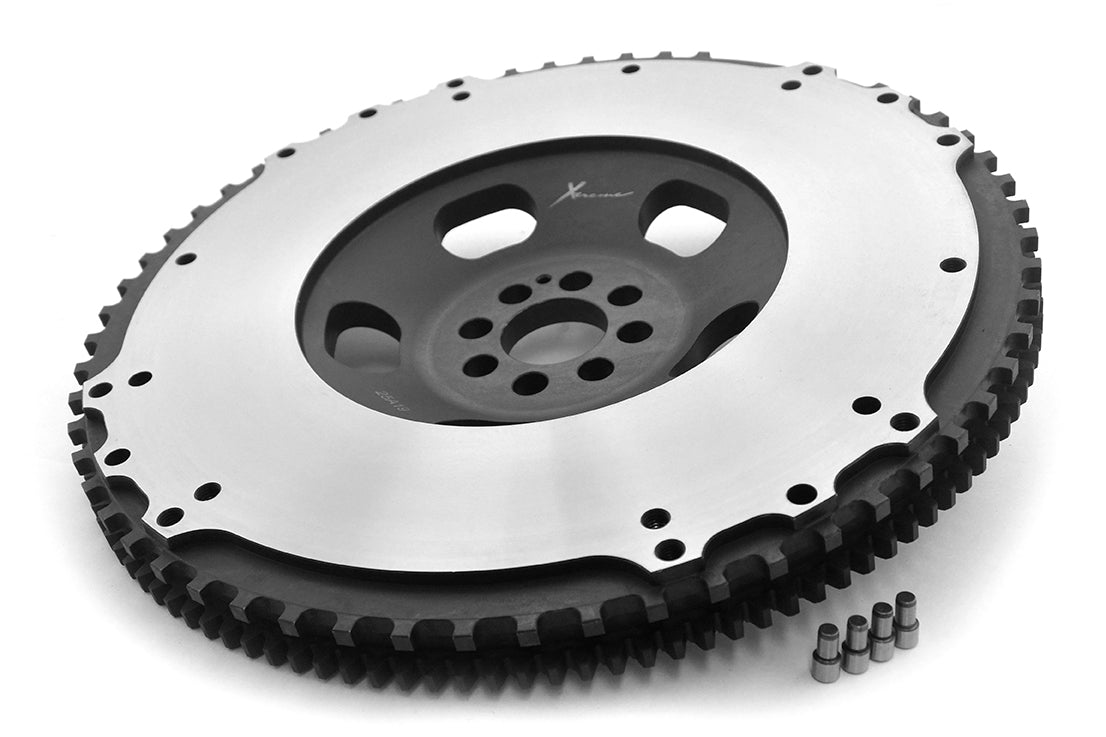

PURCHASED PARTS PACKAGE One flywheel as shown in the supplier photograph. Clutch disc, pressure plate, release components and installation hardware are not included unless supplied separately.
INSTALLATION AND USE Check the crankshaft mounting pattern, starter engagement, ring gear and clutch operating height before installation. Follow the fitting instructions for the specific flywheel and clutch combination. Use the specified fasteners and tightening procedure.
