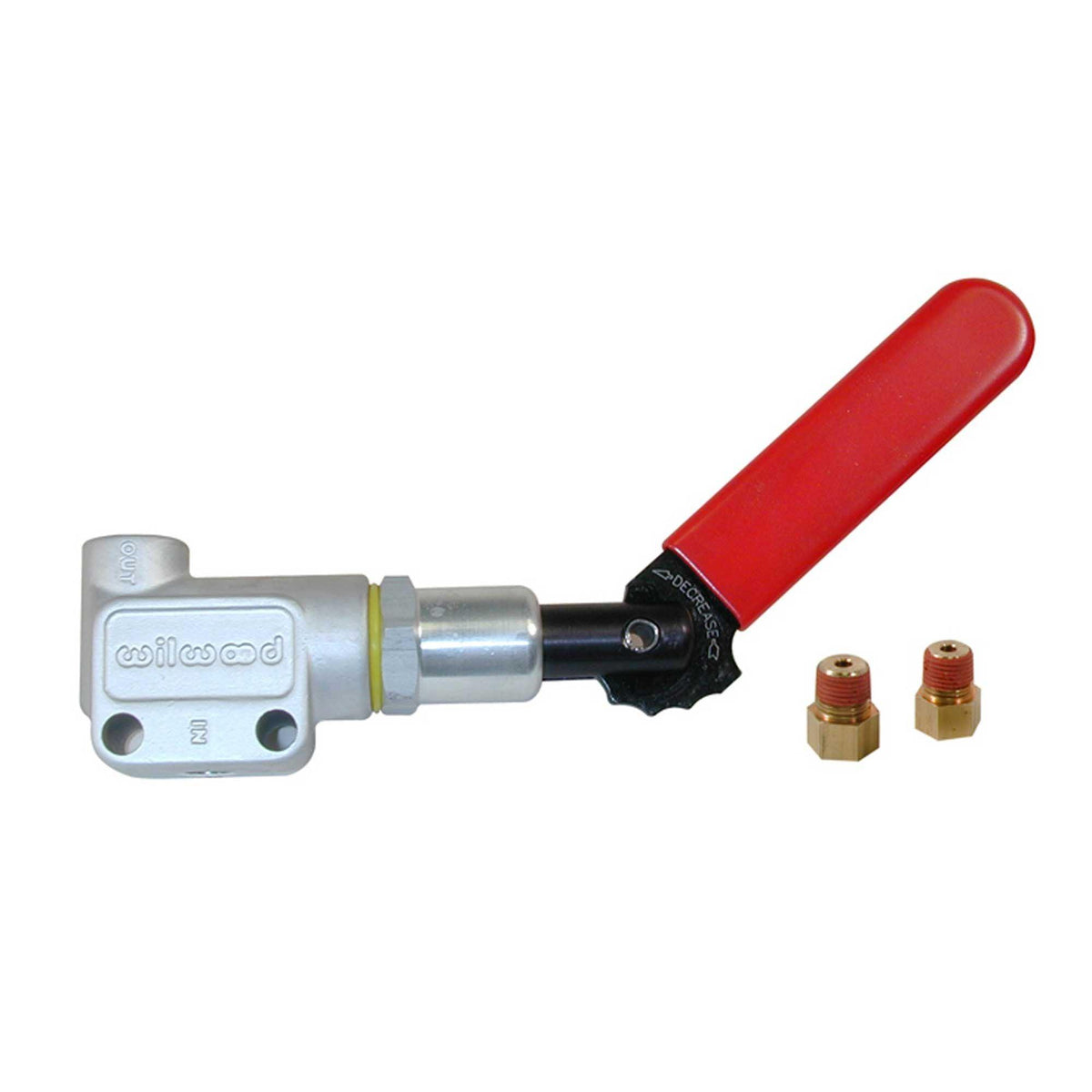

Wilwood lever-operated proportioning valve for adjusting front-to-rear brake pressure balance in a custom brake system. Part number: 260-8420.
ADJUSTMENT Six preset lever positions provide positive adjustment. Maximum line-pressure reduction is 57%.
CONNECTIONS AND MOUNTING Inlet and outlet: 1/8-27 NPT. Includes two adapters from 1/8-27 NPT to 3/8-24 inverted-flare female connections for suitable 3/16-inch hard brake lines. Mounting holes: 0.25 inch diameter, spaced 1.00 inch apart. Aluminium and steel construction with a clear-anodised finish.
APPLICATION Normally installed in the rear brake circuit to reduce rear line pressure. This is a component for a custom brake system; it is not a direct replacement for an original vehicle proportioning valve. Check system suitability, line fittings and installation against the manufacturer’s instructions.
PACKAGE One Wilwood 260-8420 lever proportioning valve and two line adapters.
