The OLED Pit Display acts as asecondary display to the VBOX Pit Lane Timer, mirroring the stationary countdown time to make this information easily available to the pit crew.
It can be mounted to the dash or side window, facing towards the pit crew, and provides real-time information on the remaining time in the pit lane.

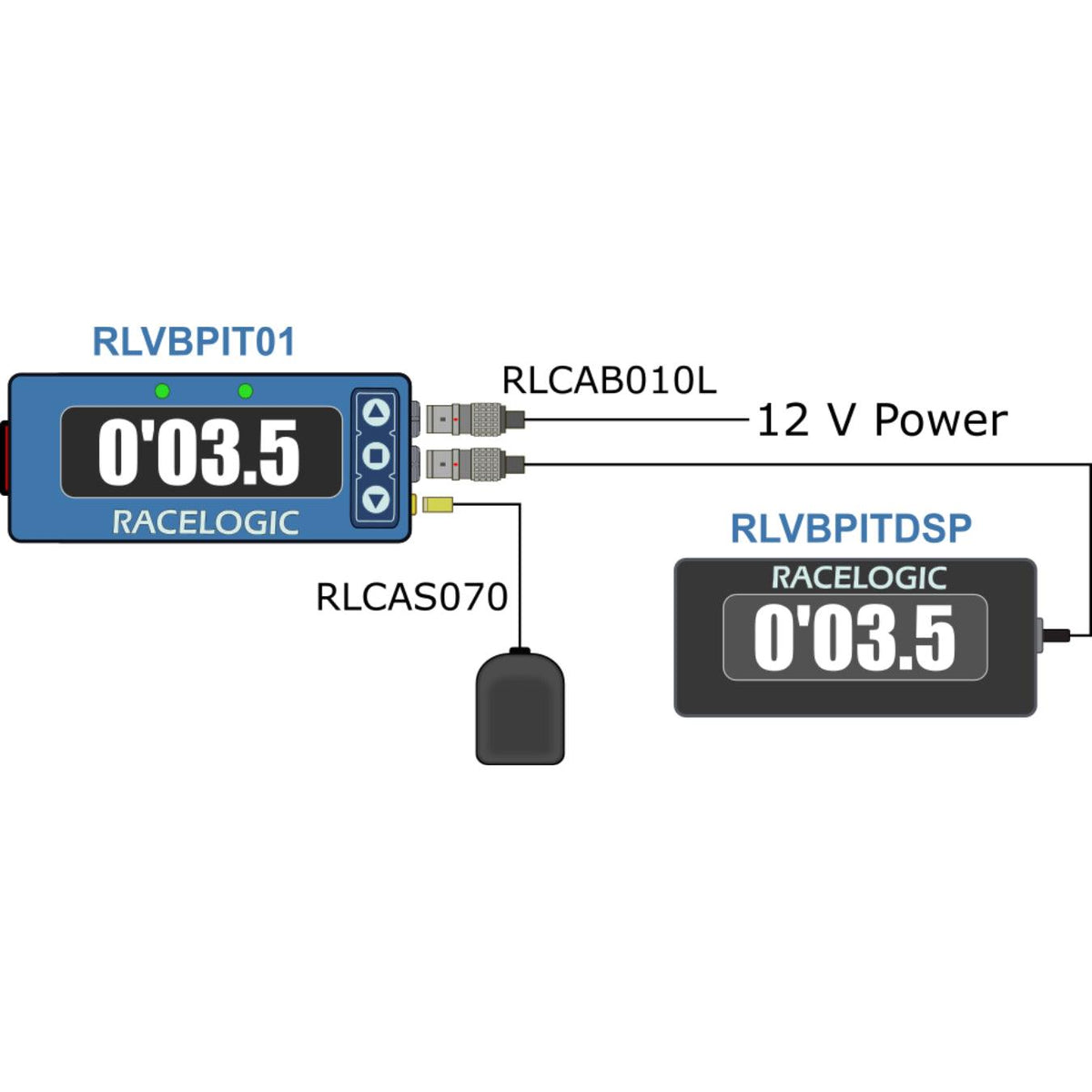

Housed in a splash proof case, the Pit Display connects to the coms port on the VBOX Pit Lane Timer via an attached 3.5 m flying lead. It includes in-built CAN termination.
VBOX Pit Lane Timer requires firmware version 1.1.22 or later to use an OLED Pit Display. A standard OLED display cannot be used instead of an OLED Pit Display.
More information with instructions are available here
