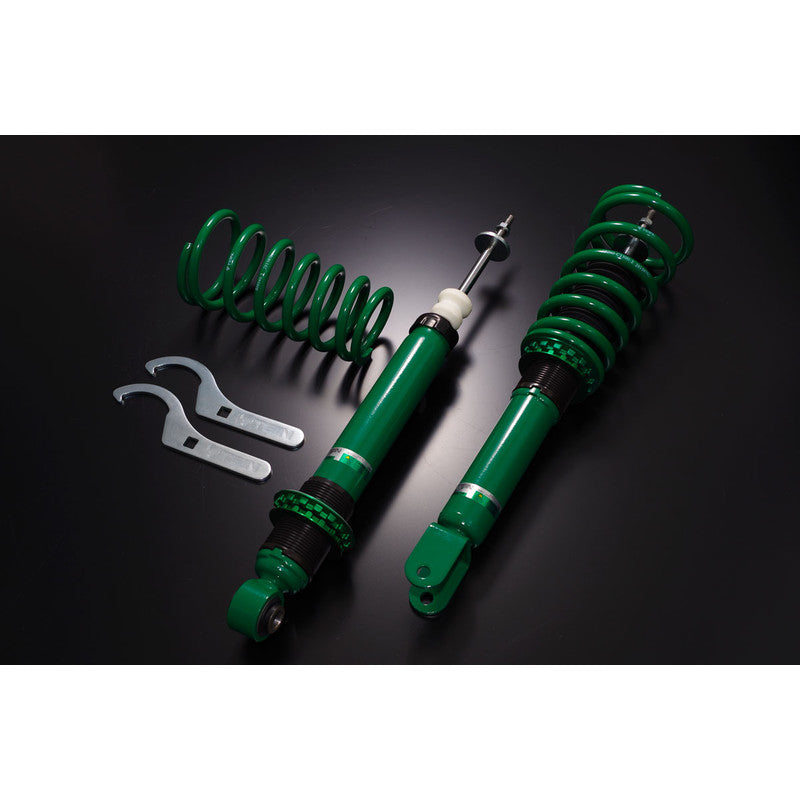

Tein Street Basis Z Coilover Suspension Mazda RX-8 (SE3P) GSM56-81SS2

GSM56-81SS2

FITMENT
Mazda RX-8 (SE3P) 2003–2012

GENERAL FEATURES
Twin-tube construction
Fixed damping force
Ride height adjustment by spring seat
Uses original top mounts

FRONT FEATURES
Spring rate: 59 N/mm
Height adjustable

REAR FEATURES
Spring rate: 39 N/mm
Height adjustable

PURCHASED PARTS PACKAGE
Coilover suspension kit with front and rear springs

RECOMMENDED RIDE HEIGHT SETTINGS
Changes relative to original ride height, in mm. Settings depend on the vehicle version.

Mazda RX-8 (SE3P) 2003–2012
Front: standard setting -30 mm; recommended range -30 to -20 mm
Rear: standard setting -20 mm; recommended range -20 to -10 mm
