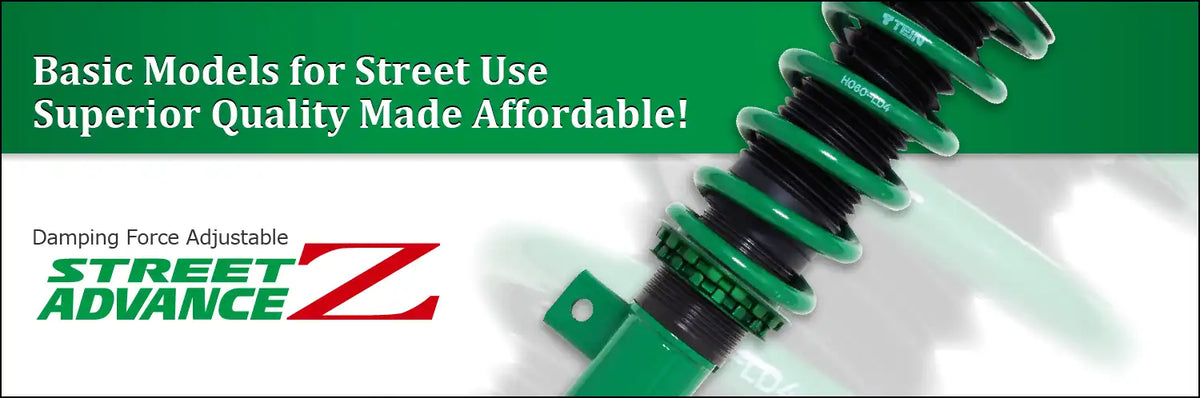

Tein STREET ADVANCE Z Coilover Suspension Honda Integra Type R (DC5) GSA28-9USS2

GSA28-9USS2

FITMENT
Acura RSX (DC5) 2002–2006
Honda Integra Type R (DC5) 2002–2006

PRODUCT INFORMATION
Twin-tube construction
16-level damping adjustment
Spring-seat ride-height adjustment
Designed for use with OE upper mounts

SPECIFICATIONS
Front spring rate: 7 kgf/mm (69 N/mm)
Rear spring rate: 9 kgf/mm (88 N/mm)

EDFC COMPATIBILITY
Compatible EDFC motor kits: EDK05-12120, EDK05-10120
EDFC controller and any required accessories are sold separately

APPLICATION NOTES
3dr/4cyl.
Front: lh has left-hand threads.
Be sure to tighten in the correct (anticlockwise) direction.
(spring seat and lock).
