GENERAL FEATURES Twin-tube construction Adjustable damping force Separate ride height and spring preload adjustment Hydraulic bump stop system (HBS)
FRONT FEATURES Spring rate: 59 N/mm Height adjustable
REAR FEATURES Spring rate: 59 N/mm Height adjustable

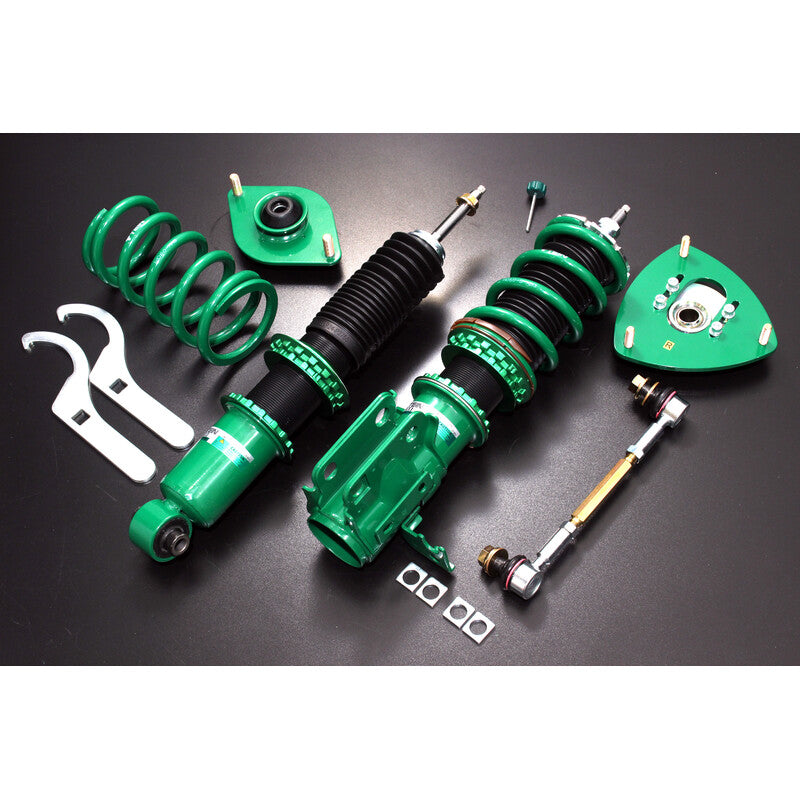

PURCHASED PARTS PACKAGE Coilover suspension kit with front and rear springs
RECOMMENDED RIDE HEIGHT SETTINGS Changes relative to original ride height, in mm. Settings depend on the vehicle version.
Subaru BRZ (ZC6) 2012-2021 Front: standard setting -30 mm; recommended range -40 to -20 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Subaru BRZ (ZD8) 2021+ Front: standard setting -30 mm; recommended range -40 to -20 mm Rear: standard setting -30 mm; recommended range -40 to -20 mm
Subaru BRZ (ZD8) 2022+ Front: standard setting -25 mm; recommended range -35 to -15 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Toyota GT86 / 86 (ZN6) 2012-2016 Front: standard setting -25 mm; recommended range -35 to -15 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Toyota GT86 / 86 (ZN6) 2016-2021 Front: standard setting -30 mm; recommended range -40 to -20 mm Rear: standard setting -30 mm; recommended range -40 to -20 mm
Toyota GR86 (ZN8) 2021+ Front: standard setting -30 mm; recommended range -40 to -20 mm Rear: standard setting -30 mm; recommended range -40 to -20 mm
Toyota GR86 (ZN8) 2022+ Front: standard setting -25 mm; recommended range -35 to -15 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
ADDITIONAL OPTIONS EDFC motor kit: EDK05-12140 EDFC controller and any required accessories are purchased separately. Required parts depend on the vehicle application.
