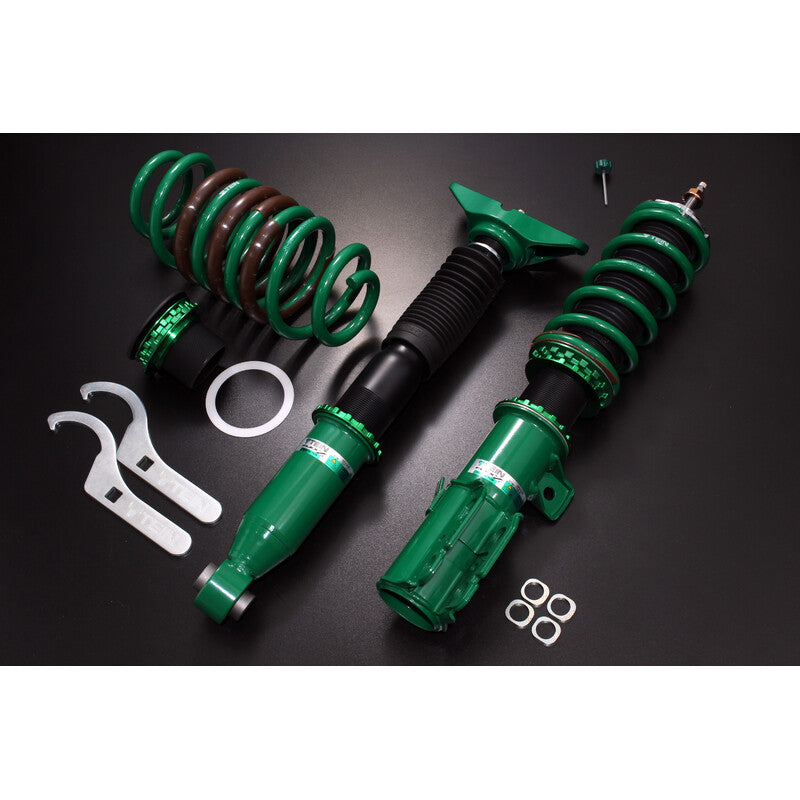

Tein Flex Z Coilover Suspension Toyota GR Yaris (GXPA16) VSTN0-C1AA3

VSTN0-C1AA3

FITMENT
Toyota GR Yaris (GXPA16) 2020.09-2024.03; RZ HIGH PERFORMANCE; AWD
Toyota GR Yaris (GXPA16) 2020.09-2024.03; RC; AWD
Toyota GR Yaris (GXPA16) 2020.09-2024.03; RZ; AWD
Toyota GR Yaris (XPA1G) 2020-2024.03; AWD

GENERAL FEATURES
Twin-tube construction
Adjustable damping force
Separate ride height and spring preload adjustment

FRONT FEATURES
Spring rate: 59 N/mm
Height adjustable

REAR FEATURES
Spring rate: 69 N/mm
Height adjustable

PURCHASED PARTS PACKAGE
Coilover suspension kit with front and rear springs

RECOMMENDED RIDE HEIGHT SETTINGS
Changes relative to original ride height, in mm. Settings depend on the vehicle version.

Toyota GR Yaris RZ / RZ High Performance (GXPA16) 2020-2024
Front: standard setting -25 mm; recommended range -35 to -15 mm
Rear: standard setting -20 mm; recommended range -30 to -10 mm

Toyota GR Yaris RC (GXPA16) 2020-2024
Front: standard setting -30 mm; recommended range -40 to -20 mm
Rear: standard setting -25 mm; recommended range -35 to -15 mm

ADDITIONAL OPTIONS
EDFC motor kit: EDK05-12120
EDFC controller and any required accessories are purchased separately. Required parts depend on the vehicle application.
