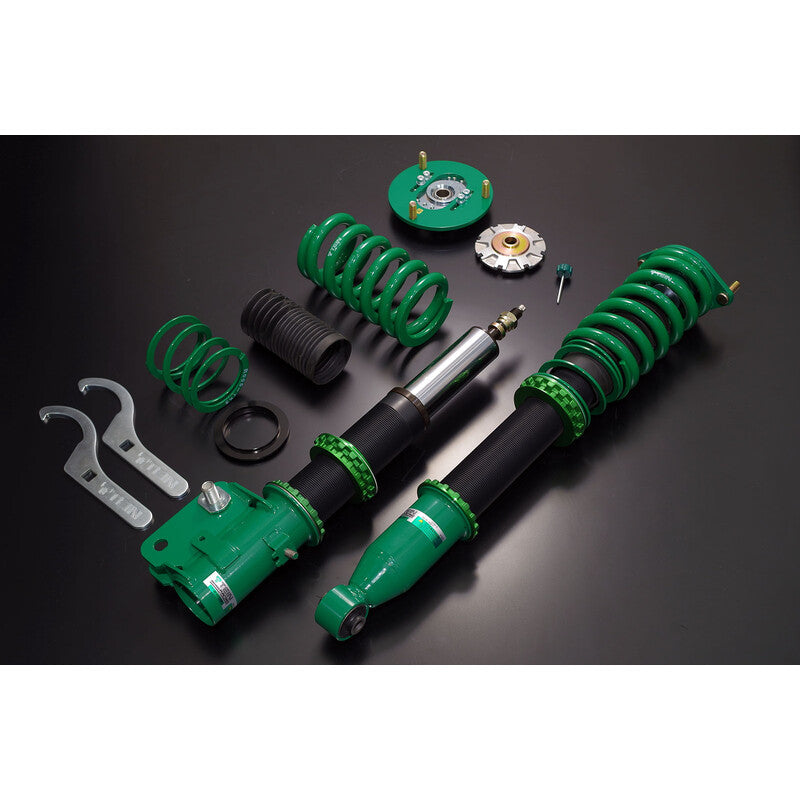

Tein Flex Z Coilover Suspension Subaru WRX STI (VAB, VAF) VSSB2-C1SA4
1 164 €
/ per
Tax included.
Product description
VSSB2-C1SA4
FITMENT Subaru WRX STI (VAB/VAF) 2014-2021
GENERAL FEATURES Twin-tube construction Adjustable damping force Separate ride height and spring preload adjustment
FRONT FEATURES Spring rate: 78 N/mm Height adjustable
REAR FEATURES Spring rate: 69 N/mm Height adjustable
PURCHASED PARTS PACKAGE Coilover suspension kit with front and rear springs
RECOMMENDED RIDE HEIGHT SETTINGS Changes relative to original ride height, in mm. Settings depend on the vehicle version.
Subaru WRX STI (VAB) 2014.08-2020.04; STI; AWD Front: standard setting -35 mm; recommended range -45 to -25 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Subaru WRX STI (VAB) 2014.08-2020.04; STI TYPE-S; AWD Front: standard setting -35 mm; recommended range -45 to -25 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Subaru WRX STI (VAF) 2015-2021; STI; AWD Front: standard setting -30 mm; recommended range -40 to -20 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
Subaru WRX STI (VAF) 2014-2020; STI; AWD Front: standard setting -35 mm; recommended range -45 to -25 mm Rear: standard setting -25 mm; recommended range -35 to -15 mm
ADDITIONAL OPTIONS EDFC motor kit: EDK05-12140 EDFC controller and any required accessories are purchased separately. Required parts depend on the vehicle application.
