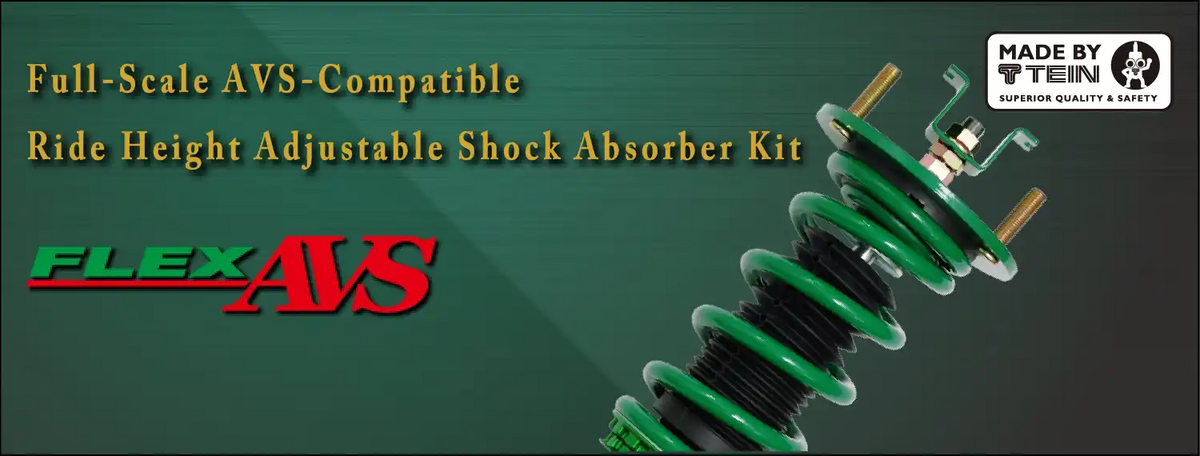

Tein Flex AVS Coilover Suspension Toyota Crown Athlete (ARS210) VSC76-J1SS3

VSC76-J1SS3

FITMENT
Lexus GS300 (GRS190L) 2006
Lexus GS350 (GRS191) 2005–2012
Lexus GS350 (GRS191L) 2007–2012
Lexus GS430 (UZS190) 2005–2007
Lexus GS430 (UZS190L) 2006–2007
Lexus GS450H (GWS191) 2006–2012
Lexus GS450H (GWS191L) 2007–2011
Toyota Crown Athlete (ARS210) 2015–2018
Toyota Crown Athlete (GRS180) 2003–2008
Toyota Crown Athlete (GRS182) 2003–2005
Toyota Crown Athlete (GRS184) 2005–2008
Toyota Crown Athlete (GRS200) 2008–2012
Toyota Crown Athlete (GRS204) 2008–2012
Toyota Crown Athlete (GRS210) 2012–2015
Toyota Crown Athlete (GRS214) 2012–2018
Toyota Crown Athlete Hybrid (AWS210) 2012–2018
Toyota Crown Hybrid (GWS204) 2008–2012
Toyota Crown Royal (GRS200) 2008–2012
Toyota Crown Royal (GRS202) 2008–2012

PRODUCT INFORMATION
Full-length ride-height adjustment
Designed to retain compatible Toyota/Lexus AVS operation
Twin-tube construction
Hydraulic Bump Stopper on applicable models

SPECIFICATIONS
Front spring rate: 10 kgf/mm (98 N/mm)
Rear spring rate: 8 kgf/mm (78 N/mm)

APPLICATION NOTES
Due to individual differences, inner fender may need to be cut if it interferes with the spring.
Front and rear: not compatible with vehicle without AVS.
Damping force cannot be adjusted manually.
