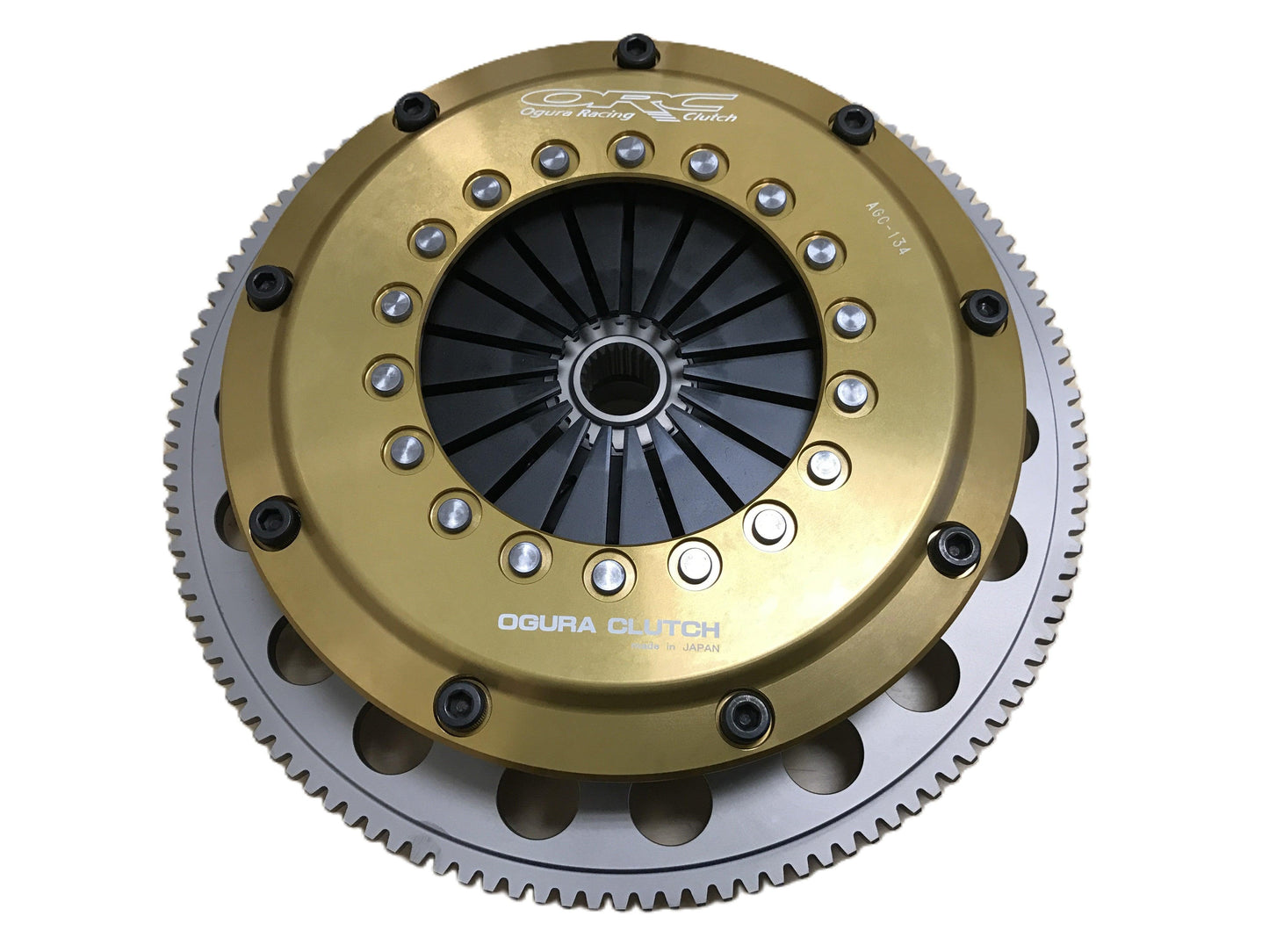

ORC Toyota Mark II / Soarer 409D High Disk Single Metal Clutch Kit - JZX90 JZX100 JZX110 JZZ30 JZA70

PRODUCT NUMBER: ORC-409D-TT0202

FITMENT:

Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Soarer JZZ30 1JZ-GTE (01/1994-07/1996)
Toyota Soarer JZZ30 1JZ-GTE (06/1991-12/1993)
Toyota Soarer JZZ30 1JZ-GTE (08/1996-07/1997)
Toyota Soarer JZZ30 1JZ-GTE (08/1997-03/2001)
Toyota Supra JZA70 1JZ-GTE (08/1990-04/1993)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)

PRODUCT INFO:
System: Push
Damper: Spring
Type: High disk
Number of Discs: Single
Disc Outer Diameter: 225mm
Torque response Nm (kgf/m): 420 (43)

PRODUCT NOTES:
- Sleeve release bearing included.
- Flywheel bolts included.
- Movement Kit included.
- High Disk is a High friction disk which is an option on some 409 clutches. High friction disk transfers more torque and is designed specially for drag racing.

CAUTION: Half clutch stability will be more sever with this disk when compared to a regular disk.

STOCK INFO: Lead time 14 days (available stock), Lead time 40 days (no stock)

Images are for illustration purpose only. Actual product may vary.
