Genuine Öhlins Road & Track replacement part.
SPECIFICATIONS
Part number: 24636-03
Öhlins description: Adjustment nut M52x1.5
CONFIRMED COMPATIBILITY
The manufacturer mounting instructions list this exact part number for:
BMS MR40S1 (BMW M2 (F87), M3 (F80) and M4 (F82)): rear assembly.
BMS MI40S1 (BMW M3 (E90, E92) and 1M (E82)): front and rear assembly.
ORDERING AND INSTALLATION
Match this exact part number with the parts list in the mounting instructions for your Öhlins suspension kit. This component is not a universal fitment.
ADDITIONAL MANUFACTURER-CONFIRMED COMPATIBILITY
The BMS MW00S1 mounting instructions list 24636-03 in the rear assembly for BMW M2 (G87), M3 RWD (G80) and M4 RWD (G82/G83). Match the exact part number and kit revision before ordering. The quantities shown in the complete suspension kit's parts list do not establish the sale-pack quantity of this replacement part.
Öhlins BMS MW00S1 mounting instructions and parts lists
PURCHASED PARTS PACKAGE
One M52×1.5 spring-seat lock ring. The spring seat and damper are separate parts.

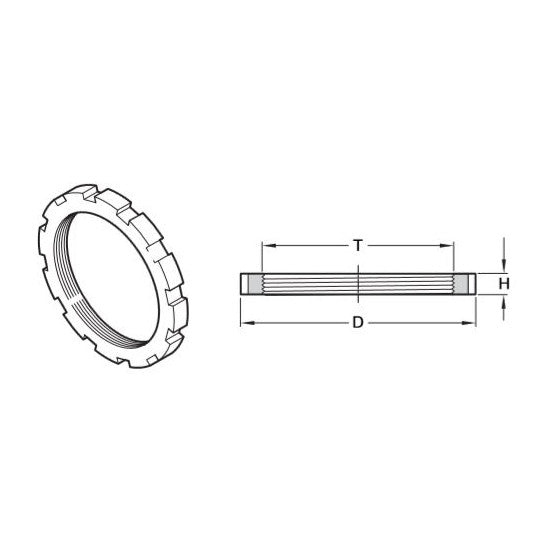

PRODUCT ILLUSTRATION
The technical drawing shows this part style. Match the exact part number to your suspension kit before ordering.
ADDITIONAL MANUFACTURER-CONFIRMED COMPATIBILITY
AUS MU00 (Audi B9 A4/A5, S4/S5 and RS4/RS5): rear assembly.
These applications refer to the Öhlins kit identified in the cited manual. Match the exact kit revision and part number before ordering. Kit parts-list quantities do not specify the quantity supplied when this replacement component is purchased separately.
Öhlins AUS MU00 mounting instructions (MI_AUS MU00_0, issued 2021-01-29)
ADDITIONAL MANUFACTURER-LISTED COMPATIBILITY
FOS MS00 (Ford Focus RS Gen3, 2016 onward as printed), rear assembly: listed as lock nut m52 on page 5.
LES MI00 (Lexus IS250 GSE20 / IS350 GSE21), front assembly: listed as lock nut on page 1.
LES MI00 (Lexus IS250 GSE20 / IS350 GSE21), rear assembly: listed as lock nut on page 5.
These references apply to the printed kit revisions. Match the exact part number and kit revision before ordering. Kit parts-list quantities do not specify the quantity sold in this listing.
MANUFACTURER MANUALS
FOS MS00 mounting instructions
LES MI00 mounting instructions
NISSAN AND VAG MANUAL REFERENCES
Öhlins lists part 24636-03 in the following assemblies. These references identify the printed kit and manual revision. Confirm the kit fitted to your vehicle before ordering.
| Kit | Vehicle / platform | Assembly | Listed component | Source |
|---|---|---|---|---|
| VWS MT10 | VAG PQ35 platform | Rear | Lock nut | Manufacturer manual, page 5 |
| VWS MU21 | VAG MQB platform | Rear | Lock nut | Manufacturer manual, page 5 |
The quantities in a suspension-kit parts list do not define the sale quantity of this spare part. This listing does not include the complete suspension assembly or other components shown in the kit manual.
Platform references are not a claim that this part fits every vehicle on that platform. The VWS MT10 and VWS MU21 manuals specify 55 mm front uprights for their complete kits. Check the exact kit application and current manual.
AUDI AND FORD MANUAL REFERENCES
Öhlins lists part 24636-03 in the following assemblies. These references identify the printed kit and manual revision. Confirm the kit fitted to your vehicle before ordering.
| Kit | Vehicle / platform | Assembly | Listed component | Source |
|---|---|---|---|---|
| AUS MS00 | Audi B8 A4/A5, S4/S5 and RS4/RS5 | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| FOS MR00 | Ford Mustang GT and EcoBoost S550 | Rear | Lock ring | Manufacturer manual, page 5 |
The quantities in a suspension-kit parts list do not define the sale quantity of this spare part. This listing does not include the complete suspension assembly or other components shown in the kit manual.
ADDITIONAL ASSEMBLY REFERENCES
Öhlins lists part 24636-03 in the following assemblies. Match the exact suspension-kit code and manual revision before ordering.
| Kit | Vehicle / application | Assembly | Listed component | Source |
|---|---|---|---|---|
| MIS MI10S1 | Mitsubishi Lancer Evolution X (CZ4A) | Rear | Lock nut | Manufacturer manual, page 5 |
| TOS MU00 | Toyota Supra J29/A90 and BMW Z4 G29 | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| HOS MT00 | Honda Civic Type R (FK8) | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| MES MV10S1 | Mercedes-Benz AMG A45 (W177) | Rear | Lock ring M52 | Manufacturer manual, page 5 |
| BMS MI30 | BMW E46 / E46 M3 | Front | Lock ring | Manufacturer manual, page 1 |
| BMS MI30 | BMW E46 / E46 M3 | Rear | Lock ring | Manufacturer manual, page 5 |
| TOS MW00S1 | Toyota GR Yaris (XP210, as identified in the kit manual) | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| TES MX00S1 | Tesla Model 3 / Model Y, only as specified for this suspension kit | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| BMS MU00 | BMW xDrive / RWD: 1 Series F20/F21; 2 Series F22/F23; 3 Series F30/F31/F34/F35/G20/G21; 4 Series F32/F33/F36 | Rear | Lock nut M52 | Manufacturer manual, page 5 |
| BMS MW10S1 | BMW M3 xDrive G80/G81; M4 xDrive G82/G83 | Rear | Lock ring | Manufacturer manual, page 5 |
| BMZ MN01 | BMW 1M (E82) | Front | Lock nut | Manufacturer manual, page 1 |
| BMZ MN01 | BMW 1M (E82) | Rear | Lock ring | Manufacturer manual, page 5 |
These references do not imply universal vehicle fitment. Quantities in a suspension-kit parts list do not define the sale quantity of this spare part. The complete suspension assembly and other separately numbered components are not included.

Öhlins Road & Track Spring Seat Lock Ring M52×1.5 24636-03
