GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

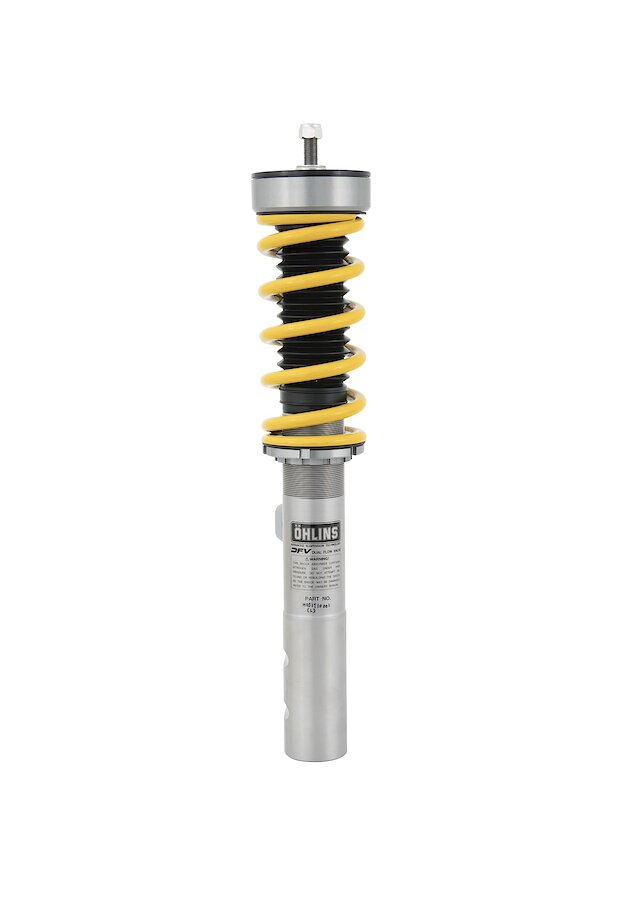

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Approx. 10 - 30 mm lower than standard with recommended setup Spring rate 60 N/mm Use with original top mounts

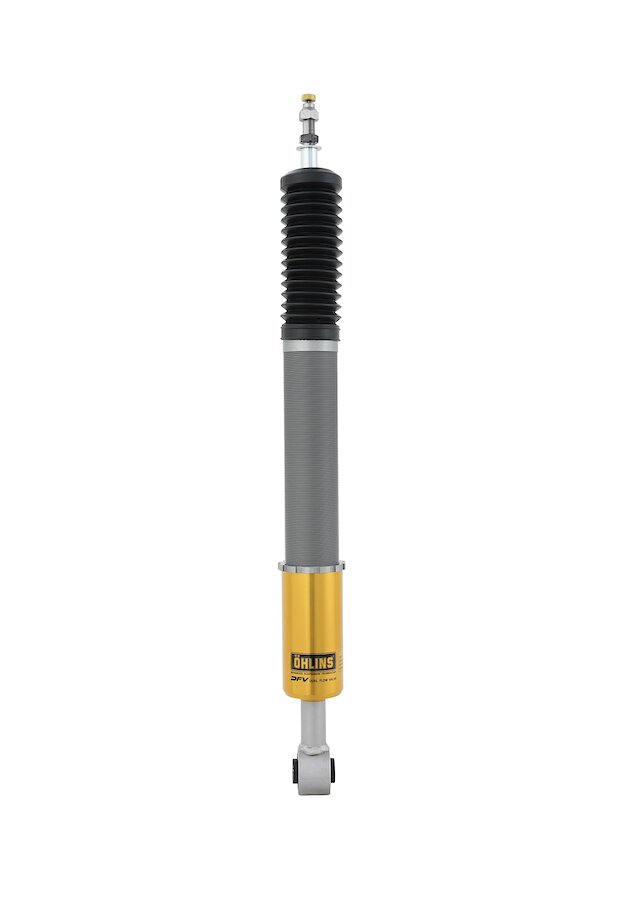

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 10 - 30 mm lower than standard with recommended setup Spring rate 50 N/mm Use with original top mounts

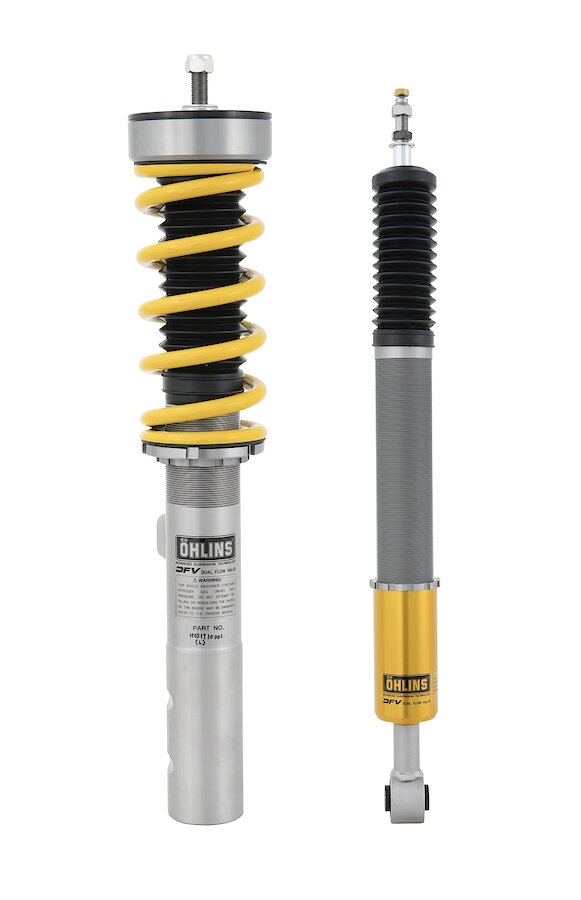

PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

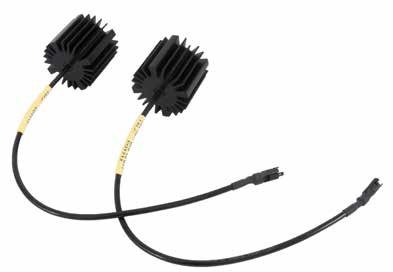

ADDITIONAL OPTIONS To remove DTCs from Adaptive Damper System (ADS) when installing this suspension, Öhlins provides EDC Cancellation kit, part no: 35020-20 (not included)
