Öhlins Road & Track Coilover Suspension Subaru Impreza WRX STI SUS MI10S1

SUS MI10S1

FITMENT
Subaru Impreza WRX STI (GR) 2007-2014
Subaru Impreza WRX STI (GV) 2011-2014
Subaru WRX STI (VA) 2015-2021

GENERAL FEATURES
DFV technology (Dual Flow Valve)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty

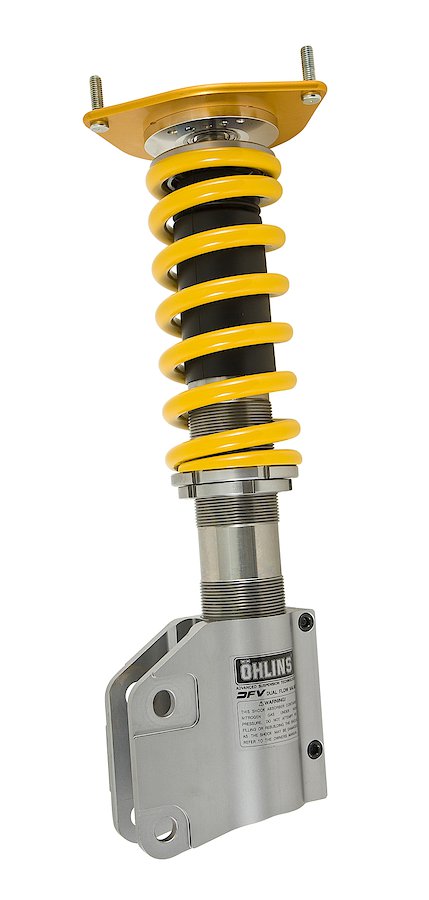

FRONT FEATURES
McPherson strut, upside down
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 20 mm lower than standard with recommended setup models GRB/GRF
Approx. 25 mm lower than standard with recommended setup model VAF
Heigth adjustment range -10/+15 mm
Spring rate 90 N/mm

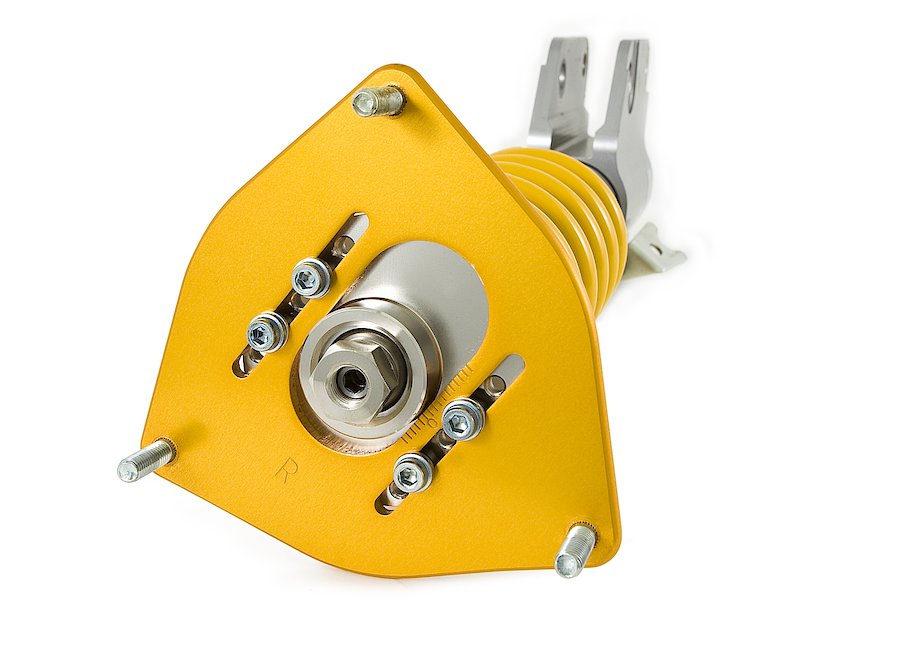

Aluminium top mounts with adjustable camber

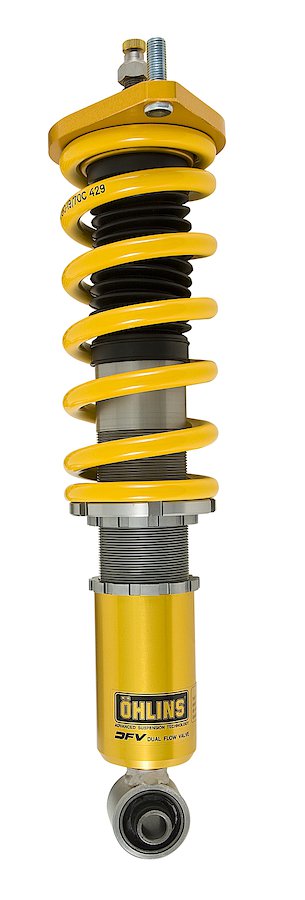

REAR FEATURES
Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 20 mm lower than standard with recommended setup models GRB/GRF
Approx. 15 mm lower than standard with recommended setup model VAF
Heigth adjustment range -15/+15 mm
Spring rate 70 N/mm

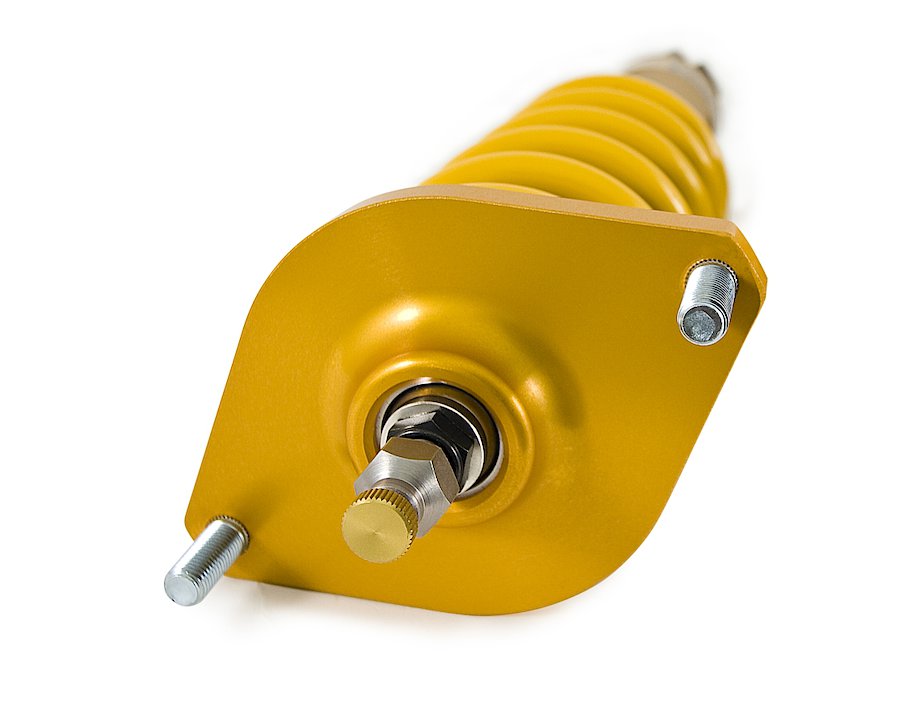

Aluminium top mounts

PURCHASED PARTS PACKAGE
Coil over kit incl. springs and mounting parts
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions
Sticker set

REPLACEMENT DAMPERS
Öhlins Road & Track Spare Dampers Subaru Impreza WRX STI (GR, VA) SUS MI10S1
