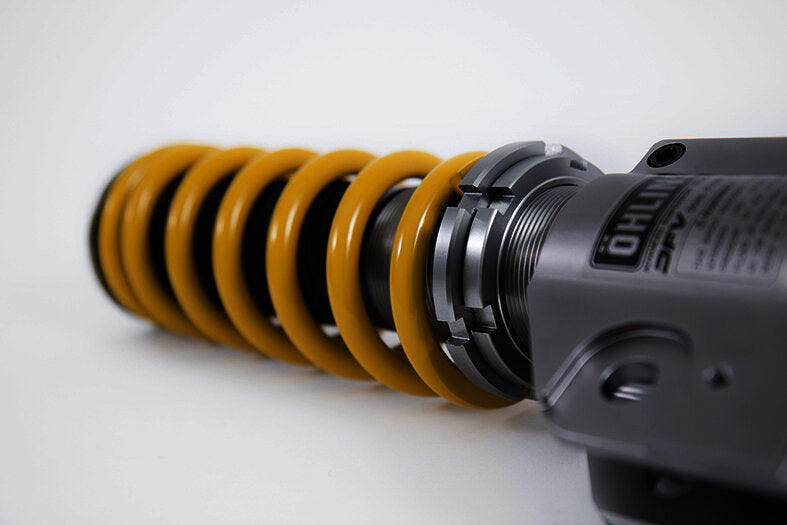

Öhlins Road & Track Coilover Suspension Subaru BRZ / Toyota GT86 / GR86 SUS MP21S2

SUS MP21S2

FITMENT
Scion FR-S (ZN6) 2012-2016
Subaru BRZ (ZC6) 2012-2020
Subaru BRZ (ZD8) 2021-
Toyota 86 (ZN6) 2016-2020
Toyota GR86 (ZN8) 2021-
Toyota GT86 (ZN6, ZN7) 2012-2020

GENERAL FEATURES
DFV technology (Dual Flow Valve)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty

FRONT FEATURES
McPherson strut, upside down
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 20 mm lower than standard
Spring rate 60 N/mm

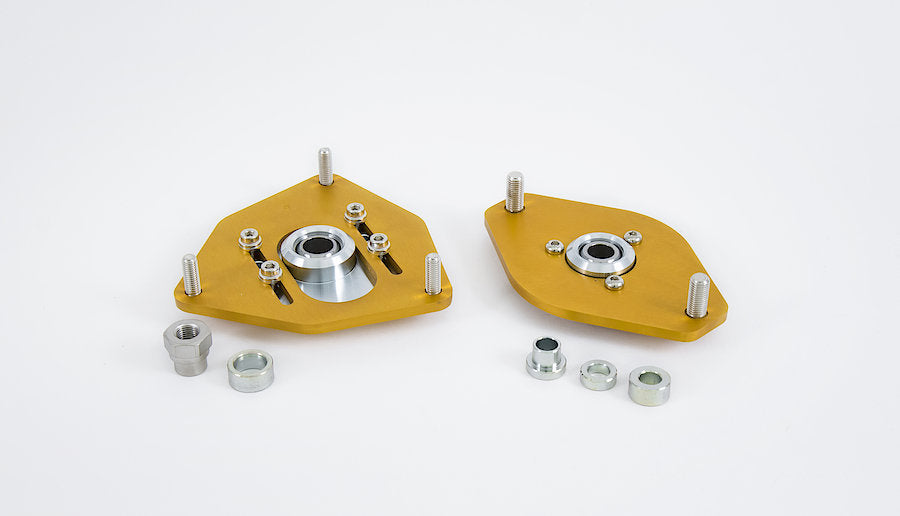

Adjustable aluminum uniball top mounts

REAR FEATURES
Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 20 mm lower than standard
Spring rate 60 N/mm
Aluminum uniball top mounts

PURCHASED PARTS PACKAGE
Coilover suspension kit incl. springs and mounting parts
Top mounts front/rear
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions

NOTES
This kit is ideal for developed for the second generation BRZ and GR86. The springs are stiffer than on the first generation kit, which were also preferred by many for trackday use.
