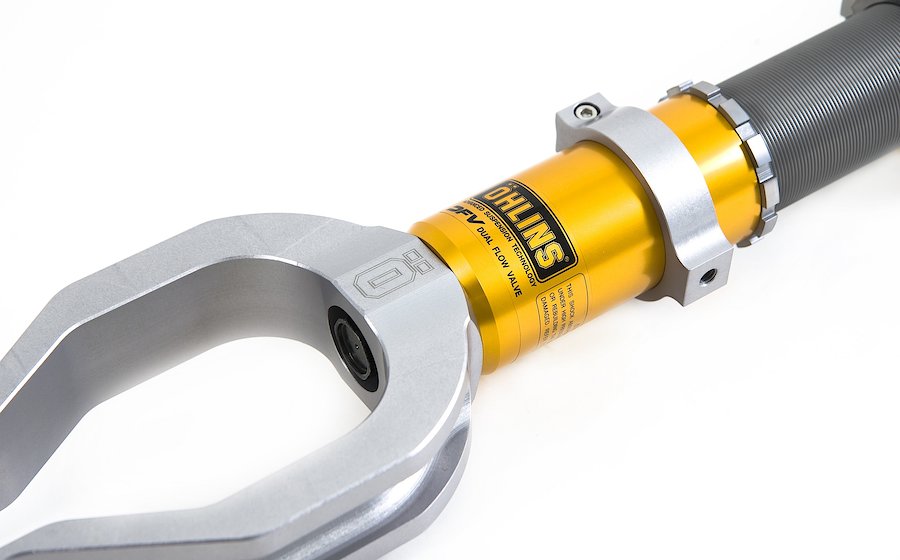

GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

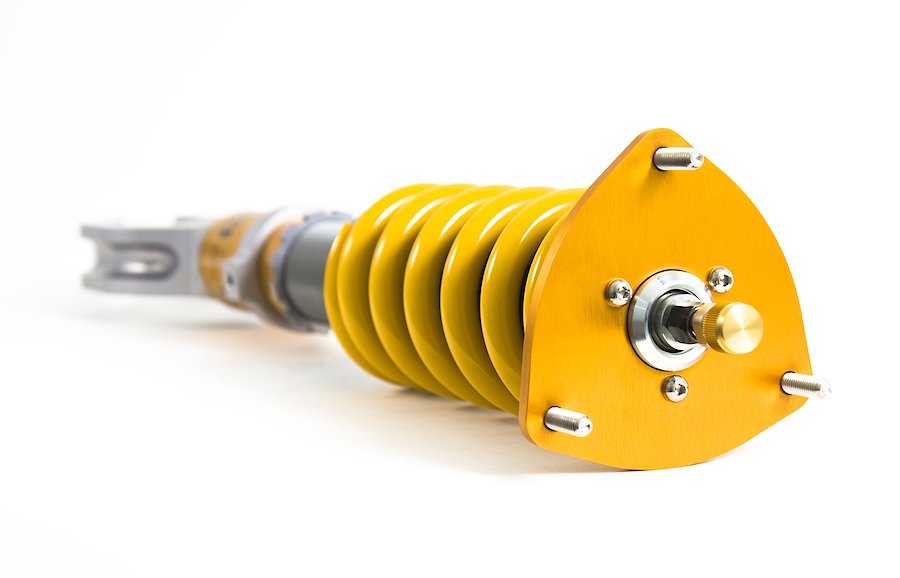

FRONT FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjuster for ride height adjustment Approx. 10 mm lower than standard with recommended setup Spring rate 160 N/mm Aluminum top mounts (not adjustable)
REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjuster for ride height adjustment Approx. 10 mm lower than standard with recommended setup Spring rate 90 N/mm Use with original top mounts

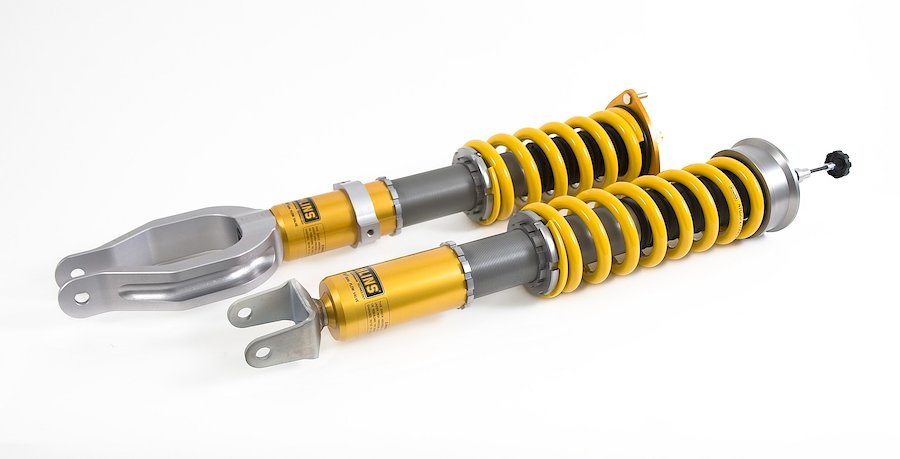

PURCHASED PARTS PACKAGE Coil over kit incl. springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL OPTIONS To remove DTC codes from the ECU, one should install Öhlins EDC Cancellation kit together wih the dampers. Part no for the kit is 35020-06 (not included)
