GENERAL FEATURES Patented DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty Approx. 10 kgs less weight compared to standard suspension

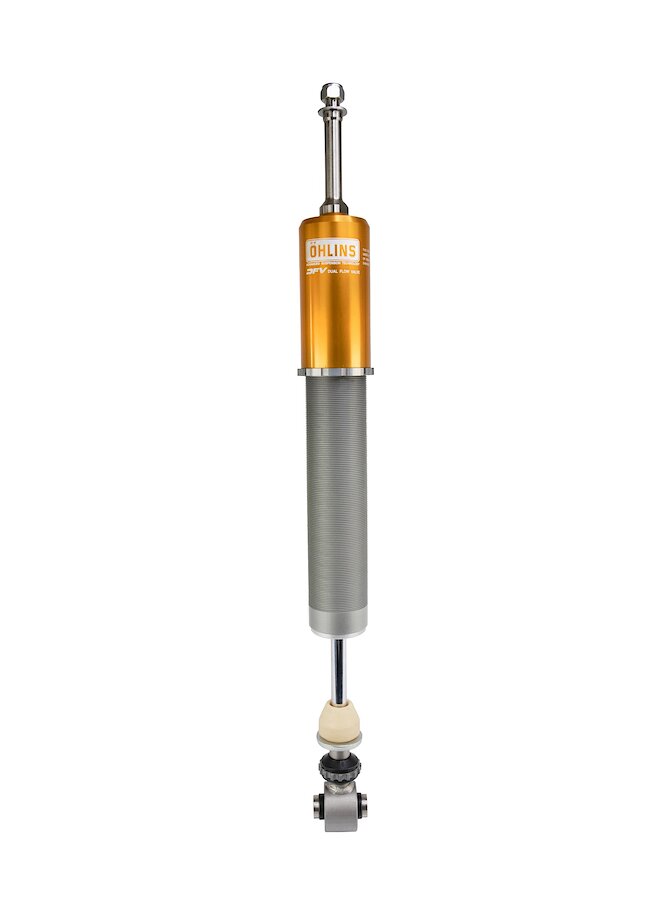

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjustment Approx. 20 mm lower than standard with recommended setup Spring rate 80 N/mm Use with original top mounts

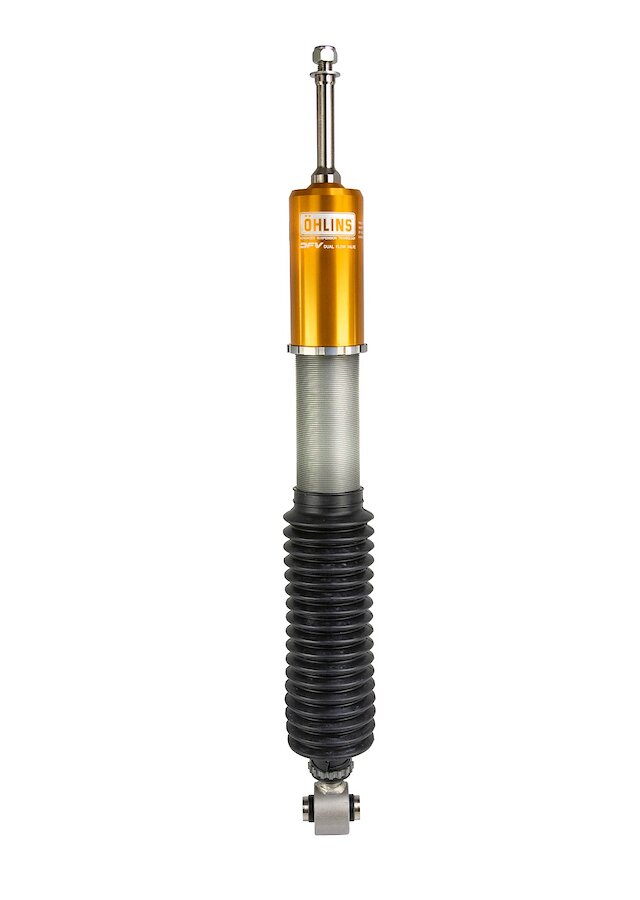

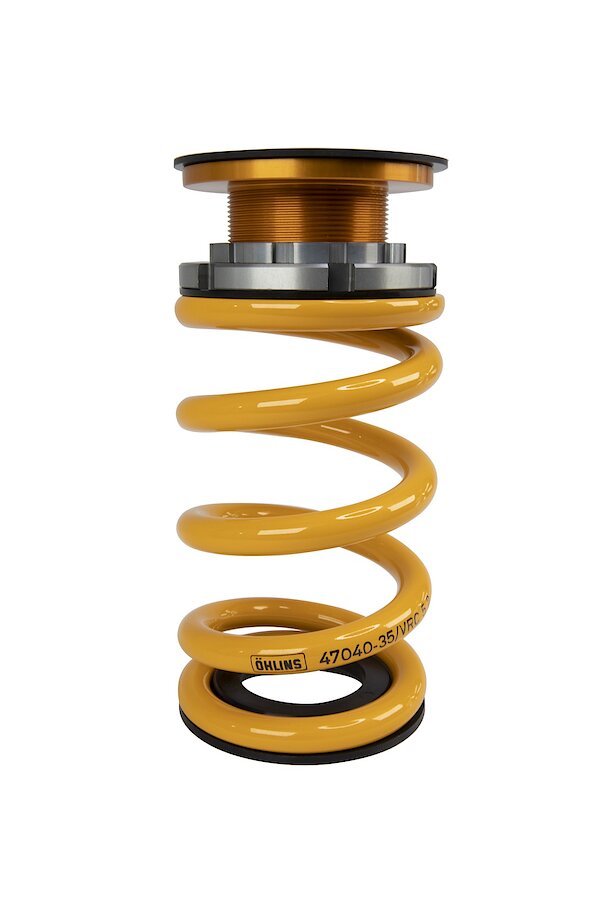

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjustment Approx. 15 mm lower than standard with recommended setup Spring rate 110 N/mm Use with original top mounts

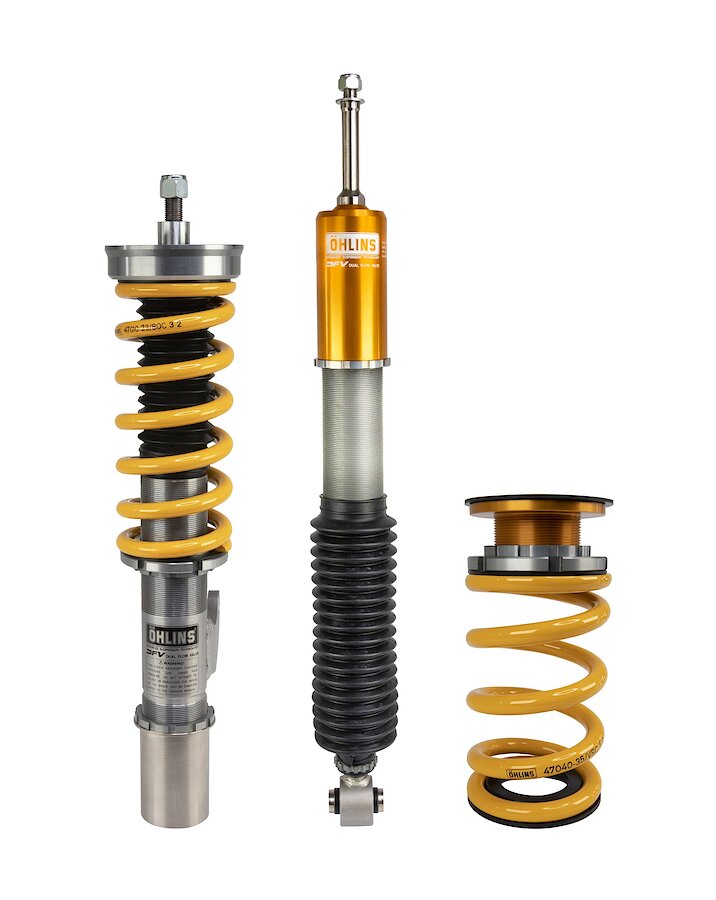

PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instruction Sticker set
NOTES For cars equipped with electronically controlled dampers, Öhlins EDC Cancellation Kit 35020-35 is available to be ordered separately.
