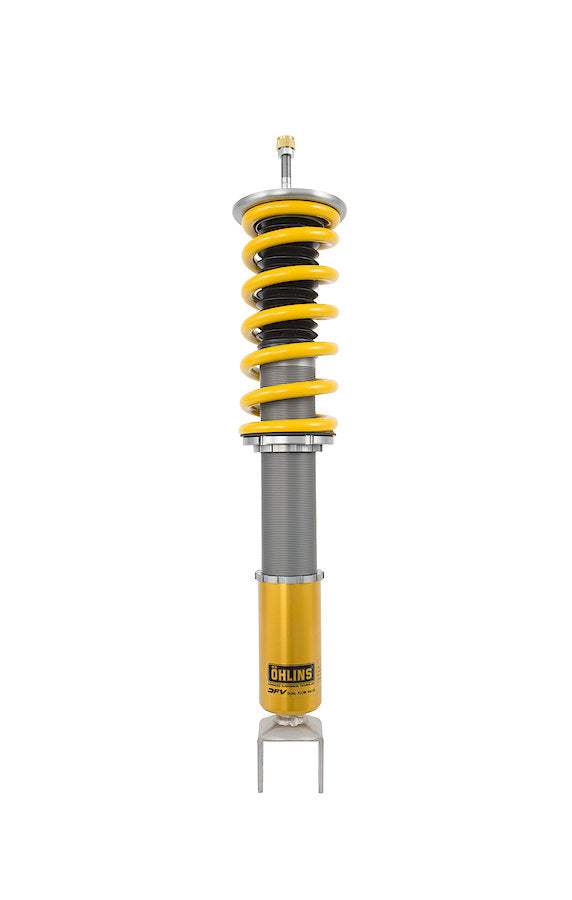

Öhlins Road & Track Coilover Suspension Mazda MX-5 (ND) MAS MP00S1 / MAS MP00S2

MAS MP00S1 / MAS MP00S2

FITMENT
Fiat 124 Spider 2016-2020
Mazda MX-5 (ND, RF) 2015-

GENERAL FEATURES
DFV technology (Dual Flow Valve)
Individual height adjustment
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year warranty

FRONT FEATURES
Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 5 - 30 mm lower than standard with recommended setup
Spring rate 70 N/mm for the comfort setup, 100 N/mm for the trackday version
Use with original top mounts

REAR FEATURES
Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Separate ride height adjustment
Approx. 5 - 30 mm lower than standard with recommended setup
Spring rate 40 N/mm
Use with original top mounts

PURCHASED PARTS PACKAGE
Coil over kit incl. springs
C-Spanner (for spring preload adjustment)
Owners manual and mounting instruction
Sticker set

NOTES
Öhlins offers two different versions for the Fiat 124 Spider - Road and Track setup. The difference between them is that the road version uses softer 70 N/mm springs in the front and the track version uses stiffer 100 N/mm springs in the front.
