FITMENT Hyundai i30 N (PD) 2016- Hyundai i30 N Performance (PD) 2016-
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

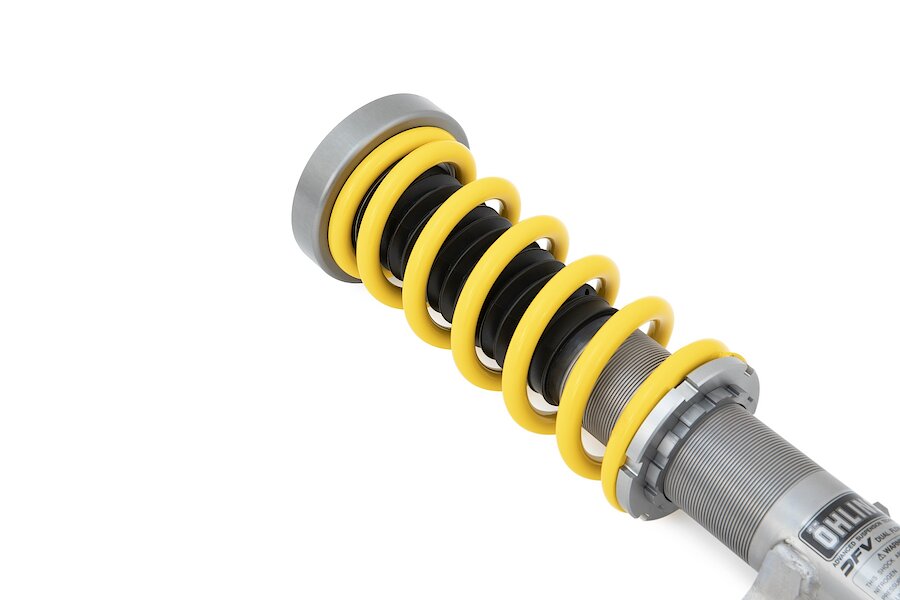

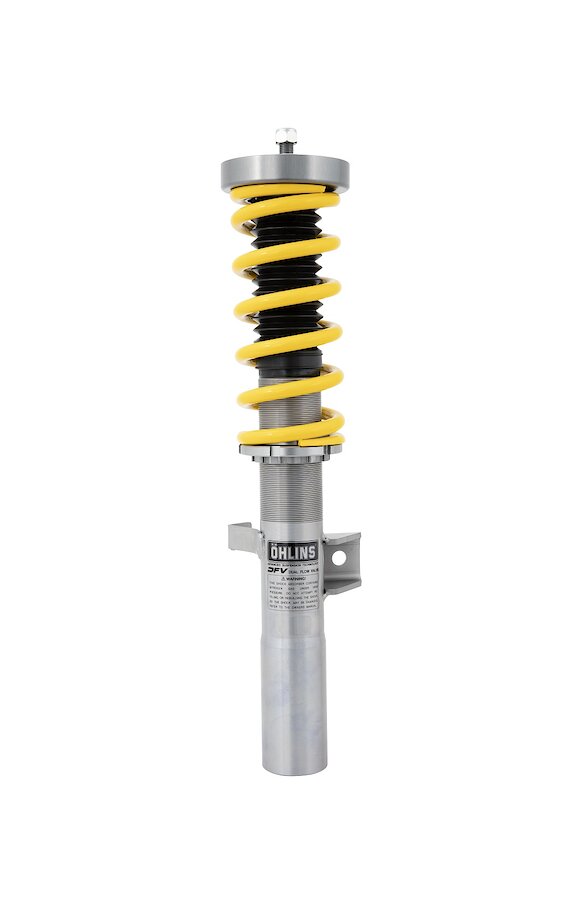

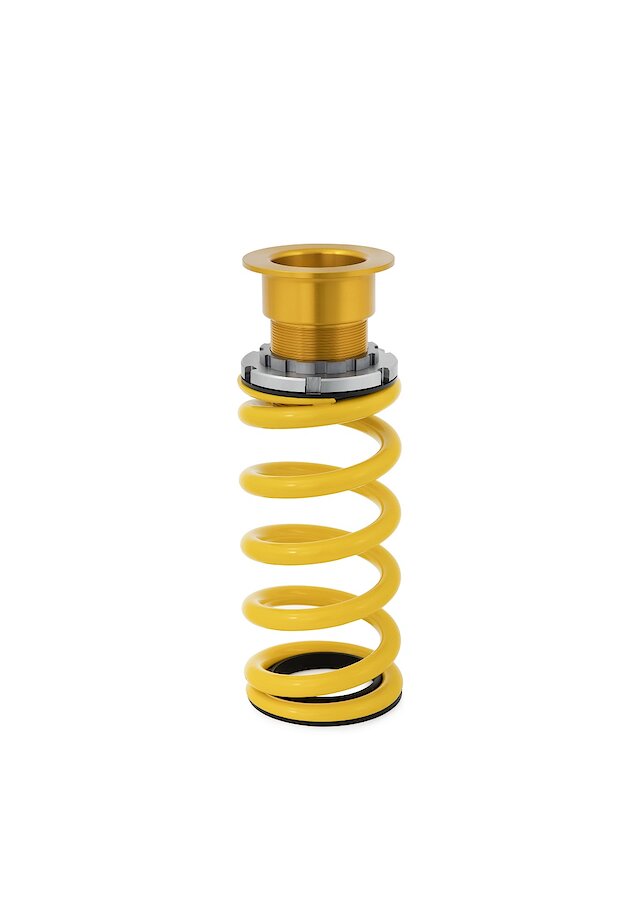

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Approx. 10 - 15 mm lower than standard with recommended setup Use with original top mounts

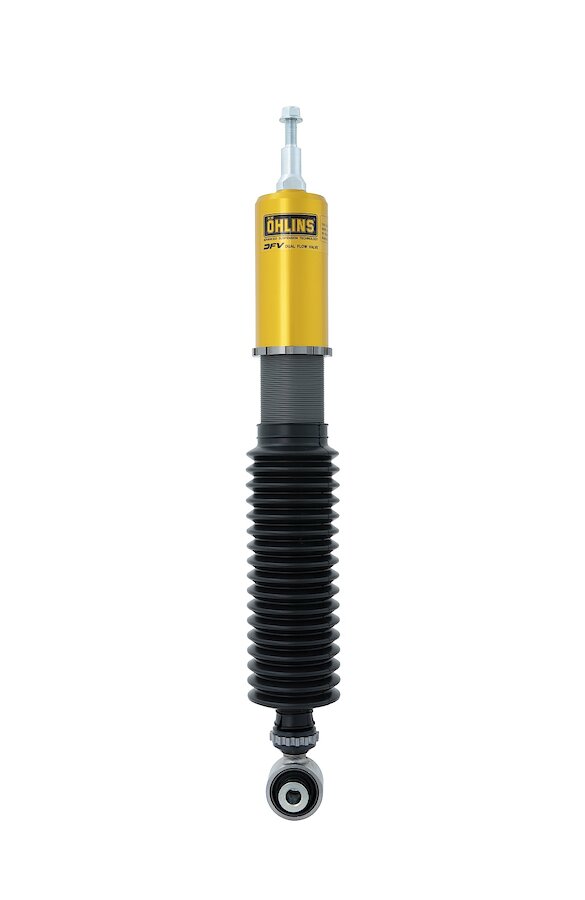

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 10 - 15 mm lower than standard with recommended setup Use with original top mounts
PURCHASED PARTS PACKAGE Shock absorber set C-Spanner (for spring preload adjustment) Owner's manual and mounting instructions Sticker set Springs are not included

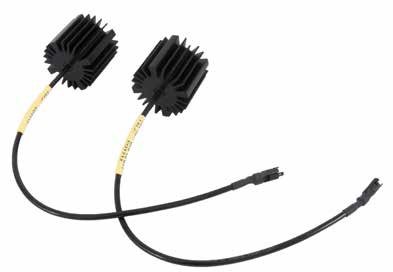

ADDITIONAL OPTIONS To remove DTCs from Performance version cars equipped with electronically adjustable dampers, EDC Cancellation kit from Öhlins is available. The part number is: 35020-26 (not included)

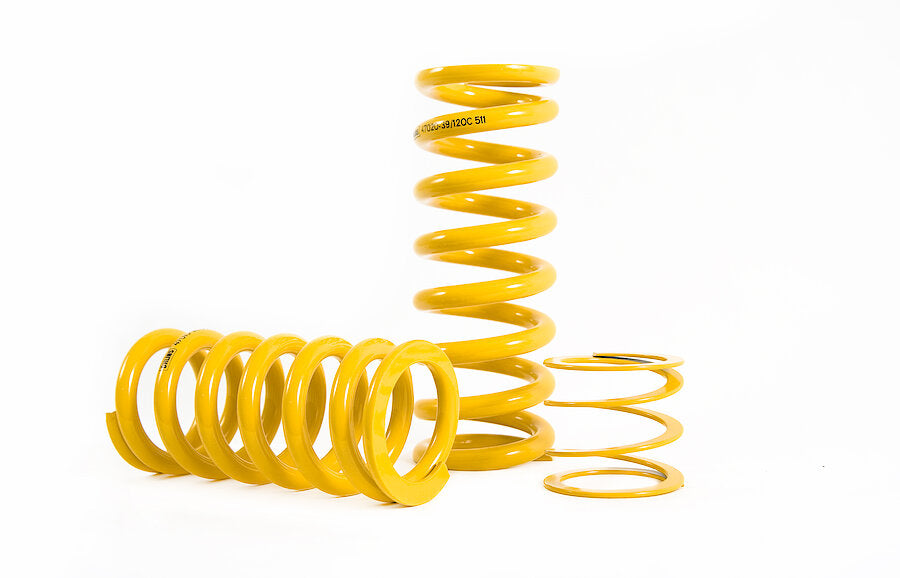

RECOMMENDED SPRINGS Front - 48010-15 Rear - 48000-27
