GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

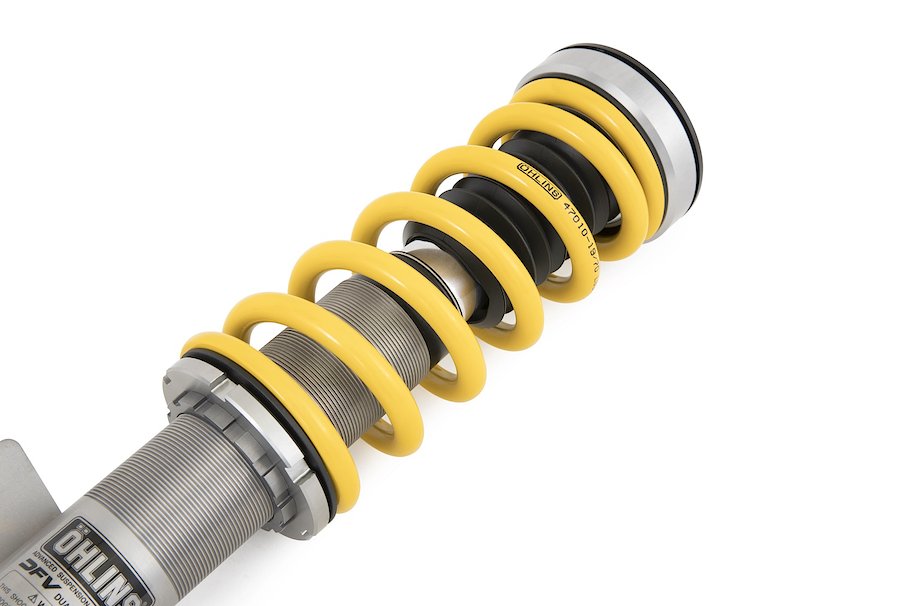

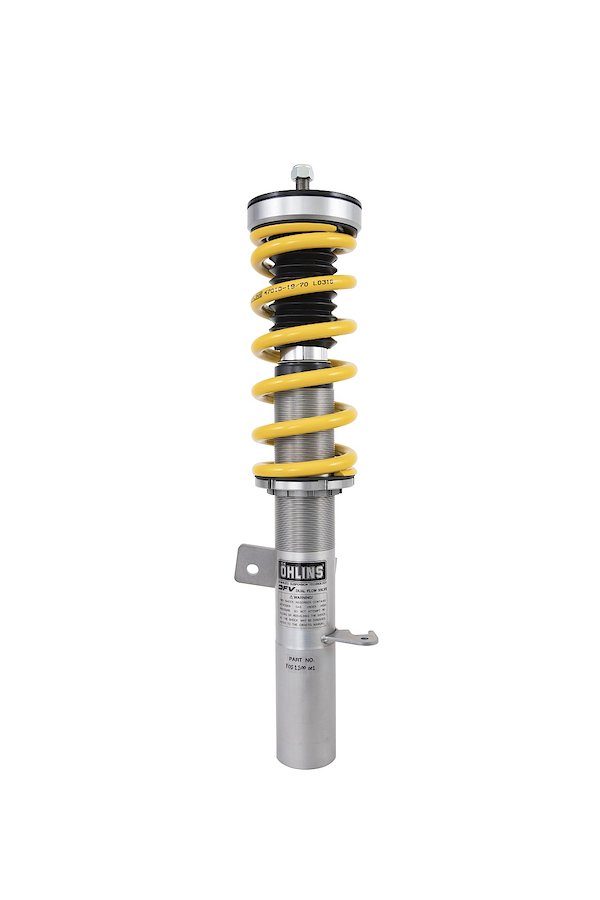

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 80 N/mm Approx. 15 - 25 mm lower than standard with recommended setup Use with original top mounts

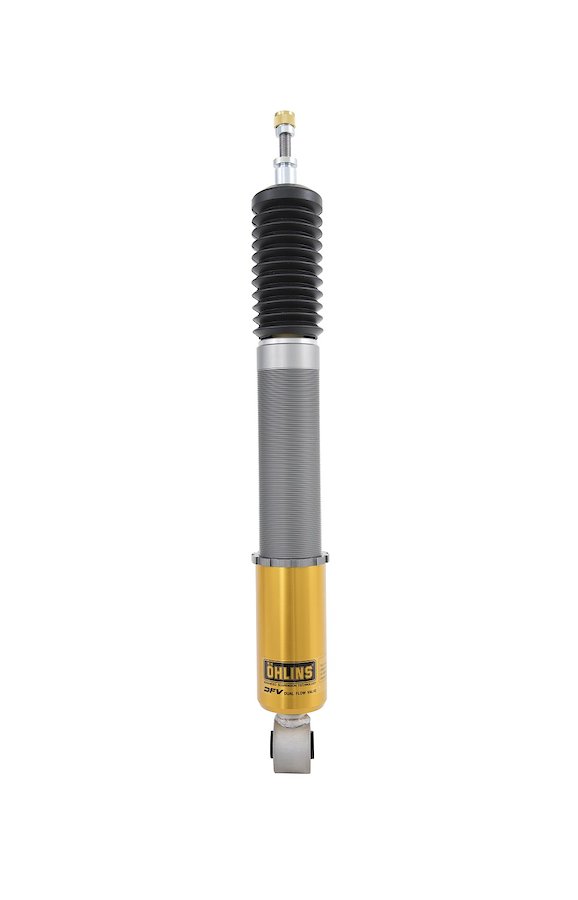

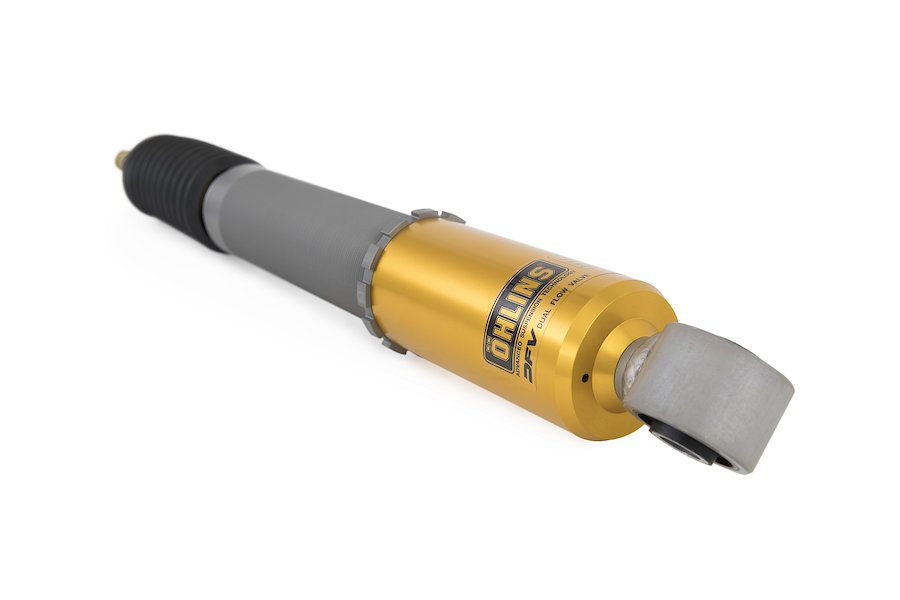

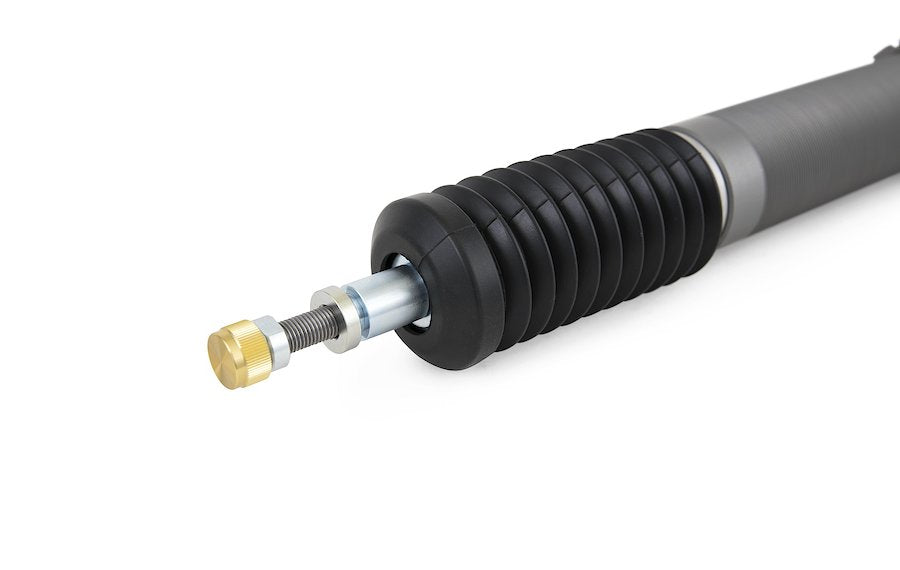

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Spring rate 70 N/mm Approx. 15 - 25 mm lower than standard with recommended setup Use with original top mounts
PURCHASED PARTS PACKAGE Shock absorber set C-Spanner (for spring preload adjustment) Owner's manual and mounting instructions Sticker set Springs are not included

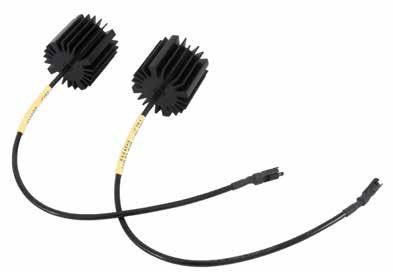

ADDITIONAL OPTIONS To remove DTCs on cars equipped with the Performance Package, Öhlins offers the EDC Cancellation kit, part no: 35020-18 (not included)

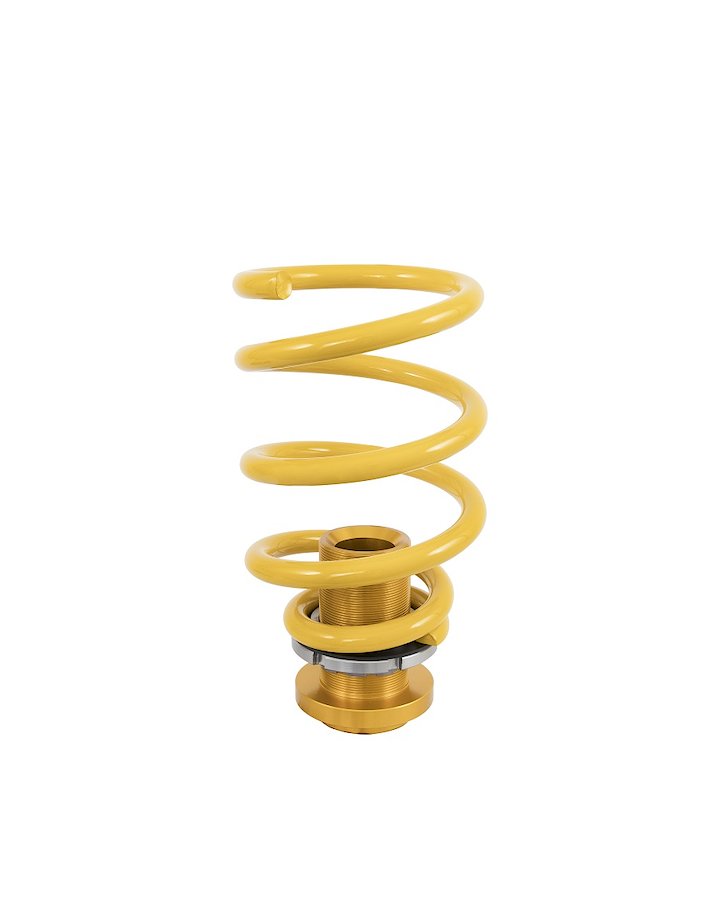

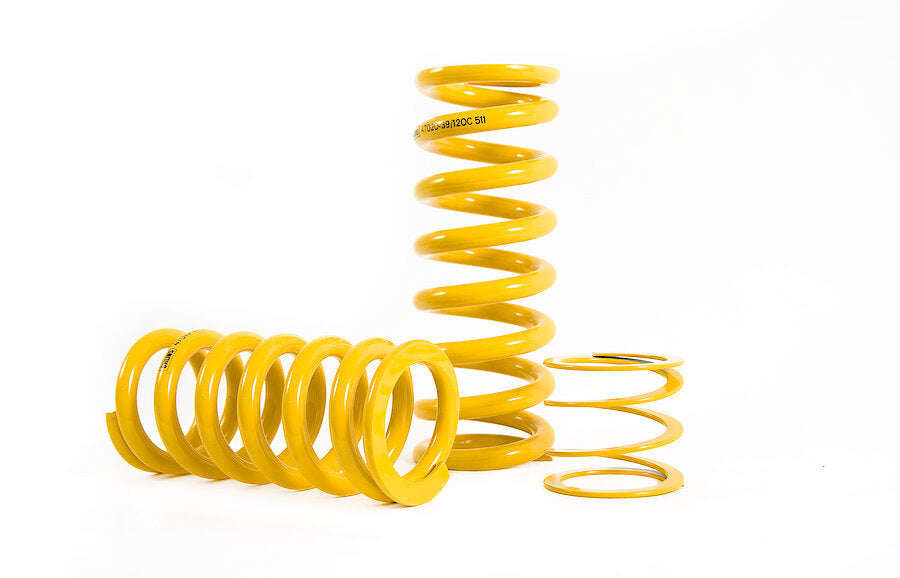

RECOMMENDED SPRINGS Front - 48010-23 Rear - 47040-19
