FITMENT BMW M3 (E90) 2007–2013 BMW M3 (E91) 2007–2013 BMW M3 (E92) 2007–2013 BMW M3 (E93) 2007–2013
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

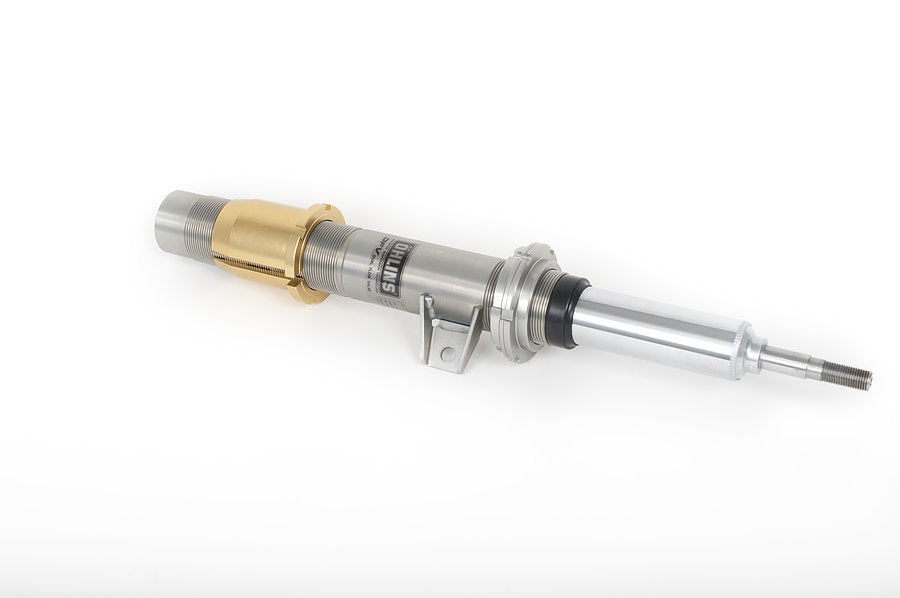

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 20 mm lower than standard with recommended setup models GRB/GRF Approx. 25 mm lower than standard with recommended setup model VAF Heigth adjustment range -10/+15 mm Spring rate 90 N/mm Aluminium top mounts with adjustable camber

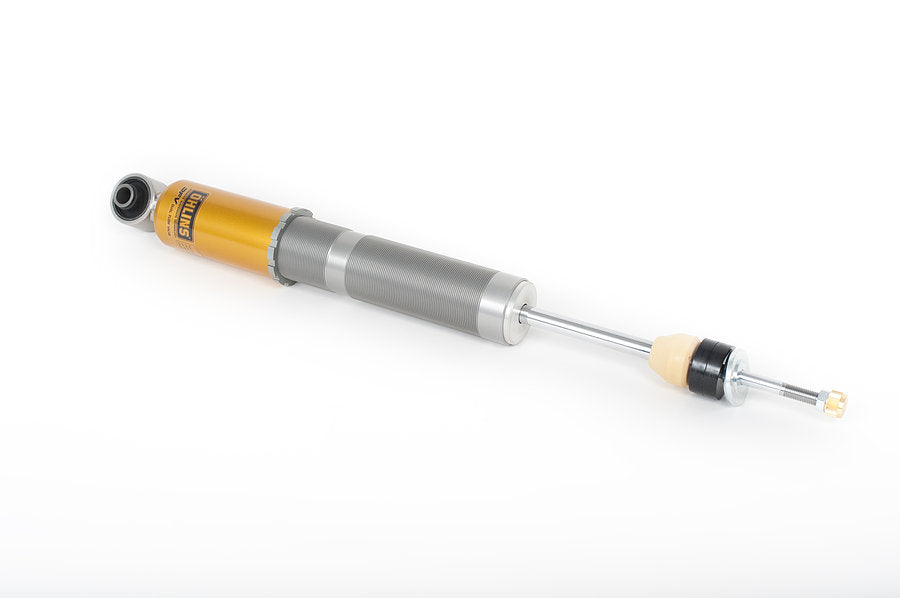

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 20 mm lower than standard with recommended setup models GRB/GRF Approx. 15 mm lower than standard with recommended setup model VAF Heigth adjustment range -15/+15 mm Spring rate 70 N/mm Aluminium top mounts
PURCHASED PARTS PACKAGE Coil over kit incl. springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL OPTIONS To remove DTCs from cars equipped with Electronic Damper Control (EDC) / Adaptive M Suspension, option code S223A, Öhlins is offering EDC Cancellation kit, part nr 35020-02 (not included).
