FITMENT BMW M2 (F87) 2016–2018 BMW M2 Competition (F87) 2018–2021 BMW M2 CS (F87) 2020–2021 BMW M3 (F80) 2014–2018 BMW M4 (F82) 2014–2020 BMW M4 (F83) 2014–2020

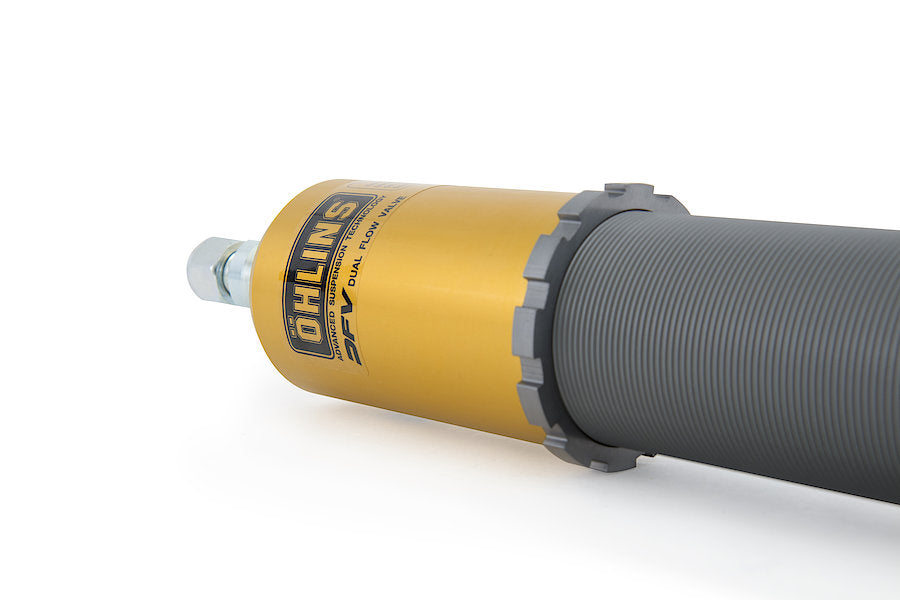

GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

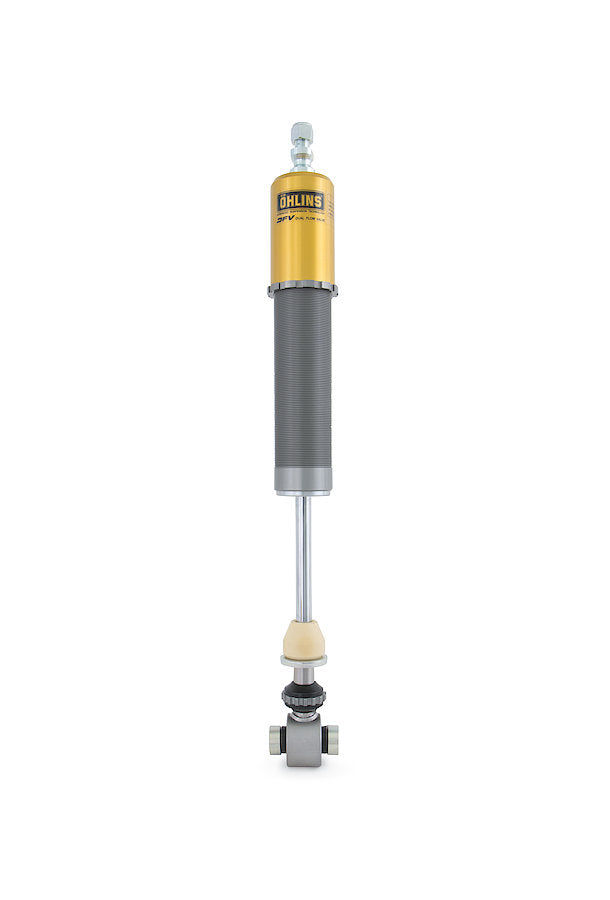

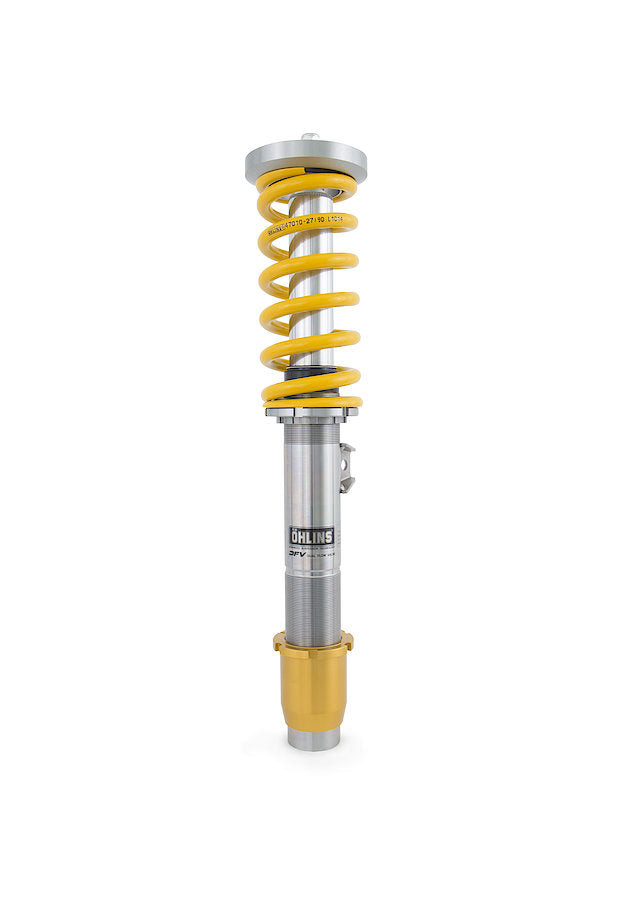

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 0 - 25 mm lower than standard with recommended setup Spring rate 90 N/mm Use with original top mounts

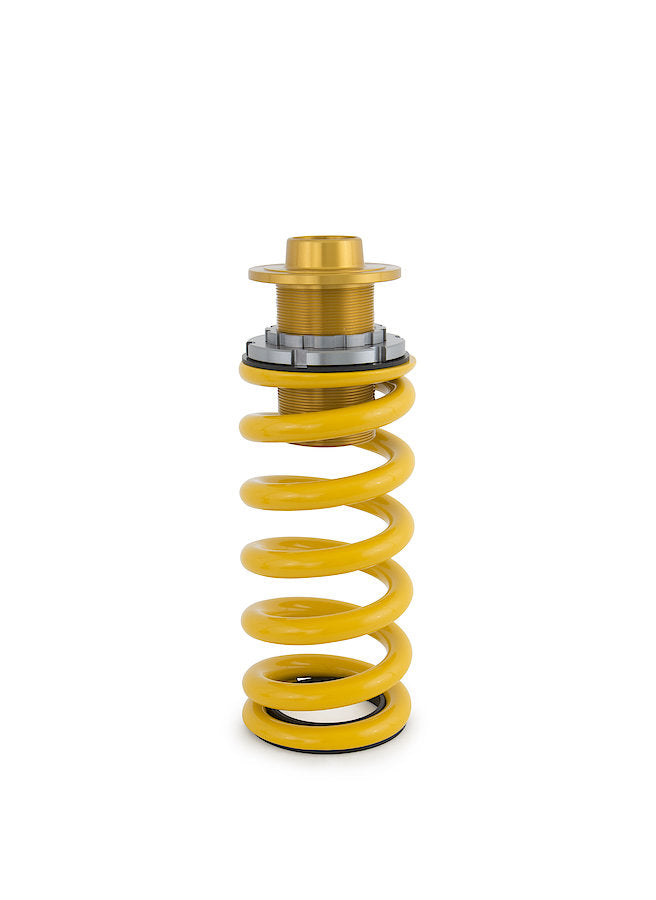

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 0 - 25 mm lower than standard with recommended setup Spring rate 190 N/mm Use with original top mounts
PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

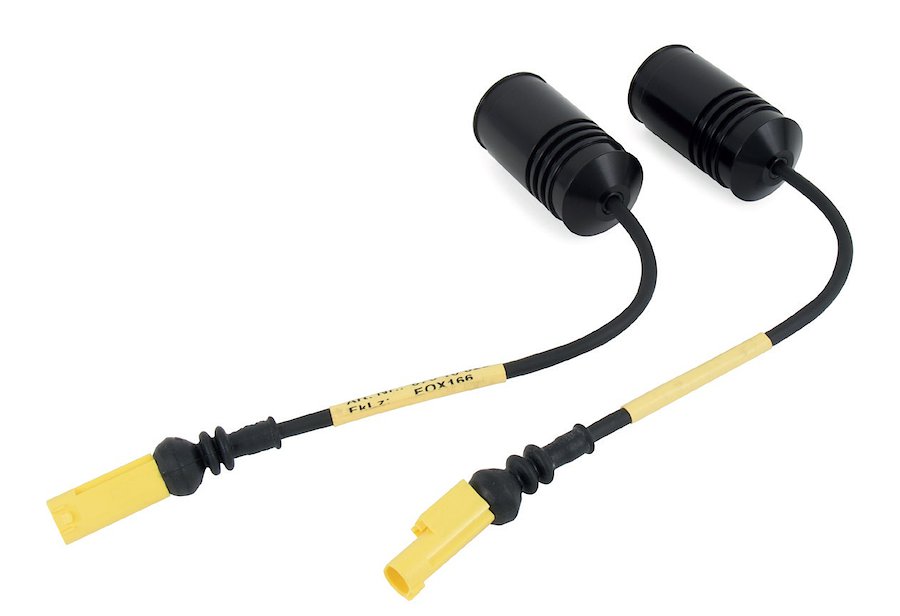

ADDITIONAL OPTIONS To remove DTCs from cars equipped with Electronic Damper Control (EDC) / Adaptive M Suspension, option code S223A, Öhlins is offering EDC Cancellation kit, part nr 35020-02 (not included).
