FITMENT BMW M2 (G87) 2023– BMW M2 CS (G87) 2025– BMW M3 (G80, G81) 2021– BMW M4 (G82, G83) 2021–
GENERAL FEATURES Patented DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty Approx. 10 kgs less weight compared to standard suspension
FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjustment Approx. 25 mm lower than standard with recommended setup Spring rate 100 N/mm Use with original top mounts
REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate length adjustment Approx. 20 mm lower than standard with recommended setup Spring rate 190 N/mm Use with original top mounts
PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

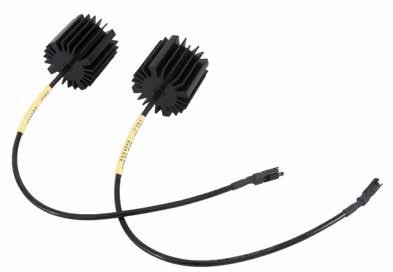

ADDITIONAL OPTIONS To remove DTCs from Electronic Damper Control (EDC) / Adaptive M Suspension, Öhlins is offering EDC Cancellation kit, part nr 35020-33 (not included).
