FITMENT BMW 316i (E46) 1998–2005 BMW 316ti Compact (E46) 2001–2005 BMW 318i (E46) 1998–2005 BMW 318Ci (E46) 1999–2006 BMW 318ti Compact (E46) 2001–2005 BMW 318d (E46) 2001–2005 BMW 320i (E46) 1998–2005 BMW 320Ci (E46) 1999–2006 BMW 320d (E46) 1998–2005 BMW 323i (E46) 1998–2000 BMW 323Ci (E46) 1999–2000 BMW 325i (E46) 2000–2005 BMW 325Ci (E46) 2000–2006 BMW 325ti Compact (E46) 2001–2005 BMW 325d (E46) 2001–2005 BMW 328i (E46) 1998–2000 BMW 328Ci (E46) 1999–2000 BMW 330i (E46) 2000–2005 BMW 330Ci (E46) 2000–2006 BMW 330d (E46) 1999–2005 BMW 330xd (E46) 2000–2005 BMW 330xi (E46) 2001–2005 BMW M3 (E46) 2000–2006 BMW M3 CSL (E46) 2003–2004
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

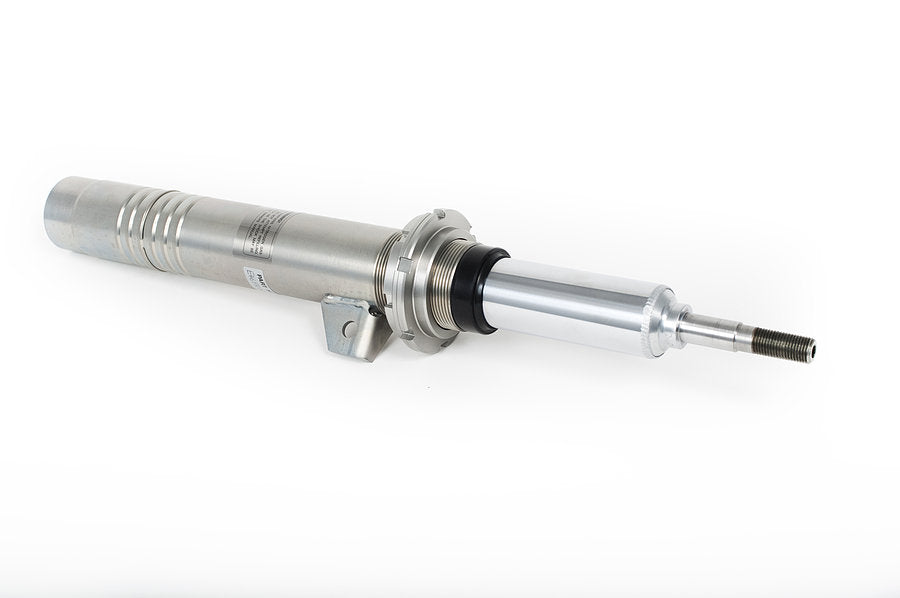

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 15 - 35 mm lower than standard with recommended setup Spring rate 70 N/mm Use with original M3 top mounts

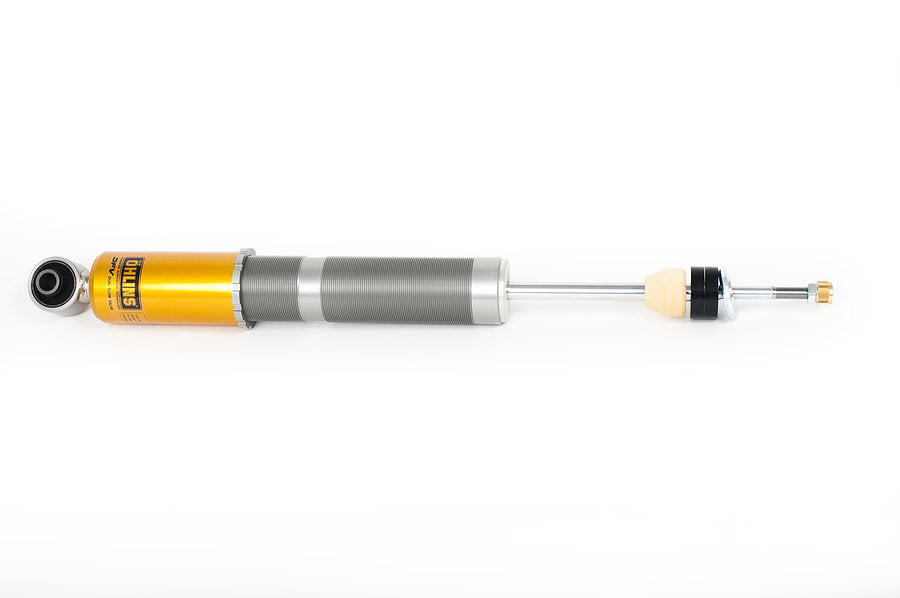

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Separate ride height adjustment Approx. 5 - 30 mm lower than standard with recommended setup Spring rate 110 N/mm Use with original top mounts
PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
NOTES For non M models original BMW M3 top mounts are needed.
