FITMENT This set fits the following 2WD estate and 4WD (including estate) cars: Audi A3 (8V) 2012–2020 Audi A3 (8Y) 2020– Audi S3 (8V) 2013–2020 Audi S3 (8Y) 2020– Audi TT (8S) 2014–2023 Audi TTS (8S) 2015–2023 Audi TT RS (8S) 2016–2023 Seat Leon (5F) 2013–2020 Seat Leon Cupra (5F) 2014–2020 Seat Leon (KL) 2020– Seat Leon Cupra (KL) 2020– Škoda Octavia (5E) 2013–2020 Škoda Octavia (NX) 2020– Volkswagen Golf VII R (5G) 2014–2020 Volkswagen Golf VIII R (CD) 2020– Only four wheel drive and/or two wheel drive estate versions.
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

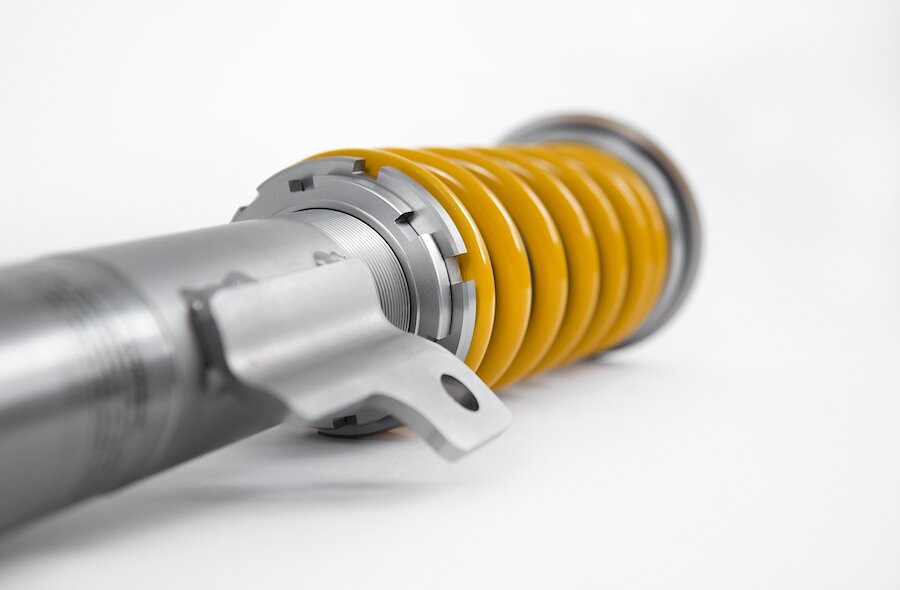

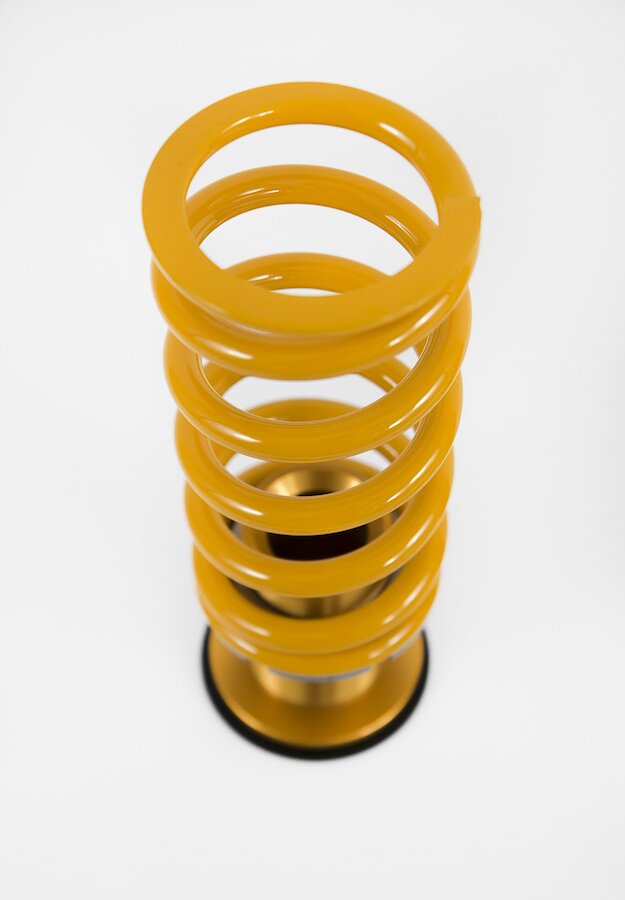

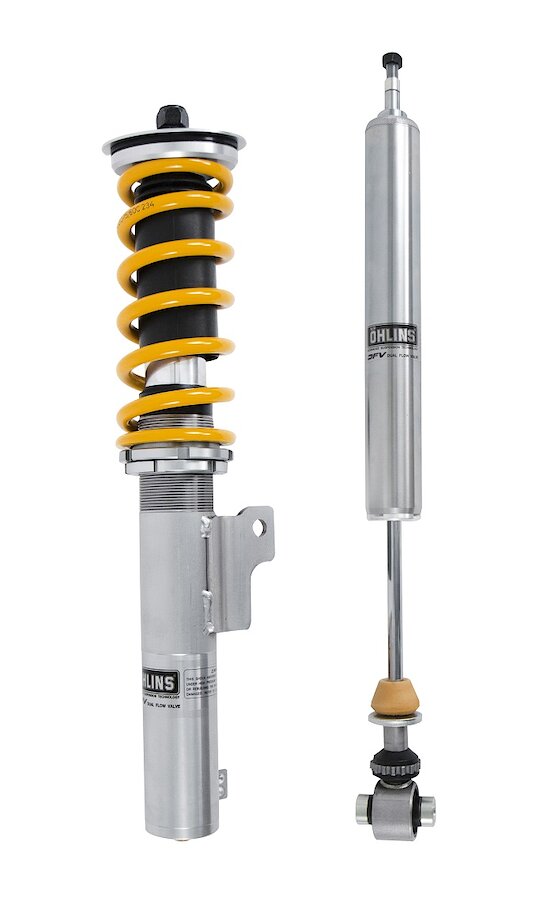

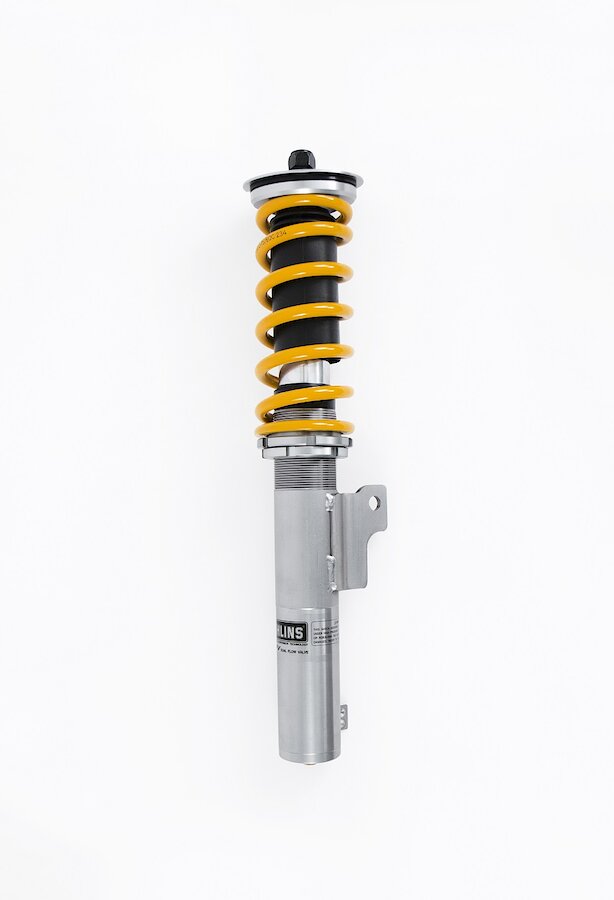

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 70 N/mm Approx. 20 mm lower than standard Use with original top mounts

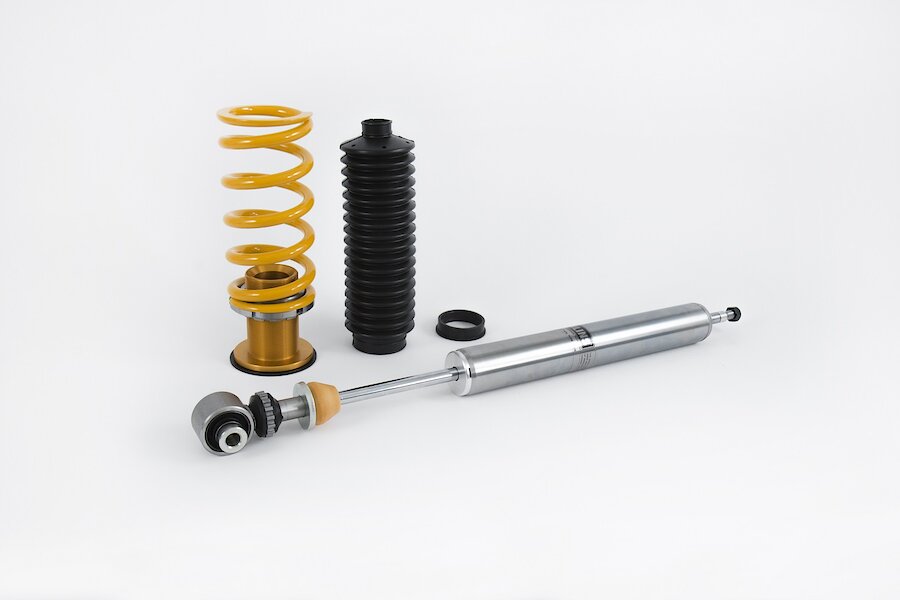

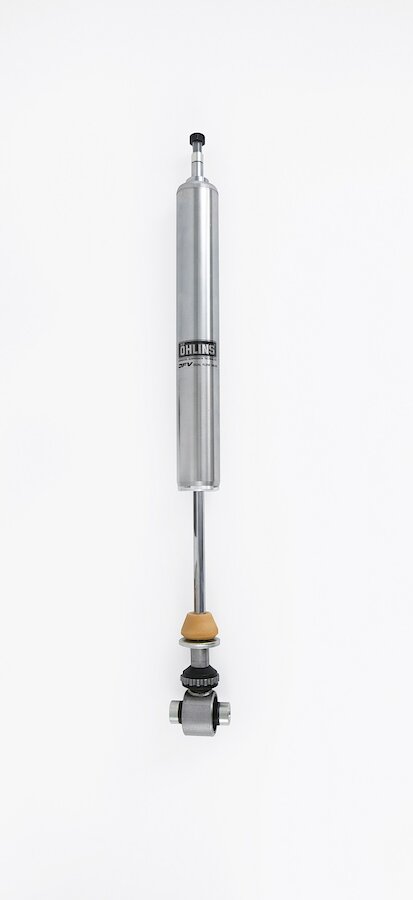

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 80 N/mm Approx. 20 mm lower than standard Use with original top mounts

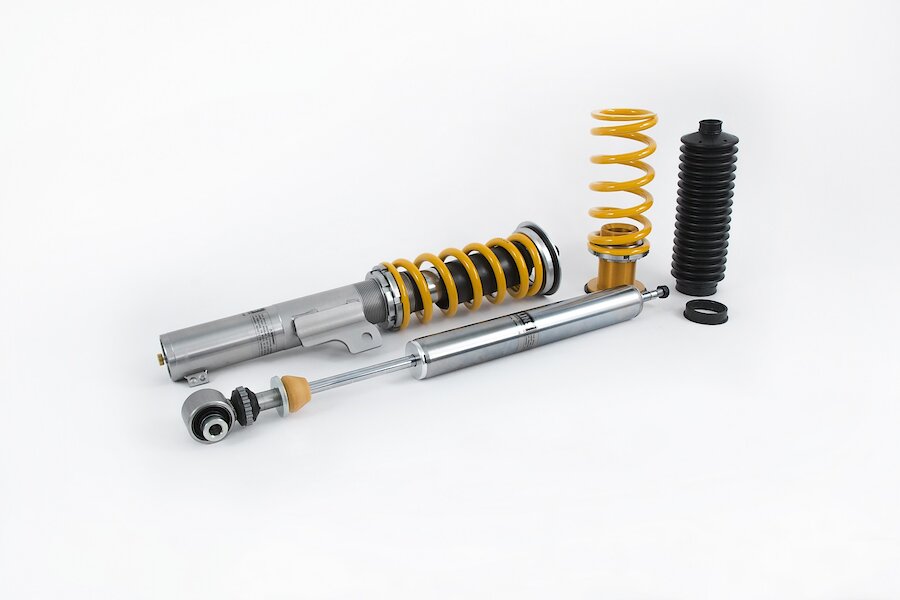

PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

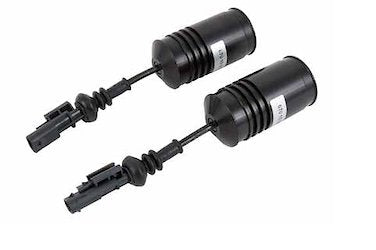

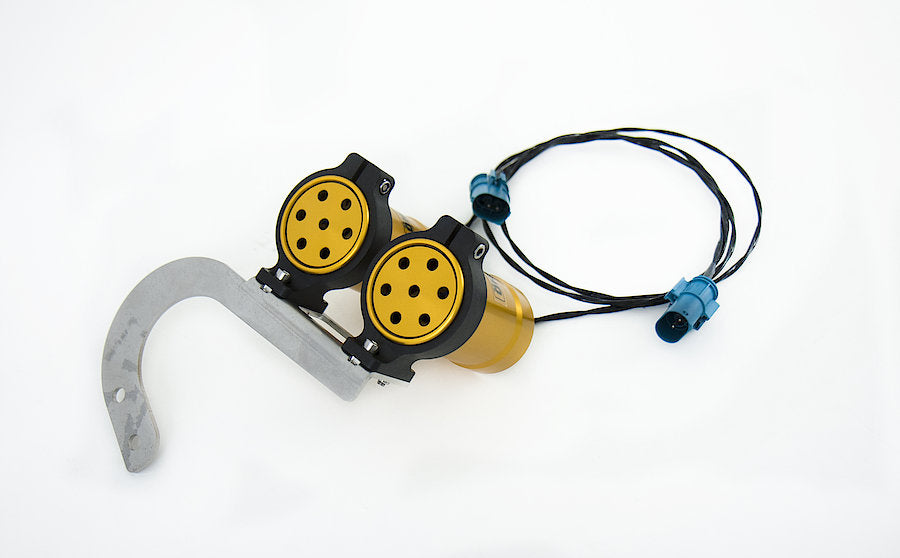

ADDITIONAL OPTIONS To remove DTCs from Audi A3 (8V), S3 (8V) TT (FV/8S), equipped with Dynamic Chassis Control, option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-23 (not included). To remove DTCs from Audi RS3 (8V), TT, TTS, TT RS (FV/8S), equipped with Dynamic Chassis Control, option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-24 (not included). To remove DTCs from Seat Leon ST / Cupra ST (5F), Škoda Octavia / RS (5E), VW Golf VII (5G) or Golf VIII (CD) equipped with Dynamic Chassis Control (DCC), option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-15 (not included).
