Öhlins Road & Track Coilover Suspension Audi A4, S4, RS4, A5, S5, RS5 (B8) AUS MS00S1

AUS MS00S1

FITMENT
Audi A4 (B8) 2007–2015
Audi S4 (B8) 2008–2015
Audi RS4 (B8) 2012–2015
Audi A5 (8T) 2007–2016
Audi S5 (8T) 2007–2016
Audi RS5 (8T) 2010–2015

GENERAL FEATURES
DFV technology (Dual Flow Valve)
Height adjustable
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year limited warranty

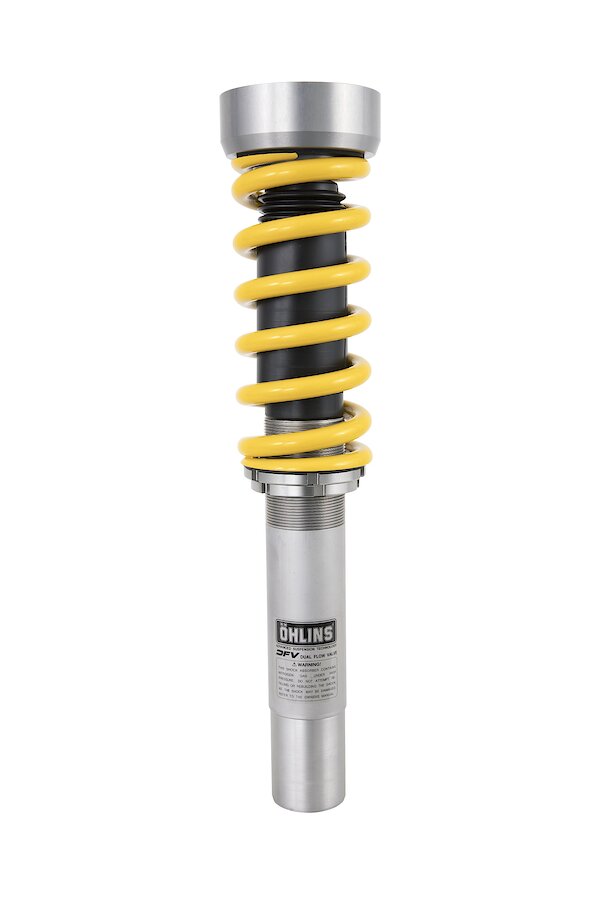

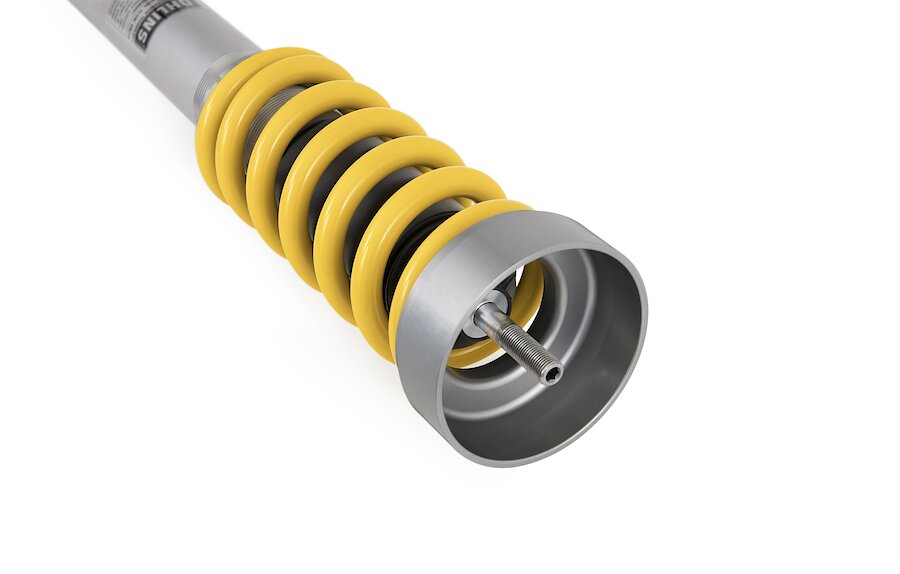

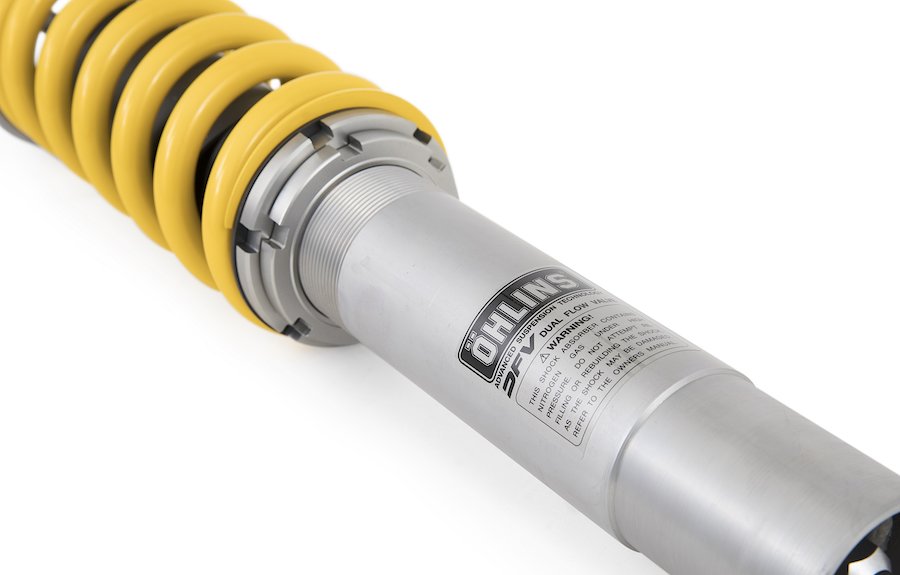

FRONT FEATURES
McPherson strut, upside down
Compression and rebound damping with one adjuster
Spring preload adjuster
Spring rate 120 N/mm
Approx. 15 - 20 mm lower than standard with recommended setup
Use with original top mounts

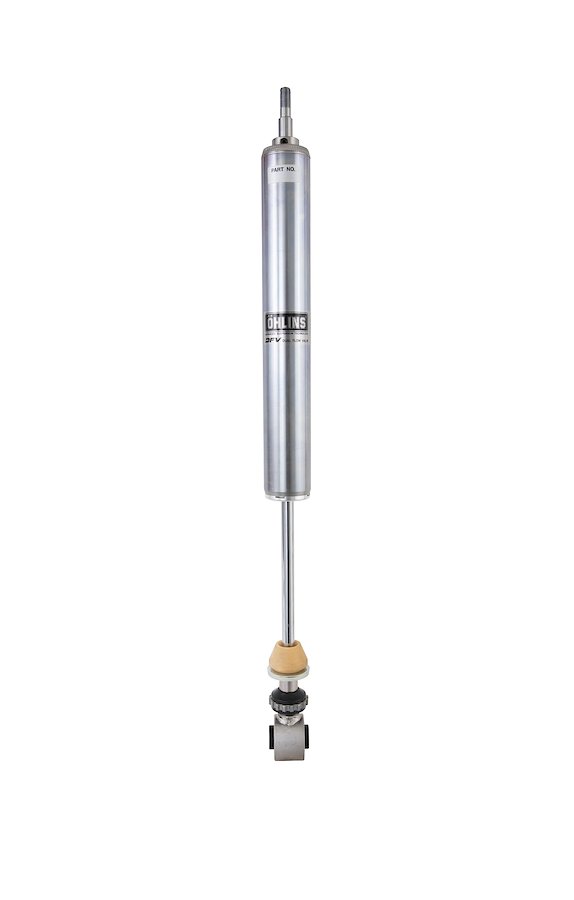

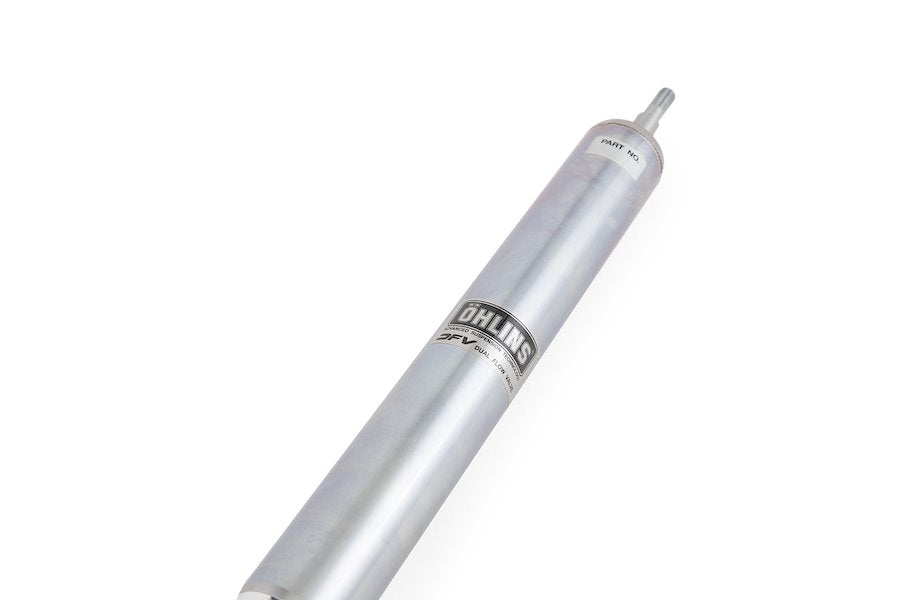

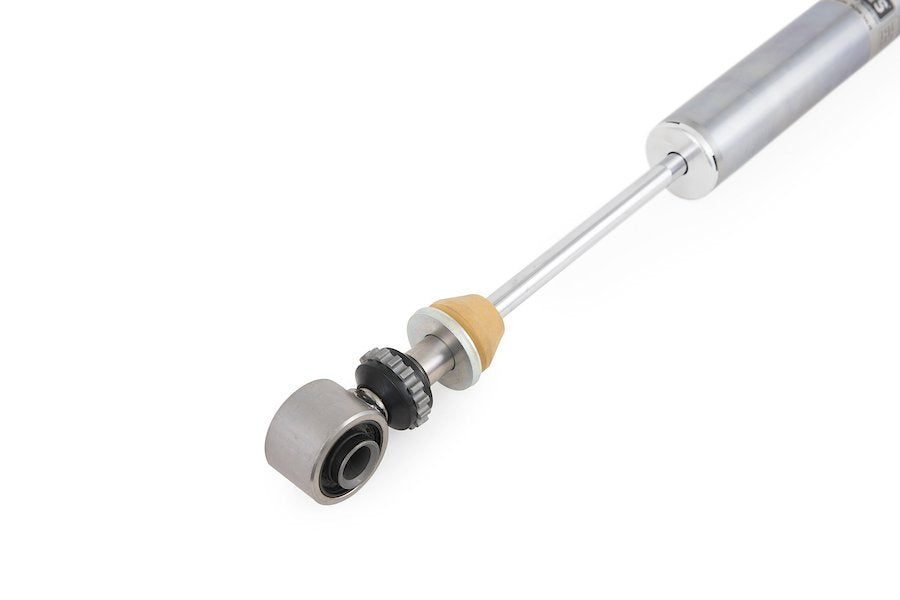

REAR FEATURES
Conventional shock absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Spring rate 50 N/mm
Approx. 15 - 20 mm lower than standard with recommended setup
Use with original top mounts

PURCHASED PARTS PACKAGE
Coil over kit incl. springs
C-Spanner (for spring preload adjustment)
Owners manual and mounting instructions
Sticker set

ADDITIONAL OPTIONS

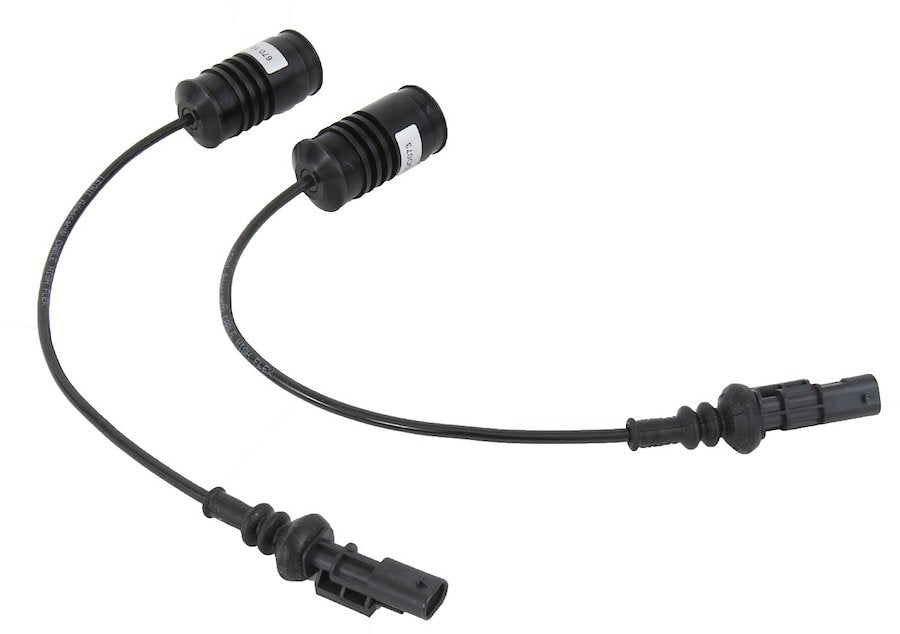

To remove DTCs from cars equipped with Adaptive Damping Suspension, option code 1BL, Öhlins is offering EDC Cancellation kit.
For A4, S4, A5, S5 the part nr is 35020-19.
For RS4, RS5 the part nr is 35020-21.
