FITMENT This set fits the following FWD cars: Audi A3 (8V) 2012–2020 Audi A3 (8Y) 2020– Audi TT (8S) 2014–2023 Seat Leon (5F) 2012–2020 Seat Leon Cupra (5F) 2014–2020 Seat Leon (KL) 2020– Seat Leon Cupra (KL) 2020– Škoda Octavia (5E) 2013–2020 Škoda Octavia (NX) 2020– Volkswagen Golf VII (5G) 2012–2020 Volkswagen Golf VII GTD (5G) 2013–2020 Volkswagen Golf VII GTE (5G) 2015–2017 Volkswagen Golf VII GTI (5G) 2013–2020 Volkswagen Golf VII GTI Clubsport (5G) 2016 Volkswagen Golf VII GTI Clubsport S (5G) 2016 Volkswagen Golf VIII (CD) 2020– Volkswagen Golf VIII GTI (CD) 2020– Volkswagen Golf VIII GTI Clubsport (CD) 2021– Only front wheel drive versions. Does not fit estate versions.
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty
FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 70 N/mm Approx. 20 mm lower than standard Use with original top mounts
REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 70 N/mm Approx. 20 mm lower than standard Use with original top mounts
PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

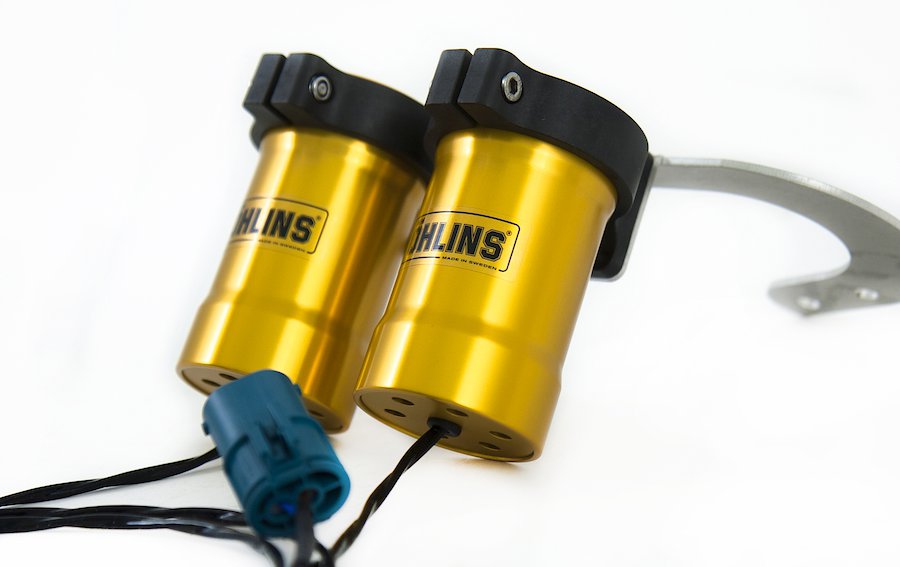

ADDITIONAL OPTIONS To remove DTCs from Audi A3 (8V), TT (FV/8S), equipped with Dynamic Chassis Control, option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-23 (not included). To remove DTCs from Seat Leon / ST (5F), Leon Cupra / ST (5F), Škoda Octavia / RS (5E), VW Golf VII (5G) or Golf VIII (CD) equipped with Dynamic Chassis Control (DCC), option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-15 (not included).
