FITMENT This set fits the following FWD cars: Audi A3 (8P) 2003–2012 Audi TT (8J) 2006–2014 Seat Leon (1P) 2005–2012 Seat Toledo (5P) 2WD 2004–2009 Škoda Octavia (1Z) 2005–2013, except estate Škoda Octavia RS (1Z) 2005–2013, except estate Volkswagen Golf V (1K) 2003–2008 Volkswagen Golf V GTI (1K) 2003–2008 Volkswagen Golf VI (5K) 2008–2012 Volkswagen Golf VI GTI (5K) 2008–2012 Volkswagen Jetta V (1K) 2003–2008 Volkswagen Jetta VI (5K) 2008–2012 Volkswagen Scirocco (13) 2008–2017 Volkswagen Scirocco R (13) 2008–2017 Only front wheel drive versions.
GENERAL FEATURES DFV technology (Dual Flow Valve) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

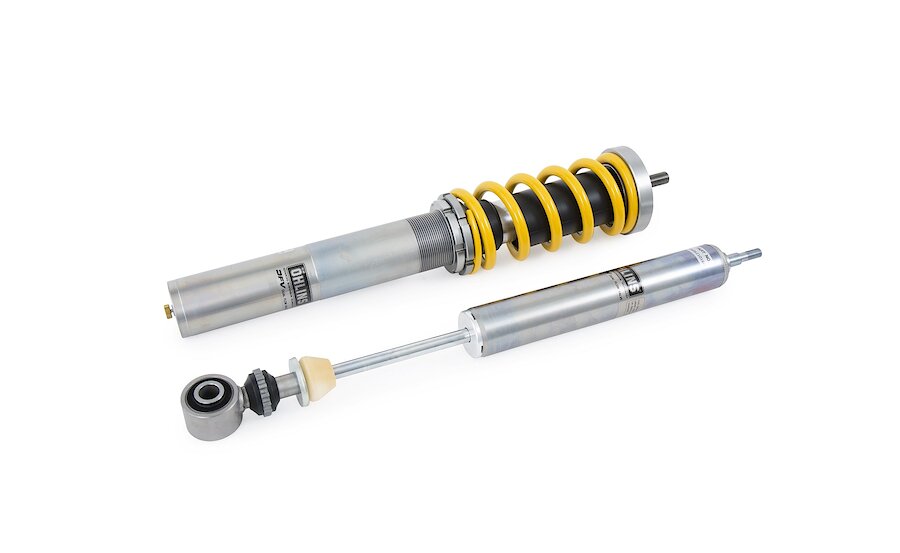

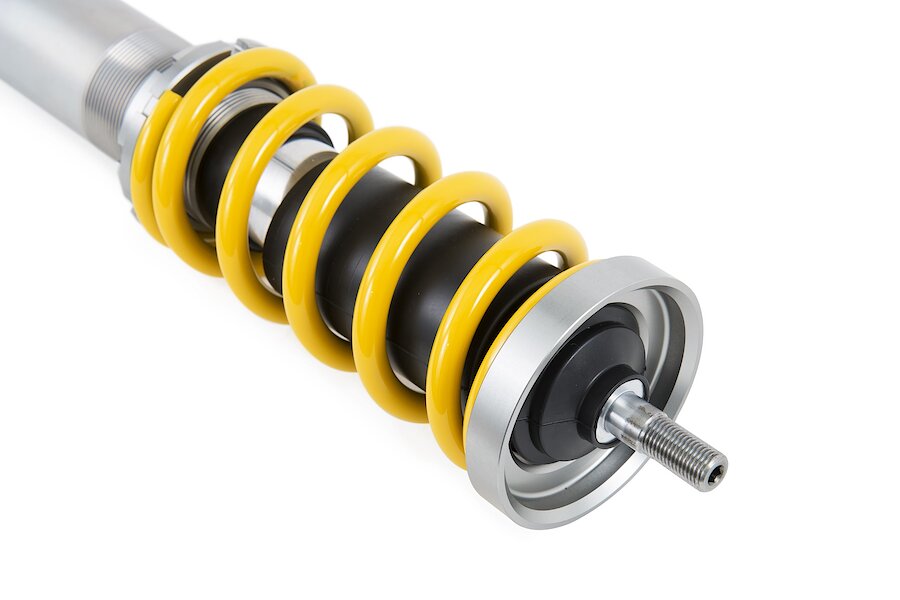

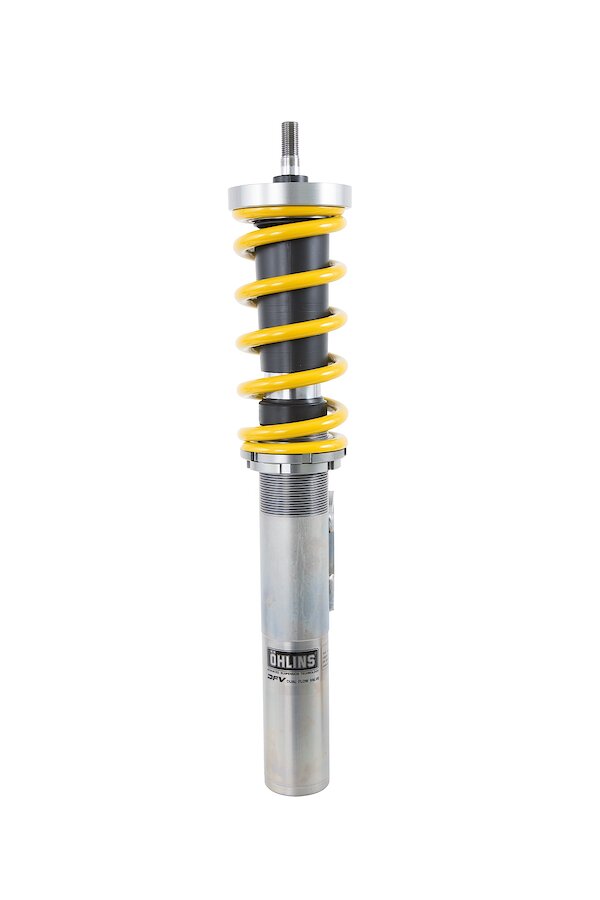

FRONT FEATURES McPherson strut, upside down Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 70 N/mm Lowering vs. standard: see mounting instruction Use with original top mounts

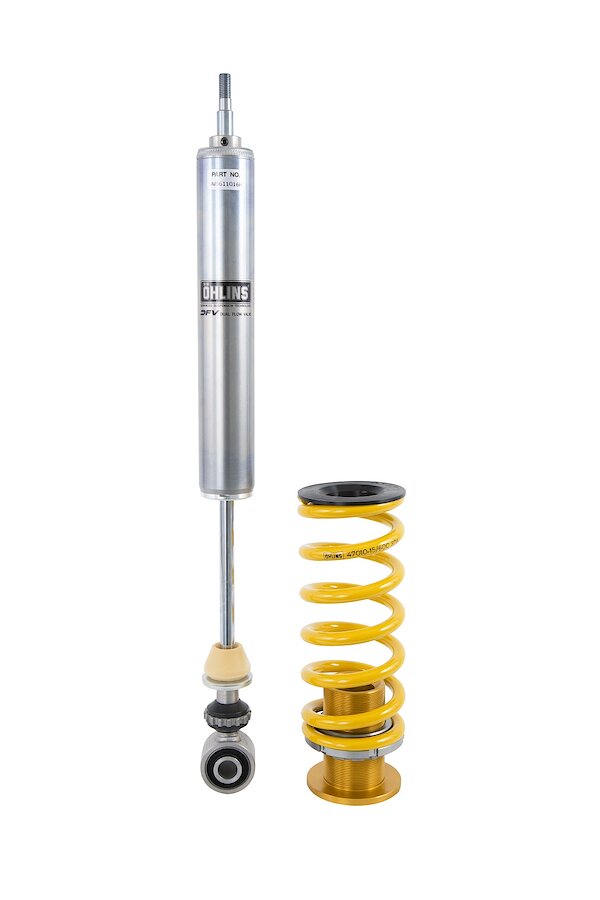

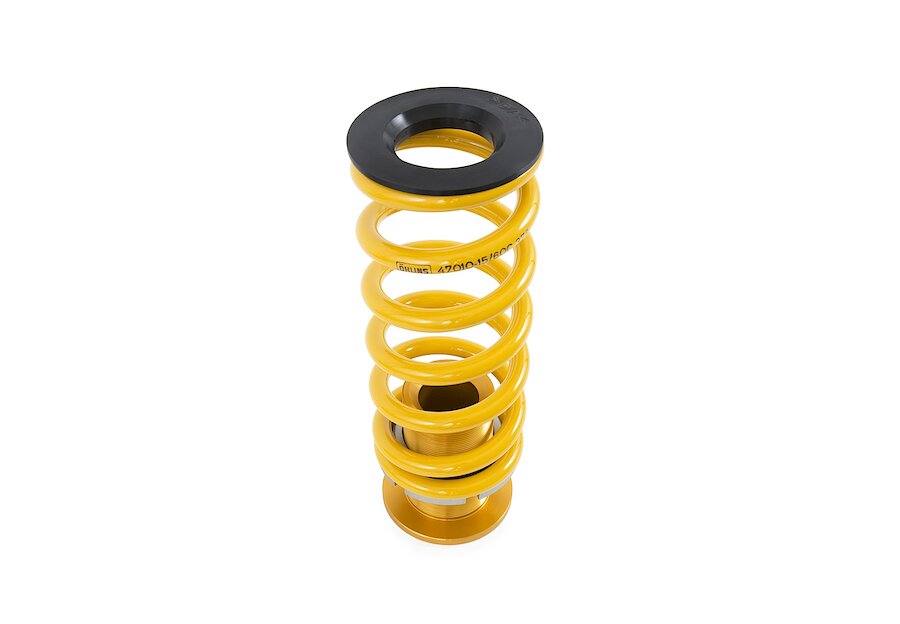

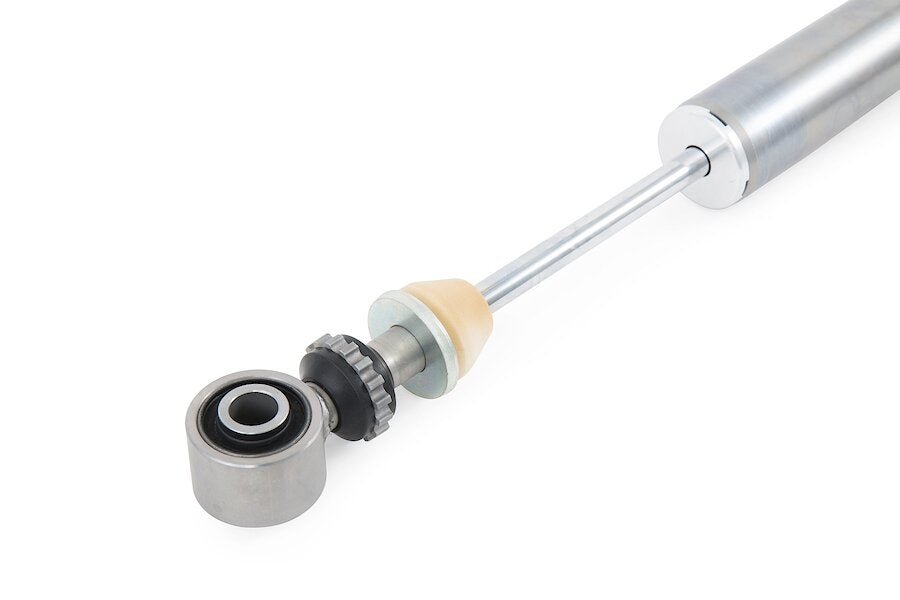

REAR FEATURES Conventional shock absorber Compression and rebound damping with one adjuster Spring preload adjuster Spring rate 70 N/mm Lowering vs. standard: see mounting instruction Use with original top mounts

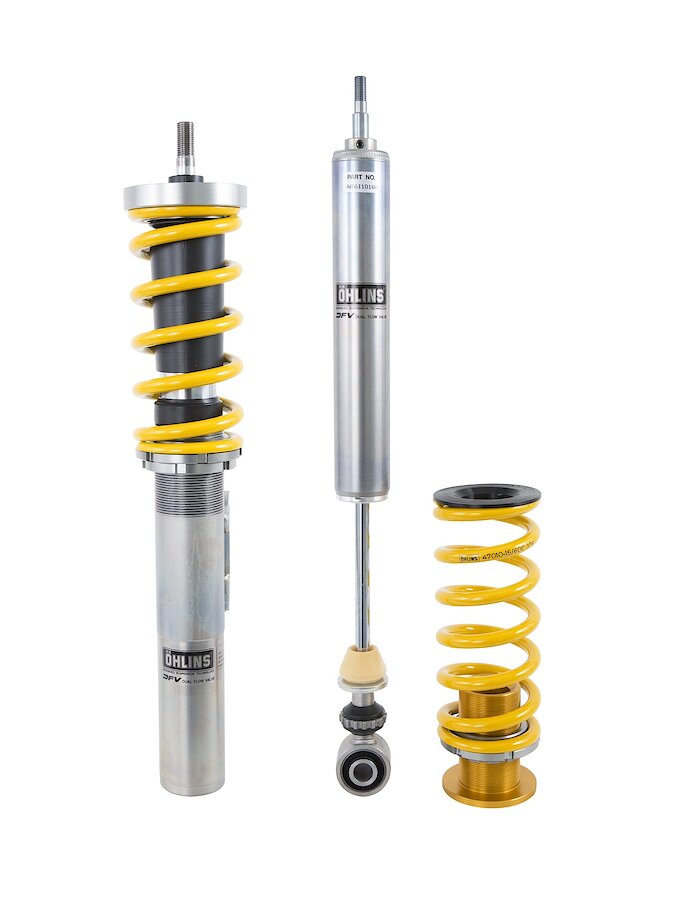

PURCHASED PARTS PACKAGE Coil over kit incl. springs C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

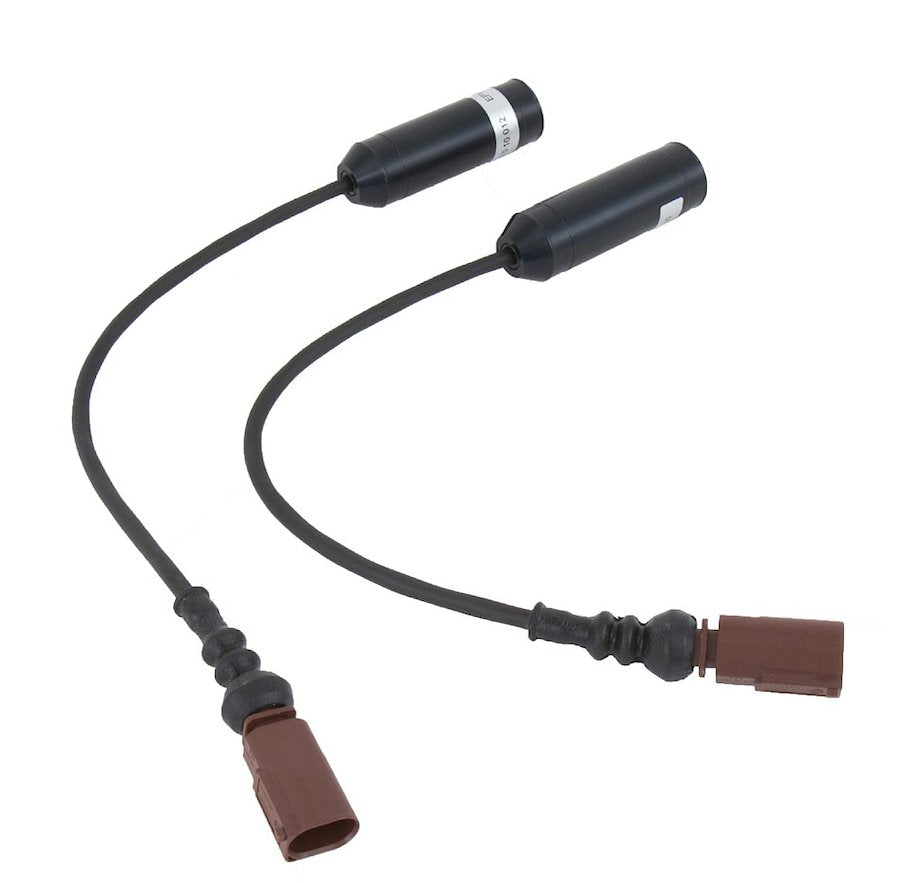

ADDITIONAL OPTIONS To remove DTCs from Audi A3 (8P), TT (8J), equipped with Magnetic Ride, option code G37, Öhlins is offering EDC Cancellation kit, part nr 35020-22 (not included). To remove DTCs from Audi S3 (8P), equipped with Magnetic Ride, option code G37, Öhlins is offering EDC Cancellation kit, part nr 35020-27 (not included). To remove DTCs from Seat Leon (1P), Toledo (5P), Škoda Octavia (1Z), VW Golf V / Jetta (1K), Golf VI / Jetta (5K) or VW Scirocco (13) equipped with Dynamic Chassis Control (DCC), option code PDD, Öhlins is offering EDC Cancellation kit, part nr 35020-27 (not included).
