The whole design is very robust to withstand the high forces and demands presented in off road such as rally raid and similar events. Details such as spherical plain bearings and the rebound adjustment has been reinforced. The ORQ 18/50 also features the new improved PDS, Progressive Damping System, featured on Öhlins rally dampers.
It's available in two versions, either with the reservoir in a piggy back version or in a remote hose version. The 18/50 is two way compression adjustable and one way rebound adjustable.

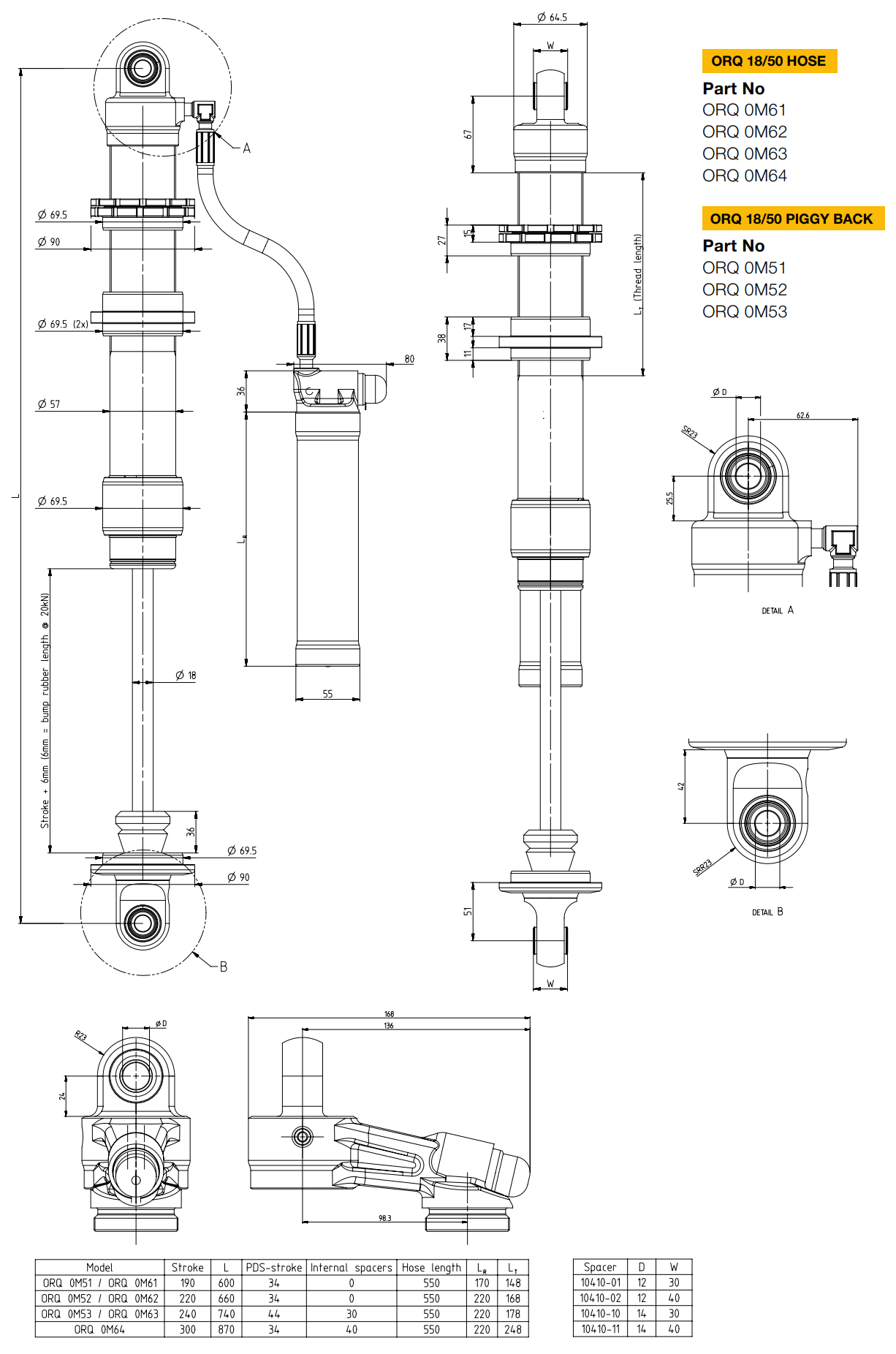

ORQ 0M51 with 600mm extended length and 190mm of stoke, piggyback reservoir ORQ 0M52 with 660mm extended length and 220mm of stoke, piggyback reservoir ORQ 0M53 with 740mm extended length and 240mm of stoke, piggyback reservoir ORQ 0M61 with 600mm extended length and 190mm of stoke, hose mounted reservoir ORQ 0M62 with 660mm extended length and 220mm of stoke, hose mounted reservoir ORQ 0M63 with 740mm extended length and 240mm of stoke, hose mounted reservoir ORQ 0M64 with 870mm extended length and 300mm of stoke, hose mounted reservoir Custom options available as a special order
TECHNICAL SPECIFICATIONS Mono-Tube gas pressurized shock absorber 50 mm piston 18 mm shaft Available in 4 different lengths + custom orders PDS (Progressive Damping System) Remote reservoirs (hose mounted or piggyback) Adjustable rebound damping Adjustable compression damping in high and low speed
NOTES Springs, spring platforms and spacers for the spherical bearings need to be ordered separately Custom lengths possible on special order. Contact us at info@radaauto.ee for further information
