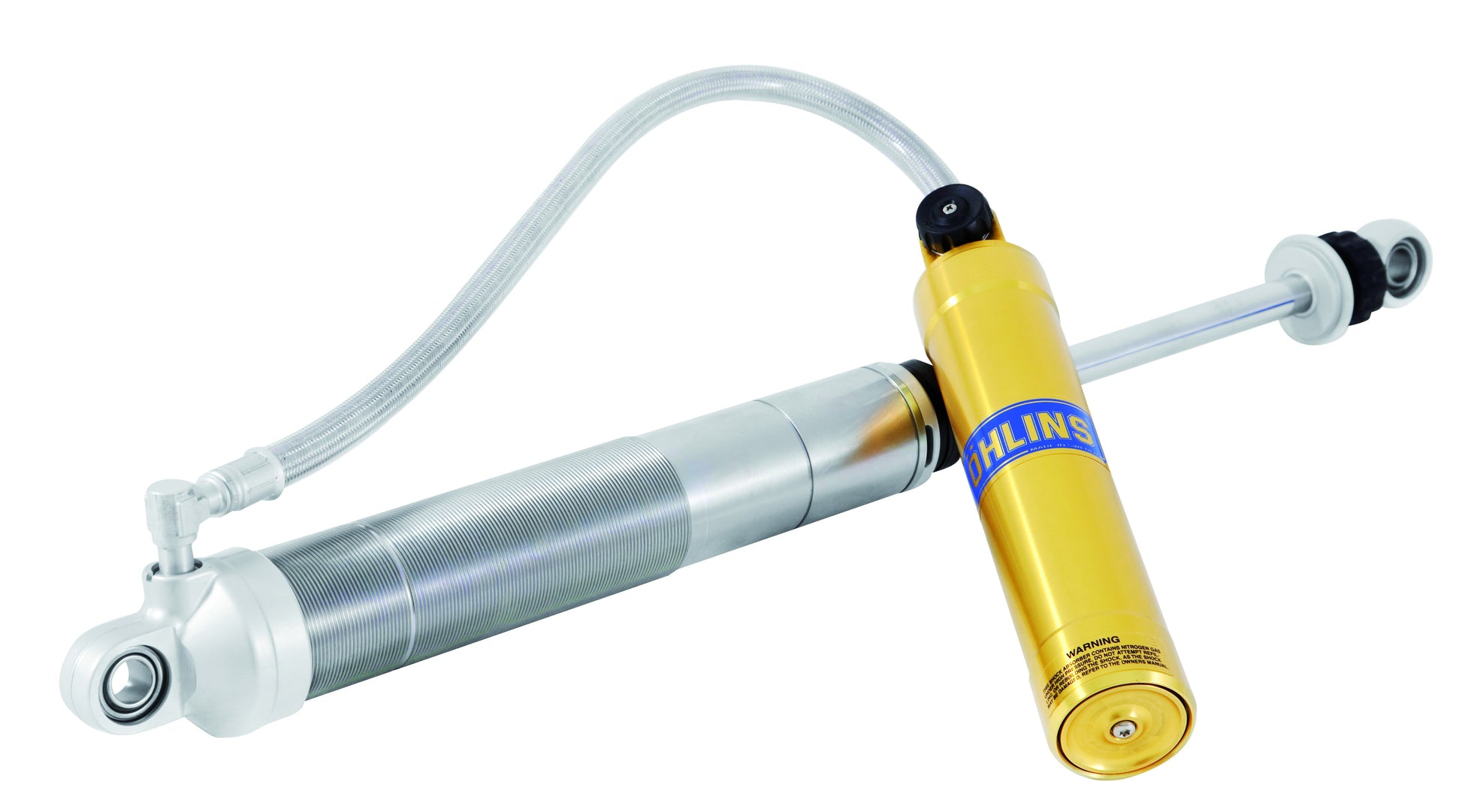

The ORQ 16/46 has a swiveling hose for increased flow potential and ease of mounting on the vehicle. The dampers are of a 16 mm shaft and a 46 mm piston type with remote reservoirs. They have compression and rebound adjusters together with the PDS, Progressive Damping System. The d ampers come with a protecting sleeve and two circlips to help prevent spring wear.

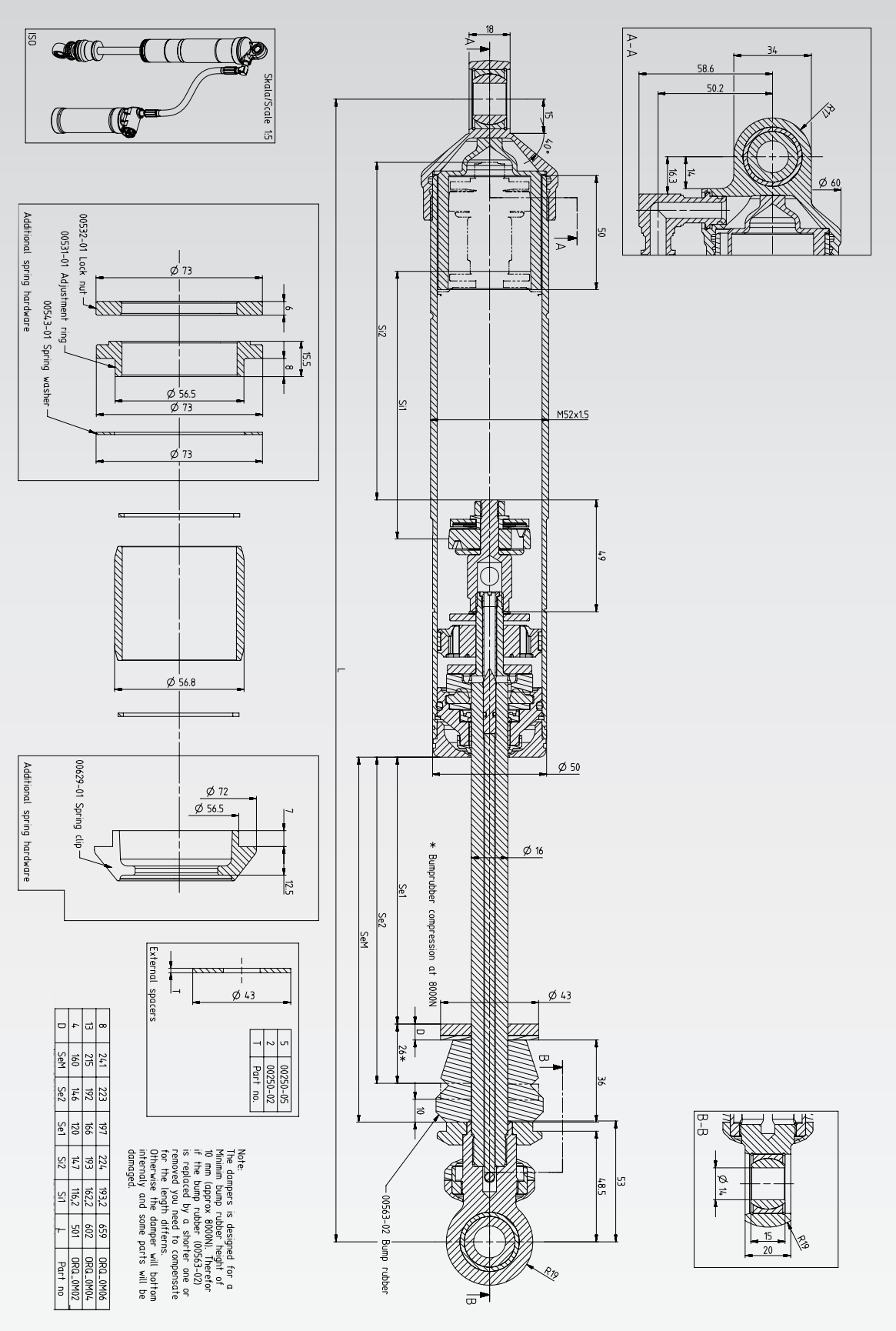

ORQ 0M02 with 501mm extended length and 147mm of stoke ORQ 0M04 with 602mm extended length and 193mm of stoke ORQ 0M06 with 659mm extended length and 224mm of stoke Custom options available as a special order
TECHNICAL SPECIFICATIONS Mono-Tube gas pressurized shock absorber 46 mm piston 16 mm shaft Available in 3 different lengths PDS (Progressive Damping System) Remote reservoirs (hose mounted) 2-way adjustable
NOTES Springs, spring platforms and spacers for the spherical bearings need to be ordered separately Custom lengths possible on special order. Contact us at info@radaauto.ee for further information
