TOV 1W00 for front left TOV 2W00 for front right TOV 6W00 for rear
FITMENT Toyota Hilux 2.4 D-4D (AN120) 2015–2026 Toyota Hilux 2.4 D-4D (AN130) 2015–2026 Toyota Hilux 2.5 D-4D (AN120) 2015–2026 Toyota Hilux 2.5 D-4D (AN130) 2015–2026 Toyota Hilux 2.7 VVT-i (AN120) 2015–2026 Toyota Hilux 2.7 VVT-i (AN130) 2015–2026 Toyota Hilux 2.8 D-4D (AN120) 2015–2026 Toyota Hilux 2.8 D-4D (AN130) 2015–2026 Toyota Hilux 3.0 D-4D (AN120) 2015–2026 Toyota Hilux 3.0 D-4D (AN130) 2015–2026 Toyota Hilux 4.0 V6 (AN120) 2015–2026 Toyota Hilux 4.0 V6 (AN130) 2015–2026 Toyota Hilux GR Sport (AN120) 2019–2026 Toyota Hilux GR Sport (AN130) 2019–2026
GENERAL FEATURES 2.25” shock body, fully aluminum design for improved cooling 2-way damping adjustment Öhlins industry leading pressure balanced damping for cavitation prevention Designed for 1 inch lift Improved top out strength for solid axles and off road use Spherical ball joints for low friction suspension movement and improved body control Rebuildable for custom tuning Possibility to upgrade to separate high and low speed compression adjustment Fully rebuildable dampers for maintenance and repair 2-year limited warranty
FRONT FEATURES Conventional shock absorber with braided hose for remote reservoir Separate adjustment for compression and rebound damping Designed for 1 inch lift with spring preload adjusters Uniball top mounts Different spring options
REAR FEATURES Conventional shock absorber with external reservoir Separate adjustment for compression and rebound damping Designed for 1 inch lift with included lift bloc (25 mm longer u bolts needed, not included) Equipped with bellows for shaft protection Use of the standard leaf springs

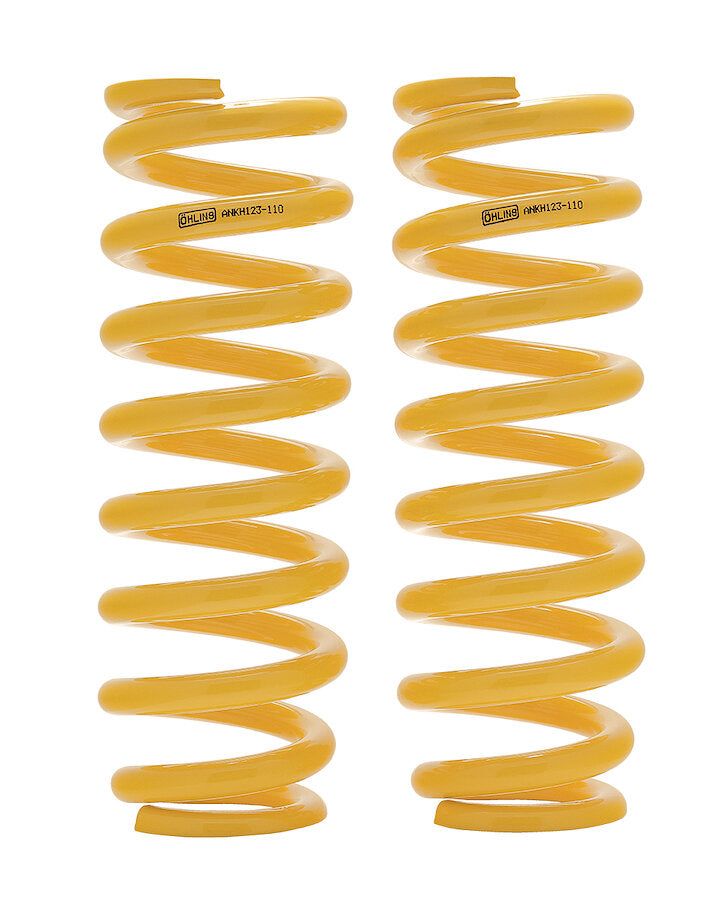

RECOMMENDED FRONT SPRING OPTIONS 120 N/mm (62462-07) - 1" lift for standard version 130 N/mm (62462-08) - 1" lift for an additional weight up to 50kg (i.e light pull bar) 140 N/mm (62462-09) - 1" lift for an additional weight up to 100kg (i.e winch)
