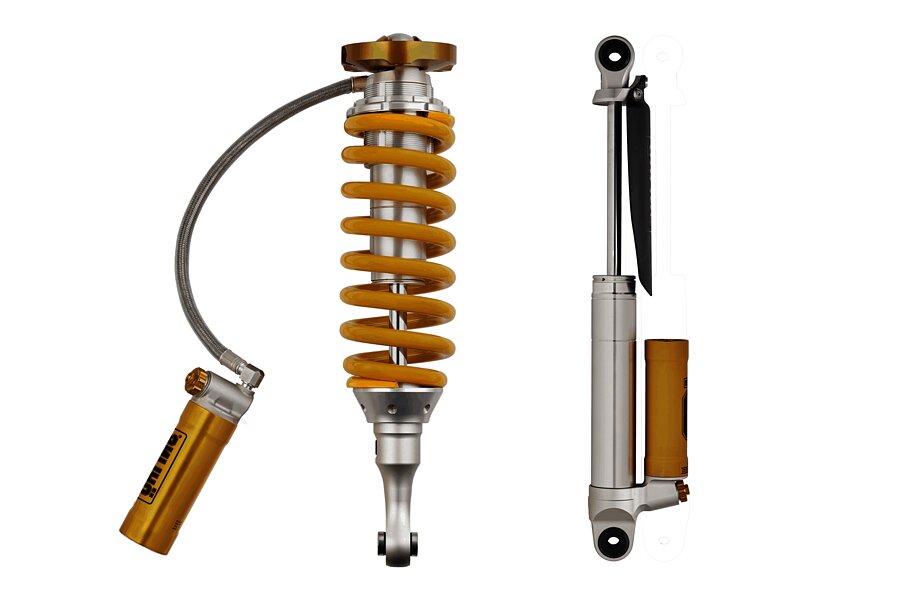

GENERAL FEATURES 2.25” shock body, fully aluminum design for improved cooling 2-way damping adjustment Öhlins industry leading pressure balanced damping for cavitation prevention Designed for up to 1 inch lift Improved top out strength for solid axles and off road use Spherical ball joints for low friction suspension movement and improved body control Rebuildable for custom tuning Possibility to upgrade to separate high and low speed compression adjustment Fully rebuildable dampers for maintenance and repair 2-year limited warranty

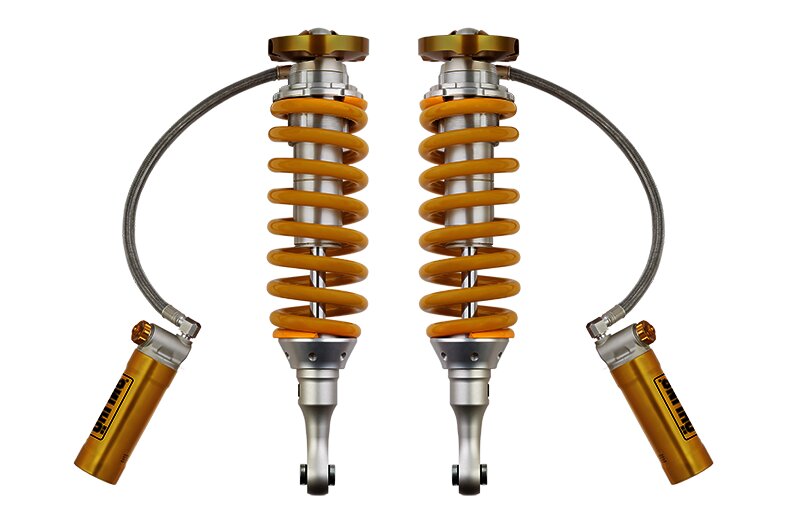

FRONT FEATURES Conventional shock absorber with braided hose for remote reservoir Separate adjustment for compression and rebound damping Uniball top mounts Different spring options

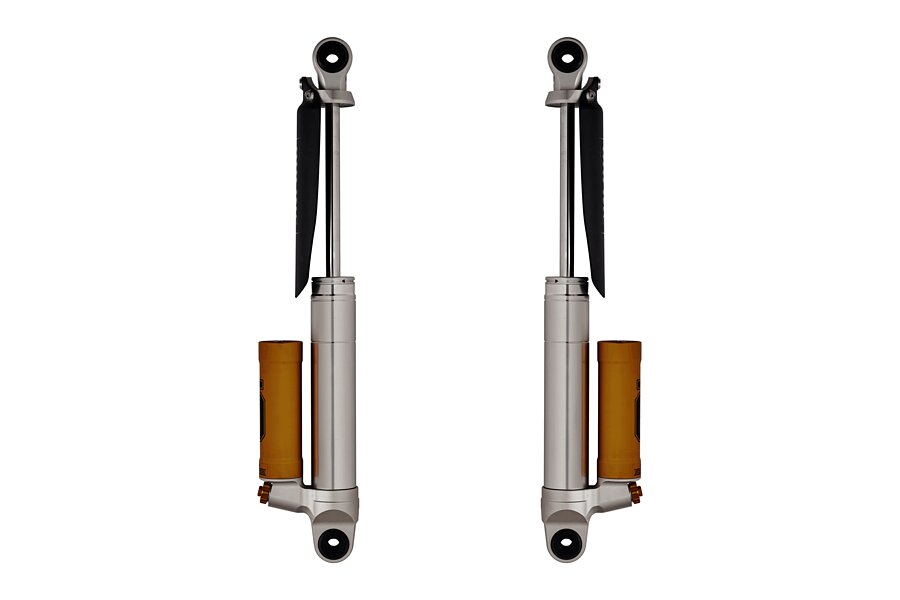

REAR FEATURES Conventional shock absorber with external reservoir Separate adjustment for compression and rebound damping Equipped with bellows for shaft protection Use of the standard leaf springs

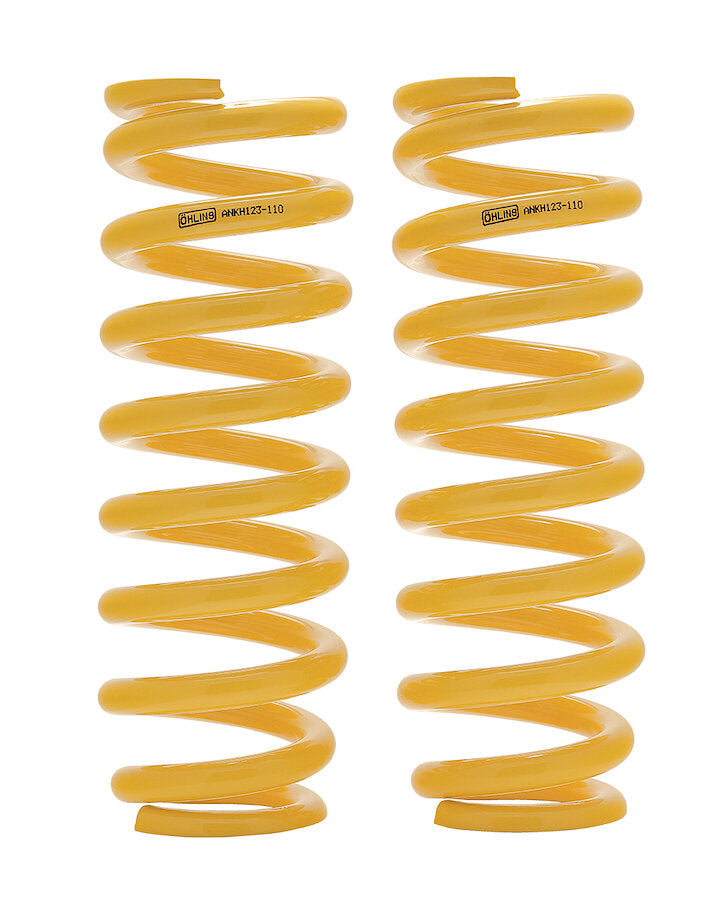

RECOMMENDED FRONT SPRING OPTIONS 110 N/mm (62462-10) - 1" lift for standard version 120 N/mm (62462-01) - 1" lift for an additional weight up to 50kg (i.e light pull bar) 130 N/mm (62462-02) - 1" lift for an additional weight up to 100kg (i.e winch)
RECOMMENDED REAR SPRING OPTIONS 40 N/mm (62474-04) - 1" lift comfort 50 N/mm (62474-09) - 1" lift for standard and additional weight up to 50kg
