FOV 1W00 for front left FOV 2W00 for front right FOV 6W00 for rear
FITMENT Ford Ranger Single Cab (T6) 2011–2019* Ford Ranger Super Cab (T6) 2011–2019* Ford Ranger Double Cab (T6) 2011–2019* Ford Ranger XL (T6) 2011–2019* Ford Ranger XLS (T6) 2011–2019* Ford Ranger XLT (T6) 2011–2019* Ford Ranger Sport (T6) 2011–2019* Ford Ranger Wildtrak (T6) 2011–2019* Mazda BT-50 Single Cab (UP) 2011–2015 Mazda BT-50 Freestyle Cab (UP) 2011–2015 Mazda BT-50 Dual Cab (UP) 2011–2015 Mazda BT-50 XT (UP) 2011–2015 Mazda BT-50 XTR (UP) 2011–2015 Mazda BT-50 GT (UP) 2011–2015 Mazda BT-50 Single Cab (UR) 2015–2020 Mazda BT-50 Freestyle Cab (UR) 2015–2020 Mazda BT-50 Dual Cab (UR) 2015–2020 Mazda BT-50 XT (UR) 2015–2020 Mazda BT-50 XTR (UR) 2015–2020 Mazda BT-50 GT (UR) 2015–2020
NB! *- For model year 2019 Fords, the lower front shock absorber mount was partially changed. The installation width is now 50mm instead of 38mm as before and the lower retaining bolt now has a diameter of 20mm instead of 16mm as before. From model year 2020, only the new dimensions are used. To make sure the Öhlins shock absorber kit fits your car, please check the mentioned dimensions before purchase.
To fit the kit for 2019+ Ford models, there's an update kit 65006-13 available.

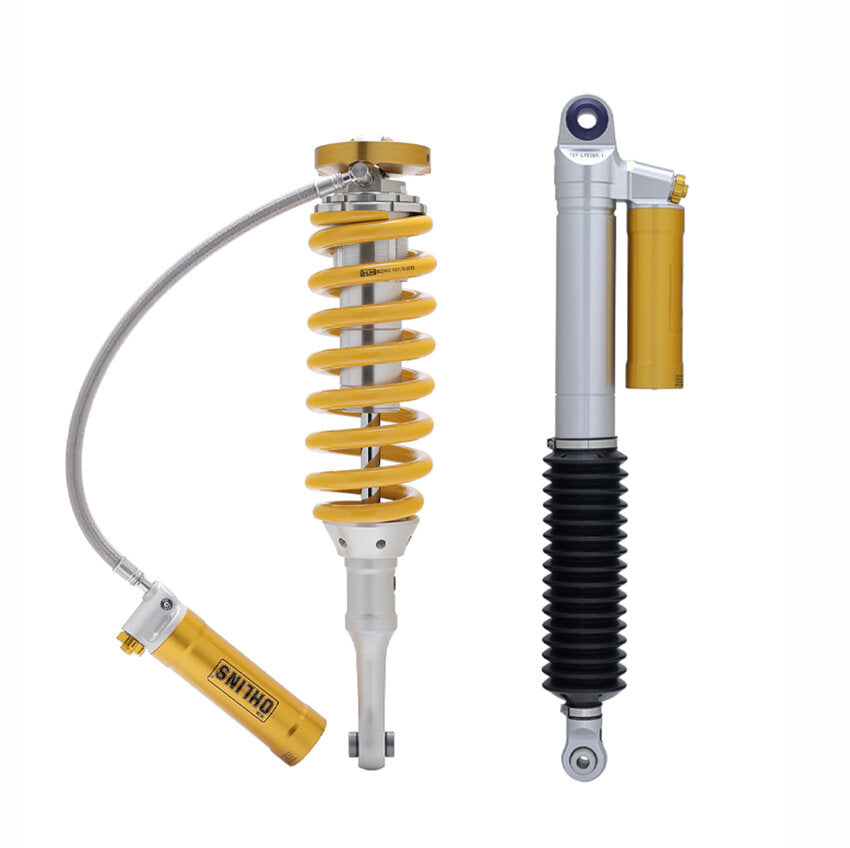

GENERAL FEATURES 2.25” shock body, fully aluminum design for improved cooling 2-way damping adjustment Öhlins industry leading pressure balanced damping for cavitation prevention Designed for 1 inch lift Improved top out strength for solid axles and off road use Spherical ball joints for low friction suspension movement and improved body control Rebuildable for custom tuning Possibility to upgrade to separate high and low speed compression adjustment Fully rebuildable dampers for maintenance and repair 2-year limited warranty

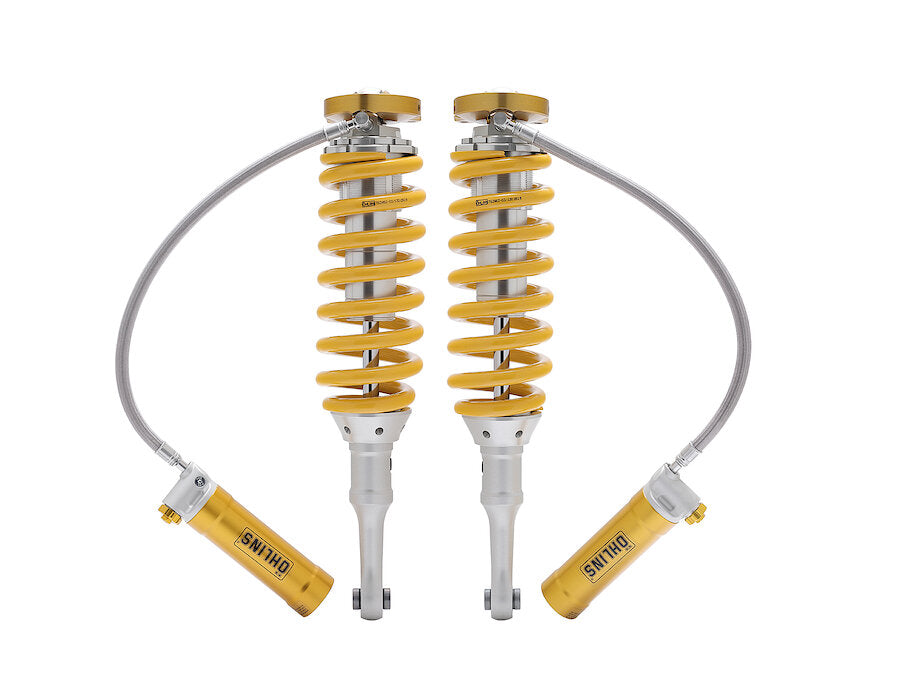

FRONT FEATURES Conventional shock absorber with braided hose for remote reservoir Separate adjustment for compression and rebound damping Designed for 1 inch lift with spring preload adjusters Uniball top mounts Spring rate 130 N/mm or 140 N/mm

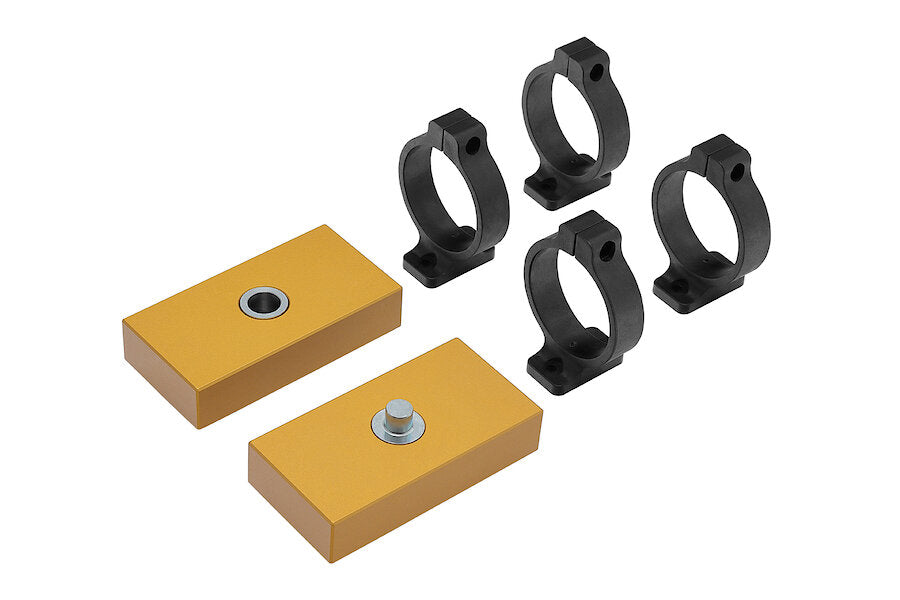

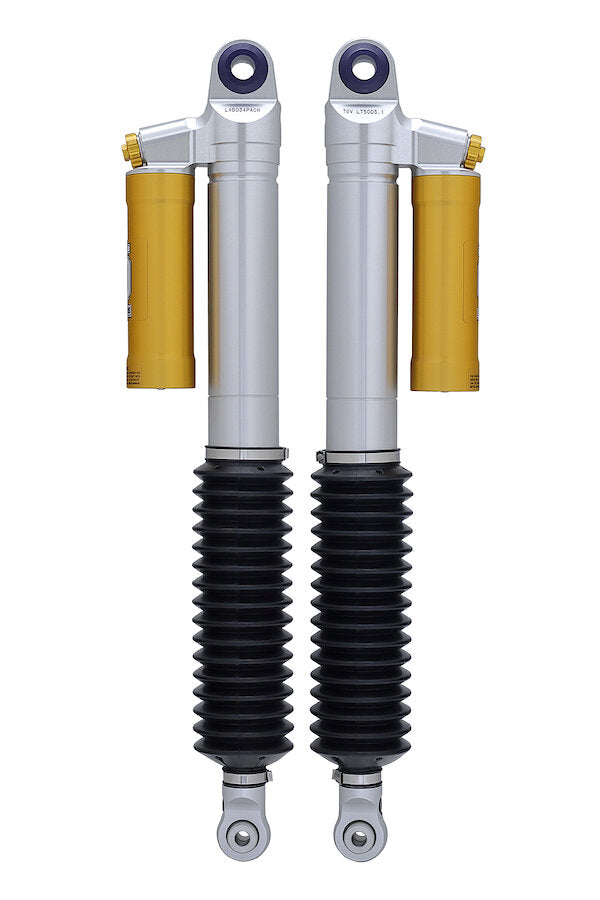

REAR FEATURES Conventional shock absorber with external reservoir Separate adjustment for compression and rebound damping Designed for 1 inch lift with included lift bloc (25 mm longer u bolts needed, not included) Equipped with bellows for shaft protection Use of the standard leaf springs

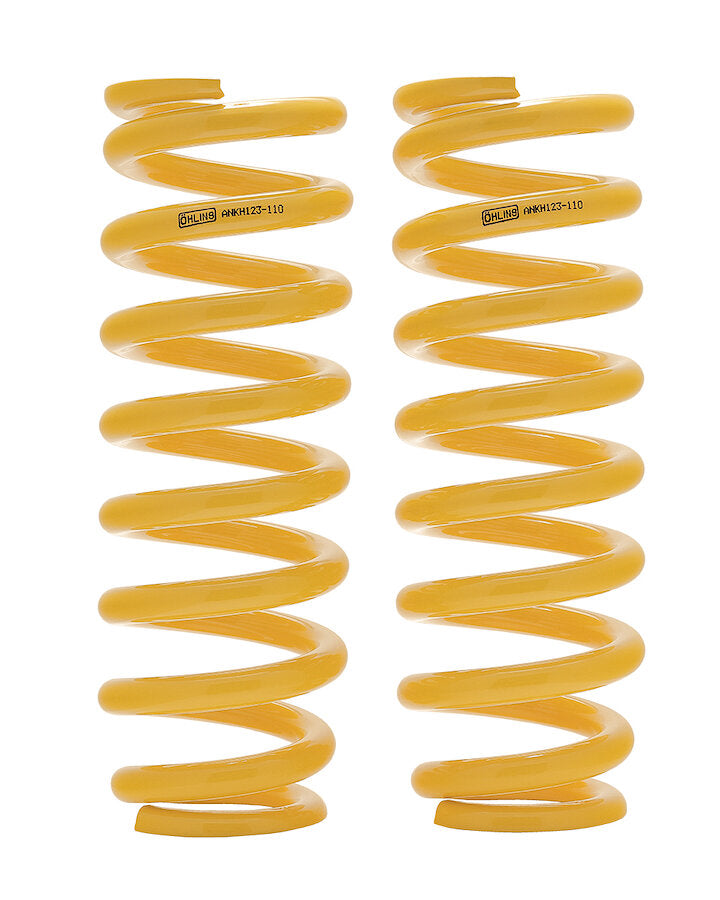

RECOMMENDED FRONT SPRING OPTIONS 130 N/mm (62462-08) - 1" lift for standard and additional weight up to 50kg (i.e light pull bar) 140 N/mm (62462-09) - 1" lift for an additional weight up to 100kg (i.e winch)
