FOV 1X10 for front left FOV 2X10 for front right FOV 3X50 for rear left FOV 4X50 for rear right
FITMENT Ford Everest Ambiente (U704) 2022– Ford Everest Trend (U704) 2022– Ford Everest Sport (U704) 2022– Ford Everest Wildtrak (U704) 2022– Ford Everest Platinum (U704) 2022– Ford Everest Tremor (U704) 2024–

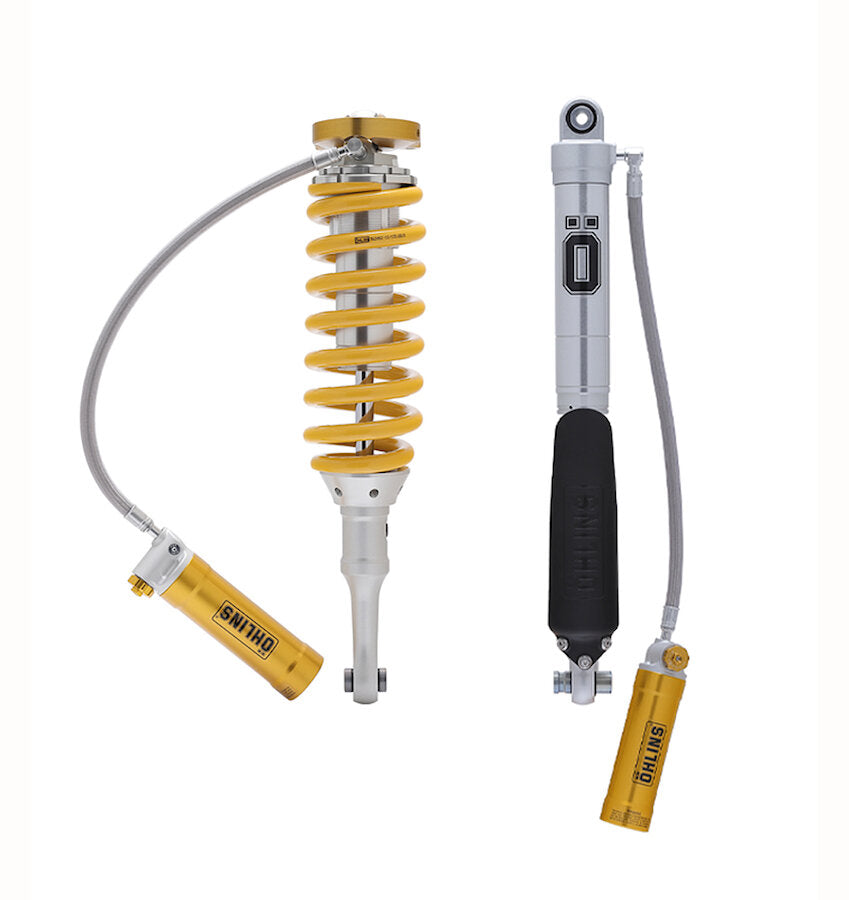

GENERAL FEATURES 2.25” shock body, fully aluminum design for improved cooling 3-way damping adjustment Öhlins industry leading pressure balanced damping for cavitation prevention Improved top out strength for solid axles and off road use Spherical ball joints for low friction suspension movement and improved body control Rebuildable for custom tuning Possibility to upgrade to separate high and low speed compression adjustment Fully rebuildable dampers for maintenance and repair 2-year limited warranty

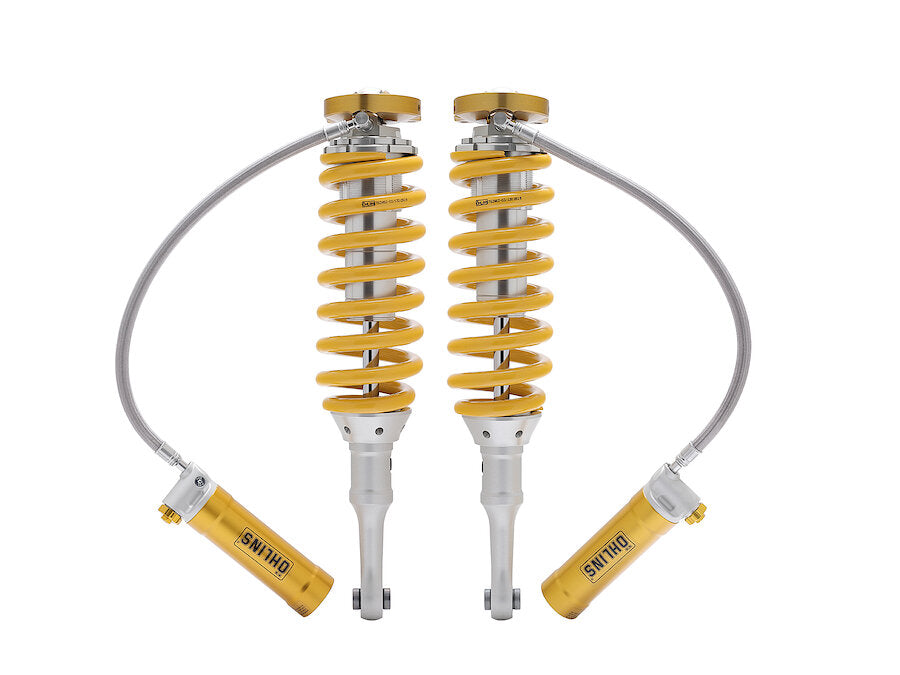

FRONT FEATURES Conventional shock absorber with braided hose for remote reservoir Separate adjustment for compression and rebound damping Compression damping separated in high and low speed adjustment Uniball top mounts Several spring rate options Height adjustable

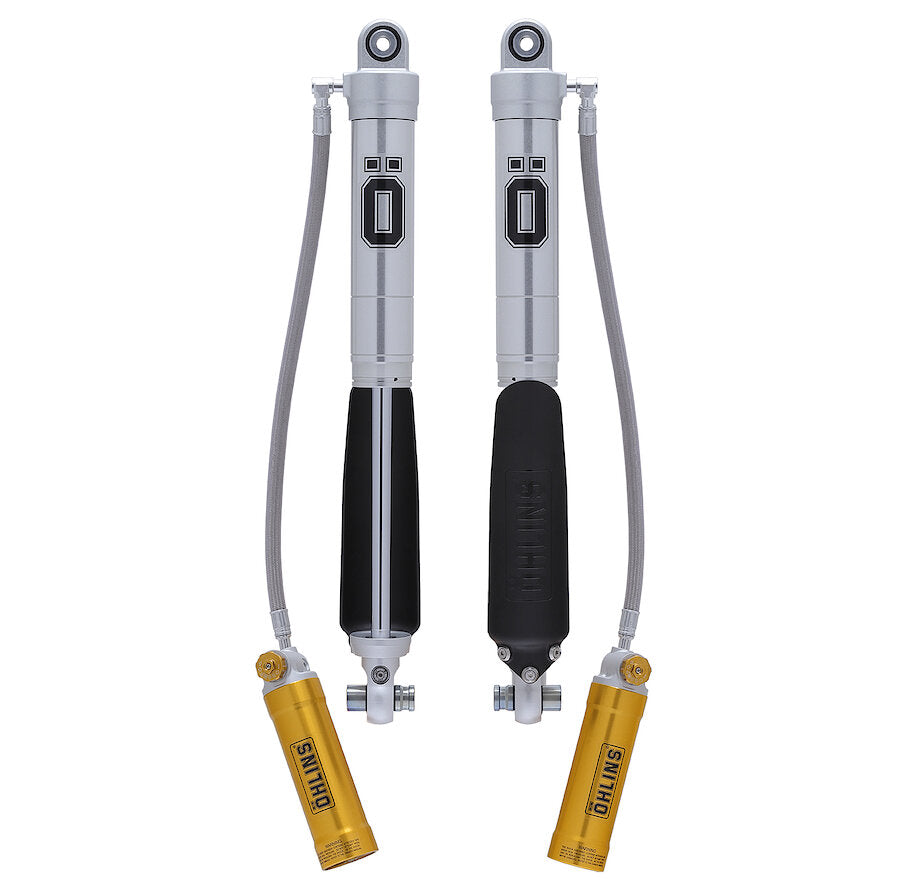

REAR FEATURES Conventional shock absorber with external reservoir Separate adjustment for compression and rebound damping Compression damping separated in high and low speed adjustment Equipped with bellows for shaft protection Several spring rate options

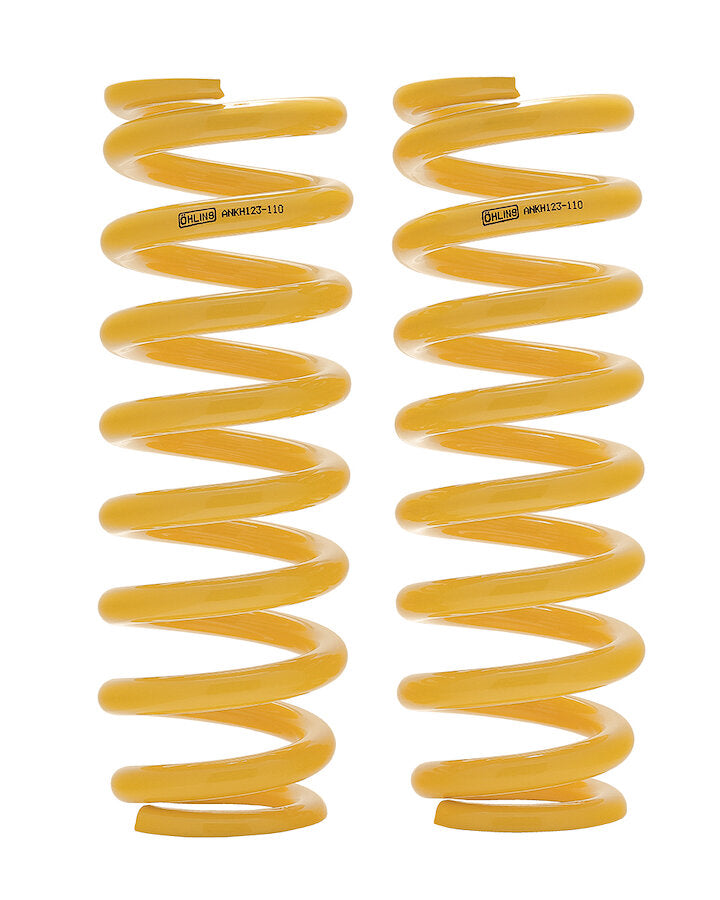

RECOMMENDED FRONT SPRING OPTIONS 110 N/mm (62462-10) - no lift for standard weight 110 N/mm (62462-11) - 1" lift for standard weight 120 N/mm (62462-01) - no lift for an additional weight up to 50kg (i.e light pull bar) 130 N/mm (62462-02) - no lift for an additional weight up to 100kg (i.e winch)
RECOMMENDED REAR SPRING OPTIONS 28-35 N/mm (62475-25) - no lift 35 N/mm (62475-05) - 1" lift
