FOV 1W00 for front left FOV 2W00 for front right FOV 3W50 for rear left FOV 4W50 for rear right
FITMENT Ford Everest Ambiente (U375) 2015–2022* Ford Everest Trend (U375) 2015–2022* Ford Everest Titanium (U375) 2015–2022* Ford Everest Titanium+ (U375) 2015–2022* Ford Everest Sport (U375) 2015–2022*
NB! *- for model year 2019 and up, the lower front shock absorber mount was partially changed. The installation width is now 50mm instead of 38mm as before and the lower retaining bolt now has a diameter of 20mm instead of 16mm as before. From model year 2020, only the new dimensions are used. To make sure the Öhlins shock absorber kit fits your car, please check the mentioned dimensions before purchase.
To fit the kit for 2019+ models, there's an upgrade kit 65006-13 available.
GENERAL FEATURES 2.25” shock body, fully aluminum design for improved cooling 3-way damping adjustment Öhlins' industry leading pressure balanced damping for cavitation prevention Designed for up to 2 inch lift Improved top out strength for solid axles and off road use Spherical ball joints for low friction suspension movement and improved body control Rebuildable for custom tuning Possibility to upgrade to separate high and low speed compression adjustment Fully rebuildable dampers for maintenance and repair 2-year limited warranty

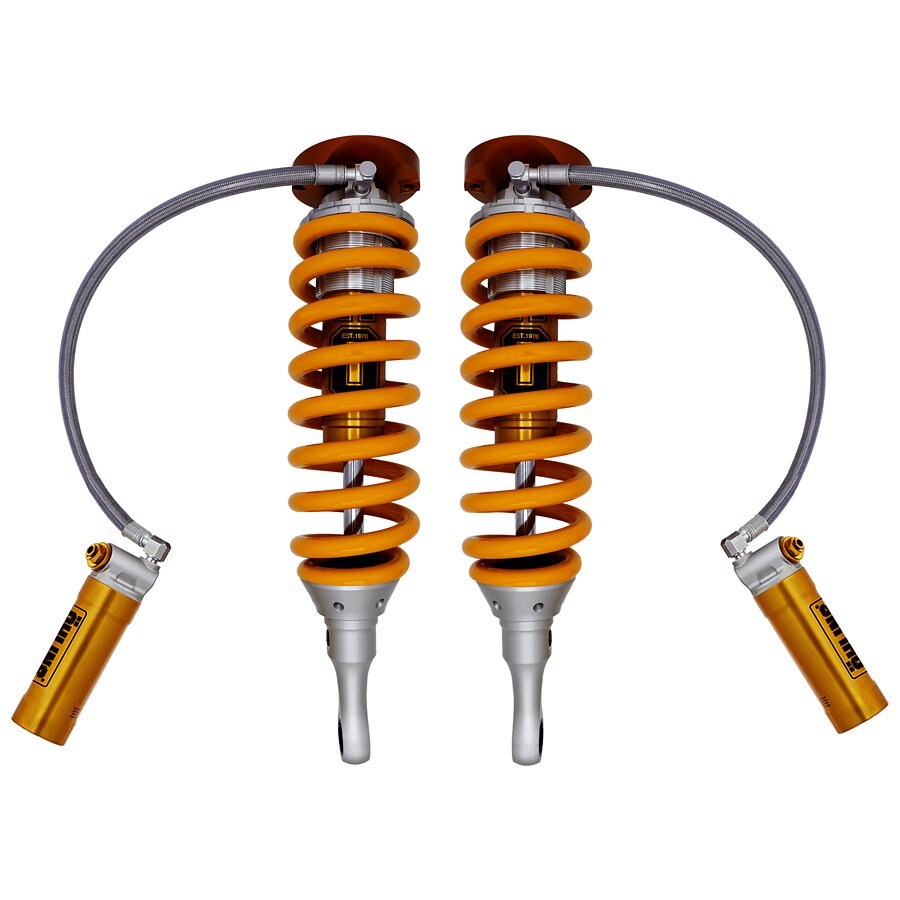

FRONT FEATURES Conventional shock absorber with braided hose for remote reservoir Separate adjustment for compression and rebound damping Top mounts Spring rate 130 N/mm (standard, up to 50 kg) or 140 N/mm (full load, up to 100 kg)

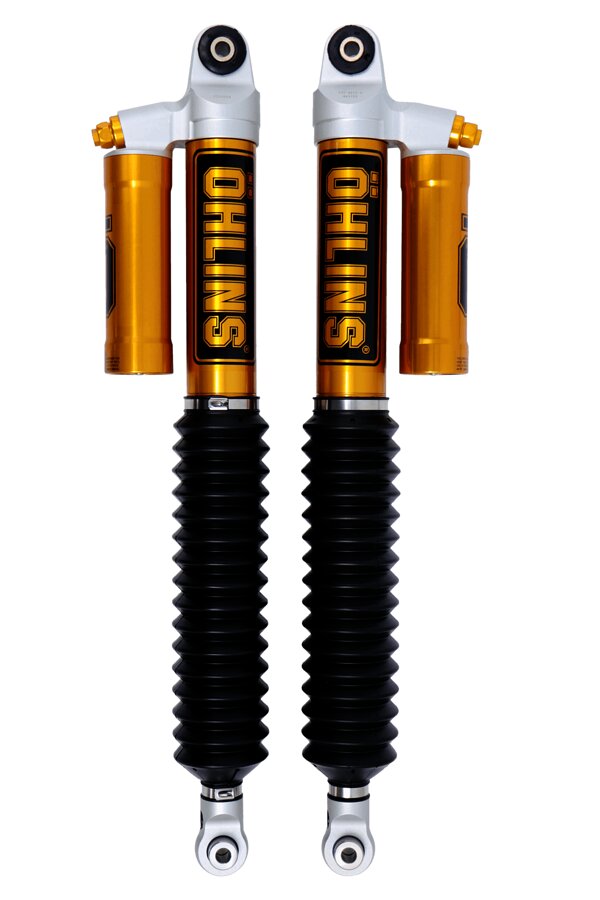

REAR FEATURES Conventional shock absorber with external reservoir Separate adjustment for compression and rebound damping Equipped with bellows for shaft protection Spring rate 40 N/mm (standard) or 50 N/mm (full load)

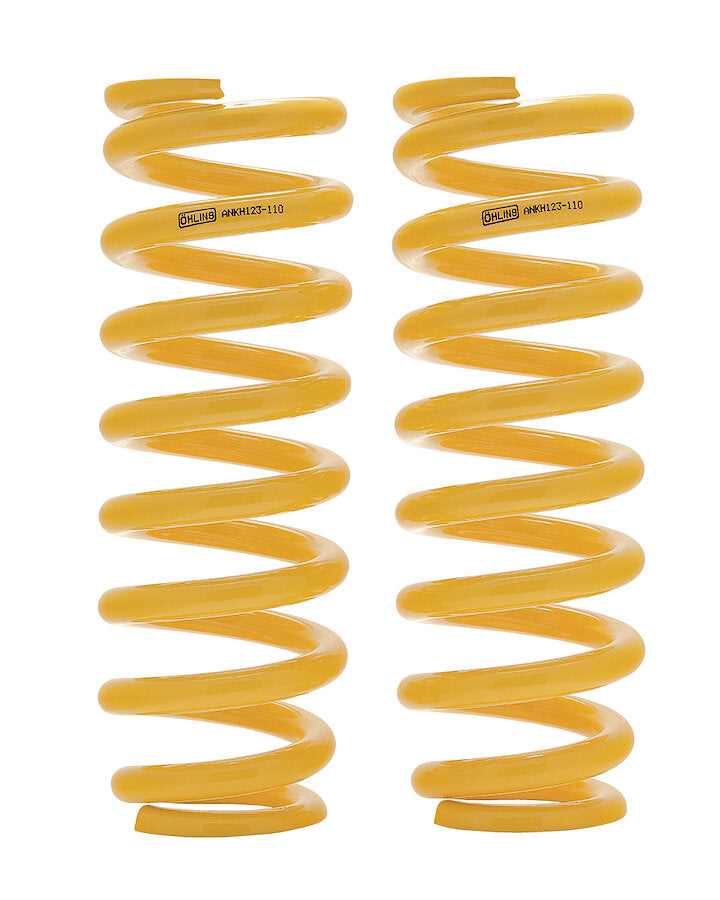

RECOMMENDED FRONT SPRING OPTIONS 130 N/mm (62462-02) - 1" lift for weight up to 50kg (i.e light pull bar) 140 N/mm (62462-03) - 1" lift for an additional weight up to 100kg (i.e winch)
RECOMMENDED REAR SPRING OPTIONS 40 N/mm (62473-04) - 1" lift for standard and light accessories weight 50 N/mm (62473-09) - 1" lift for an additional weight up to 100kg
