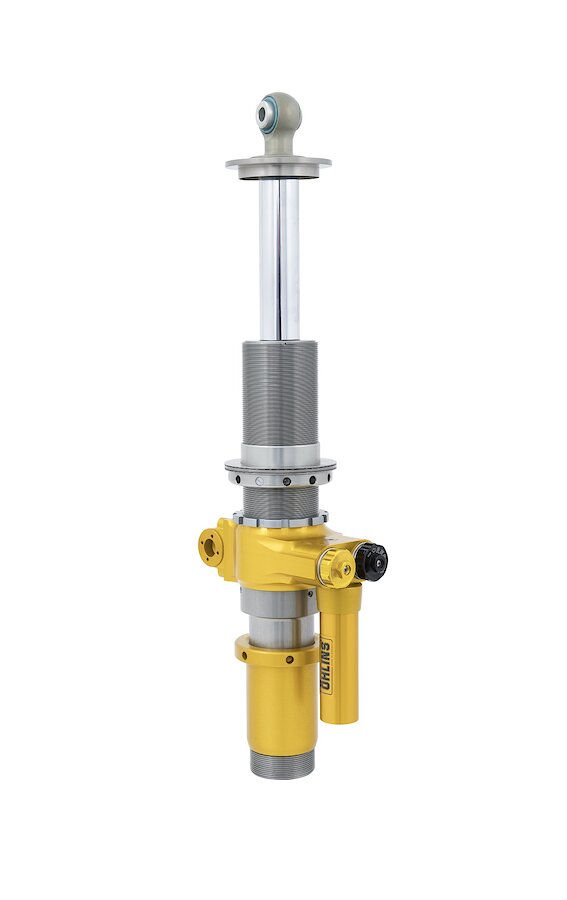

FRONT DAMPERS — VAF 5T00 / TTX46 McPherson strut, upside down Twin-Tube Technology (TTX) 2-way adjustable compression and rebound 46 mm piston 30 mm through rod Blow-off shim stack High-frequency piston Length adjustable

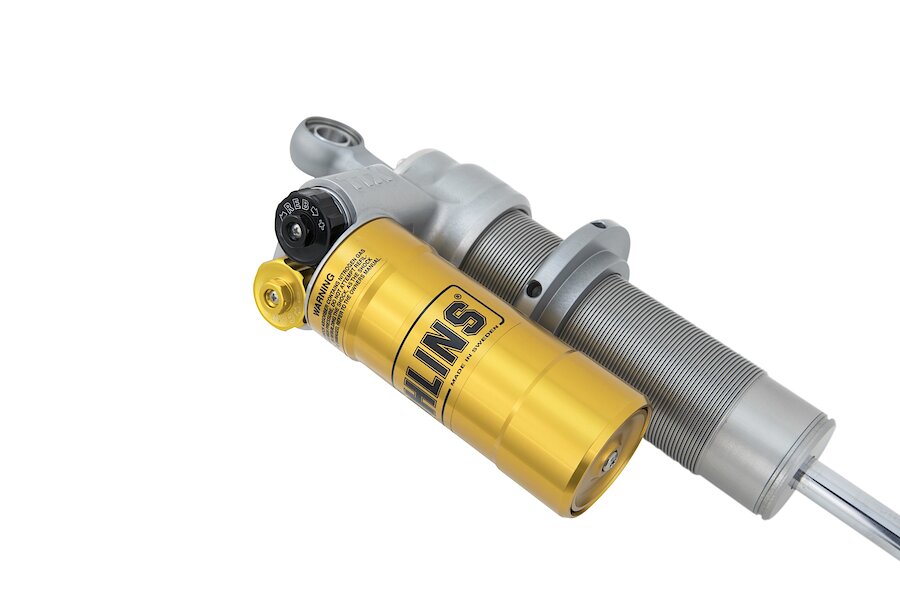

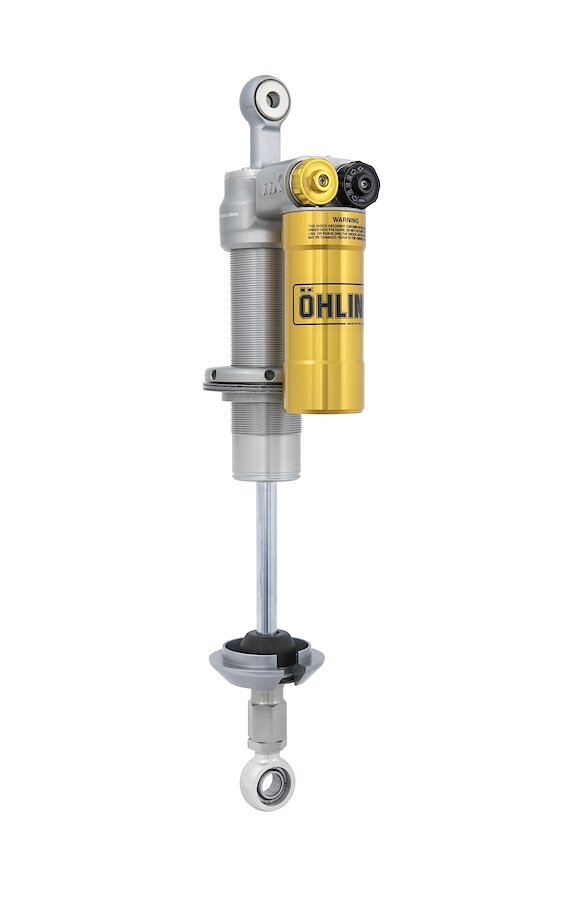

REAR DAMPERS — VAF 6T00 / TTX36 Twin-Tube Technology (TTX) 2-way adjustable compression and rebound 36 mm piston 14 mm shaft Length adjustable
RECOMMENDED SPRINGS Front: 110 N/mm, 200 mm length, 60 mm ID Rear: 90 N/mm, 200 mm length, 60 mm ID
IMPORTANT Two front length adjusters 06245-01 are required for installation. The standard 4-damper option does not include them; choose the option with length adjusters for a complete installation package.
