GENERAL FEATURES Race-proven twin-tube technology (TTX) 2-way independent compression and rebound adjustment Height adjustable, approximately 20 mm lower than standard Rebuildable 2-year limited warranty Springs and top mounts are ordered separately

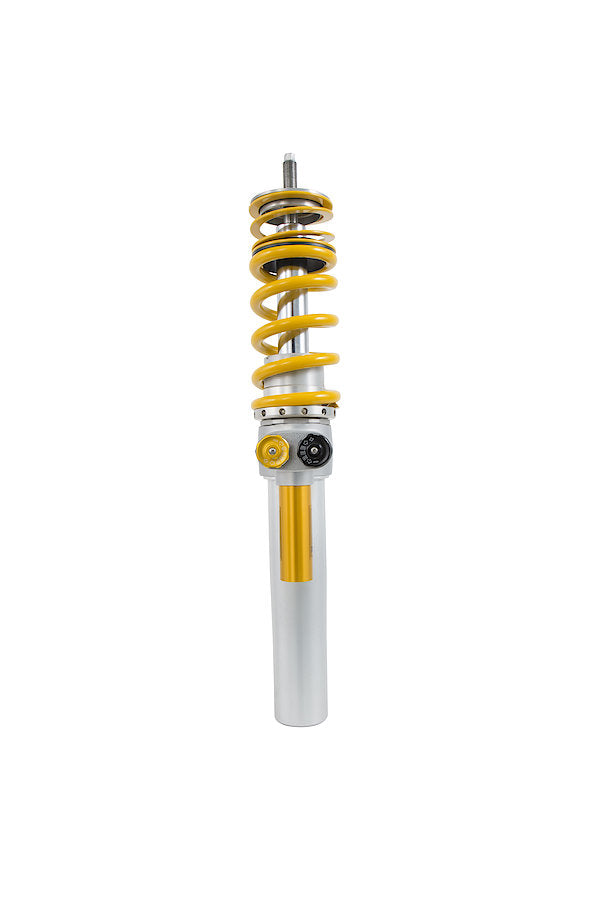

FRONT FEATURES TTX46 through-rod McPherson strut Spring preload adjuster Use with original top mounts Upgradeable to 3-, 4- and 5-way adjustment including blow-off valve

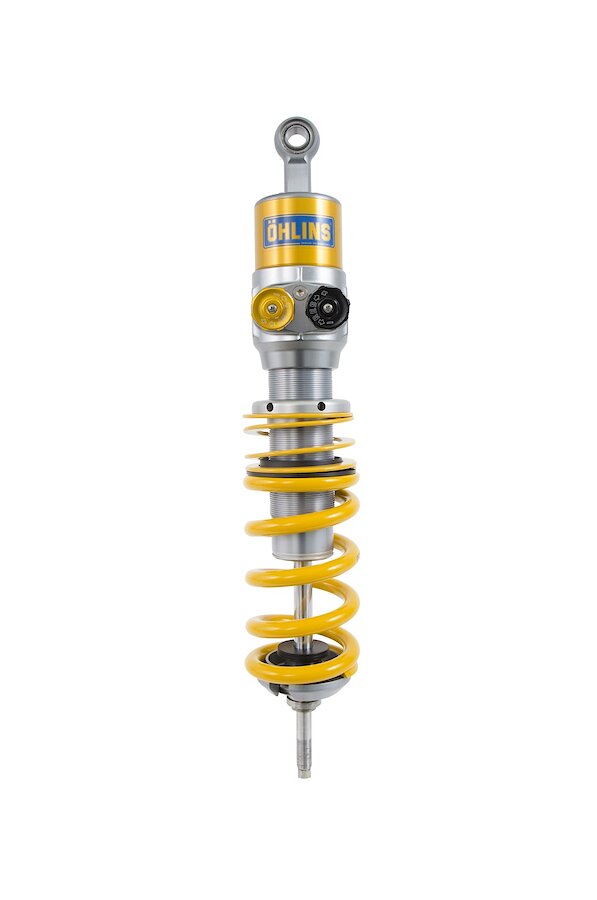

REAR FEATURES TTX36 lightweight shock absorber Spring preload adjuster Use with original top mounts Upgradeable to 3-, 4- and 5-way adjustment including blow-off valve
PURCHASED PARTS PACKAGE Damper set C-Spanner (for spring preload adjustment) Owner's manual and mounting instructions Sticker set Springs are not included

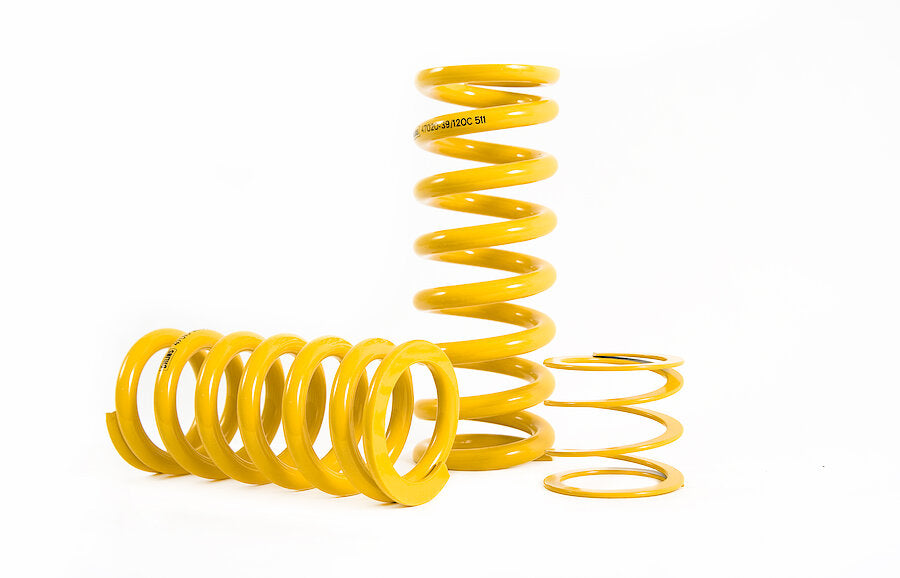

RECOMMENDED SPRINGS FOR TRACKDAY Main front - 100 N/mm - 48120-17 Helper front - 7.5 N/mm - 05173-12 Main rear - 200 N/mm - 48140-37 Helper rear - 7.5 N/mm - 05173-12
RECOMMENDED SPRINGS FOR MOTORSPORT Main front - 120 N/mm - 48120-21 Helper front - 7.5 N/mm - 05173-12 Main rear - 200 N/mm - 48140-37 Helper rear - 7.5 N/mm - 05173-12
ADDITIONAL OPTIONS For cars equipped with Porsche Active Suspension Management (PASM), Öhlins cancellation kit 35020-13 is available separately.
