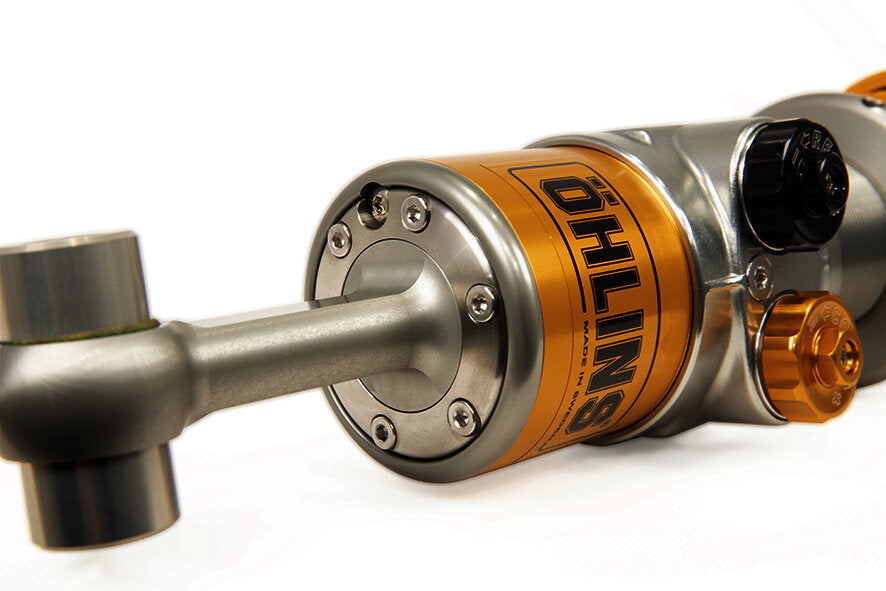

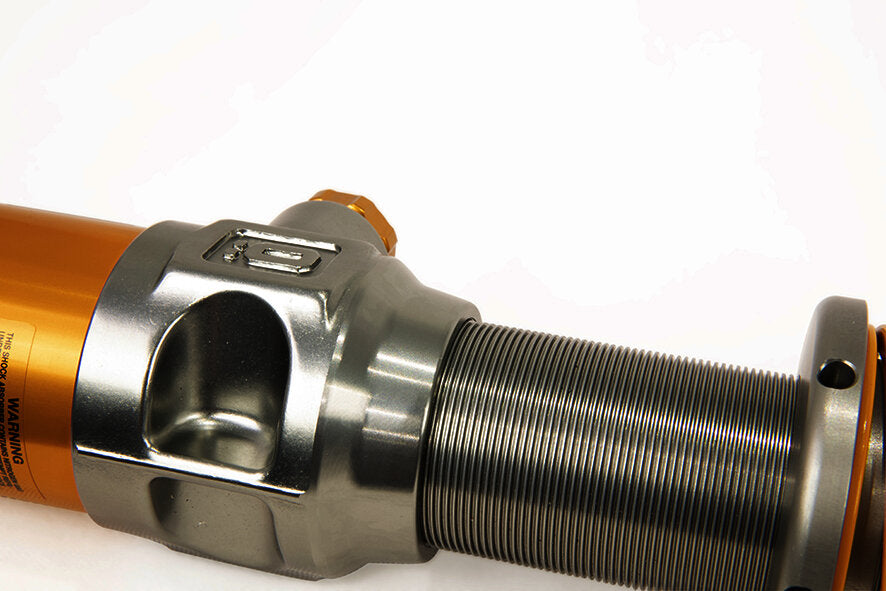

GENERAL FEATURES TTX, a true twin tube design for cavitation free damping performance 2-way fully independent rebound- and compression adjustment Aluminum high strength & light-weight parts Rebuildable 2 year limited warranty Height adjustable – approx. 20 mm lower than standard

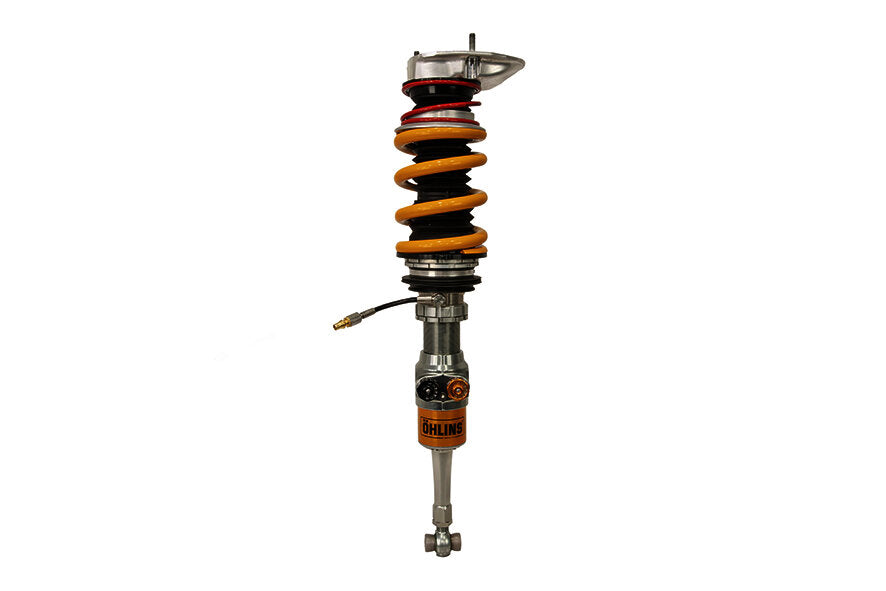

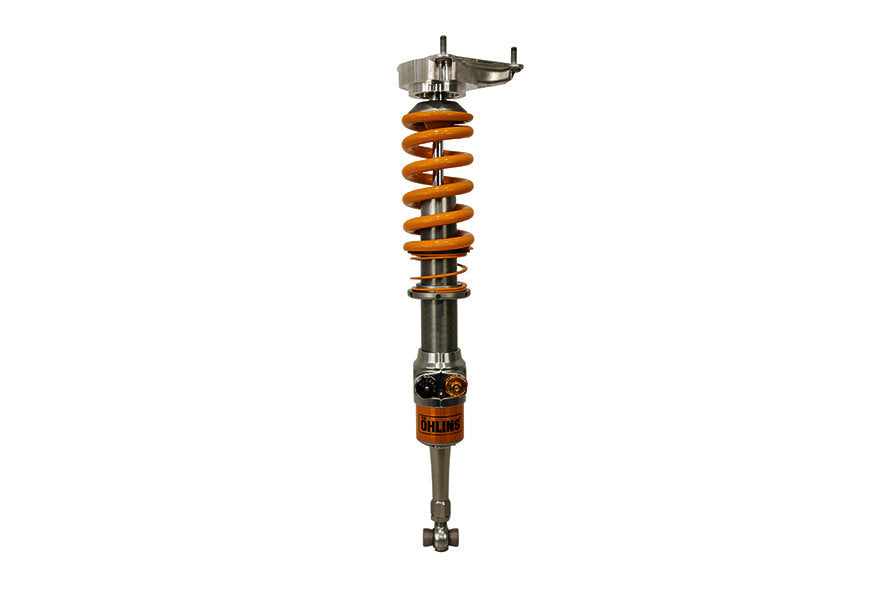

FRONT FEATURES Aluminum high strength, light-weight compact design McPherson strut Through rod design, for better response and driver feedback Spring preload adjuster Used together with original top mounts Upgradeable to 3-, 4- & 5-way adjustable including blow-off valve

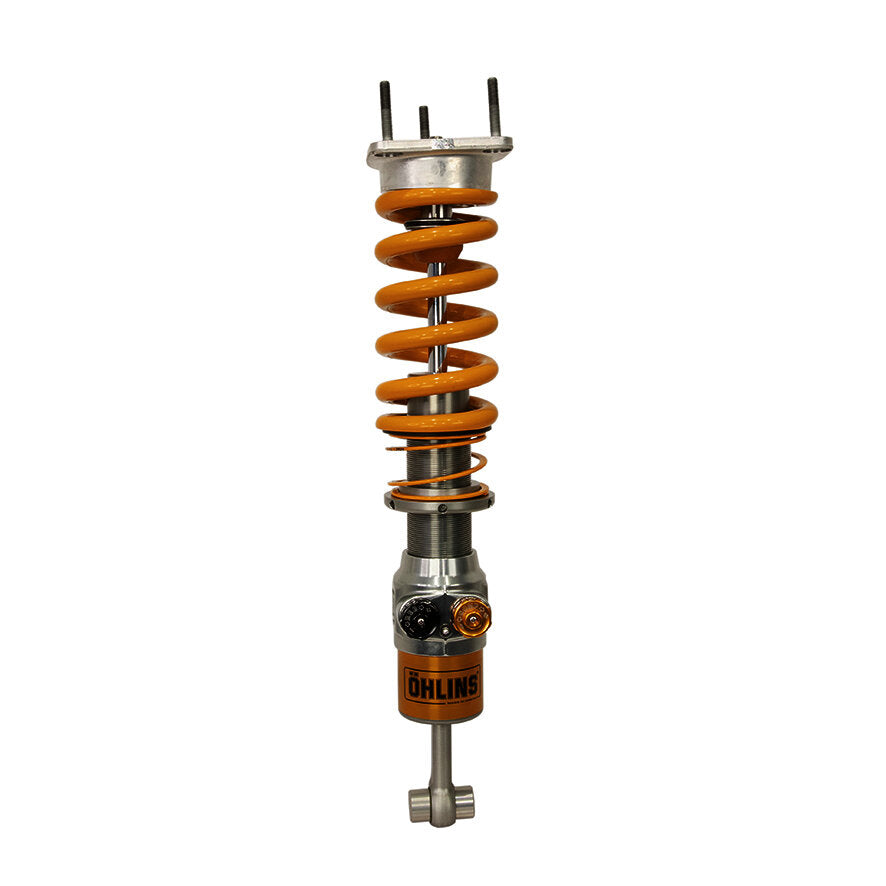

REAR FEATURES Aluminum high strength, light-weight compact design shock absorber Spring preload adjuster Used together with original top mounts Upgradeable to 3-, 4- & 5-way adjustable including blow-off valve

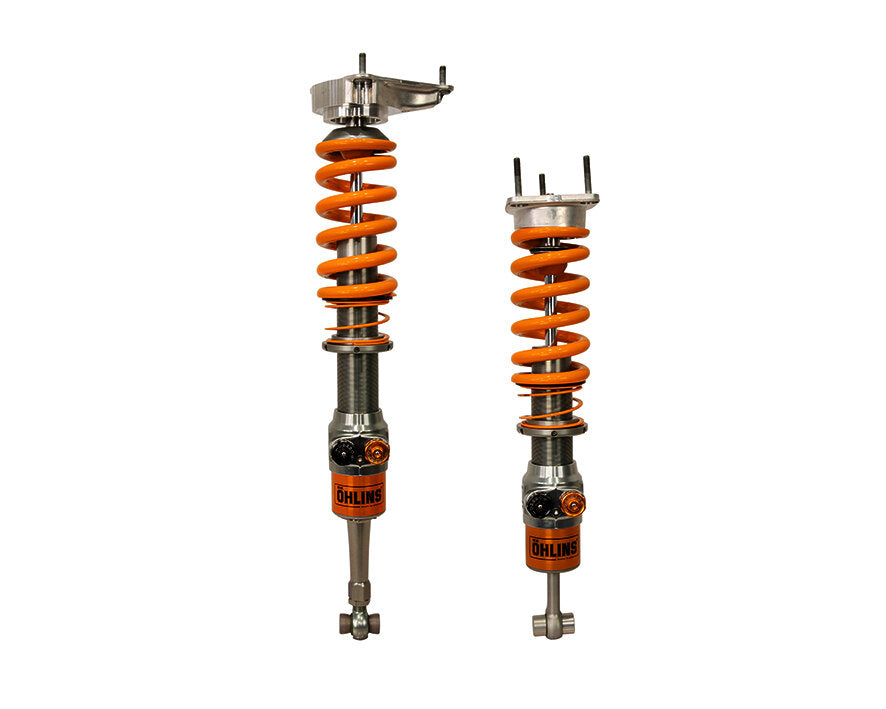

PURCHASED PARTS PACKAGE Damper set C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set

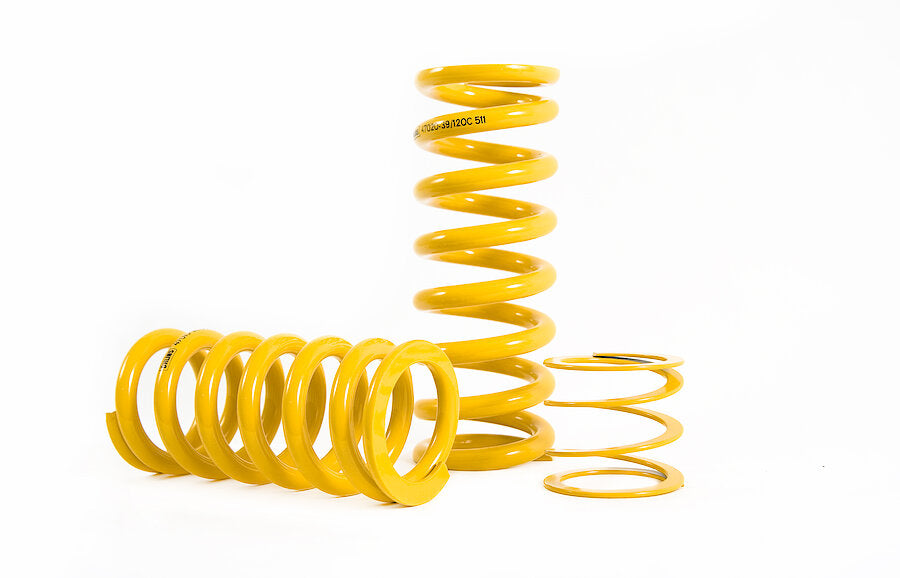

RECOMMENDED SPRINGS Main front - 180 N/mm - 48170-33 Helper front - 7,5 N/mm - 05173-12 Main rear - 200 N/mm - 48170-37 Helper rear - 7,5 N/mm - 05173-12

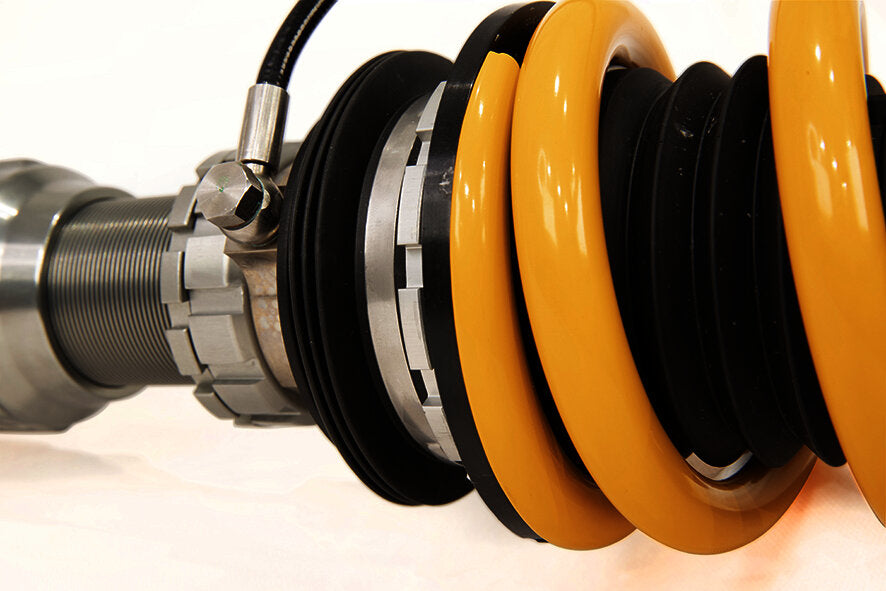

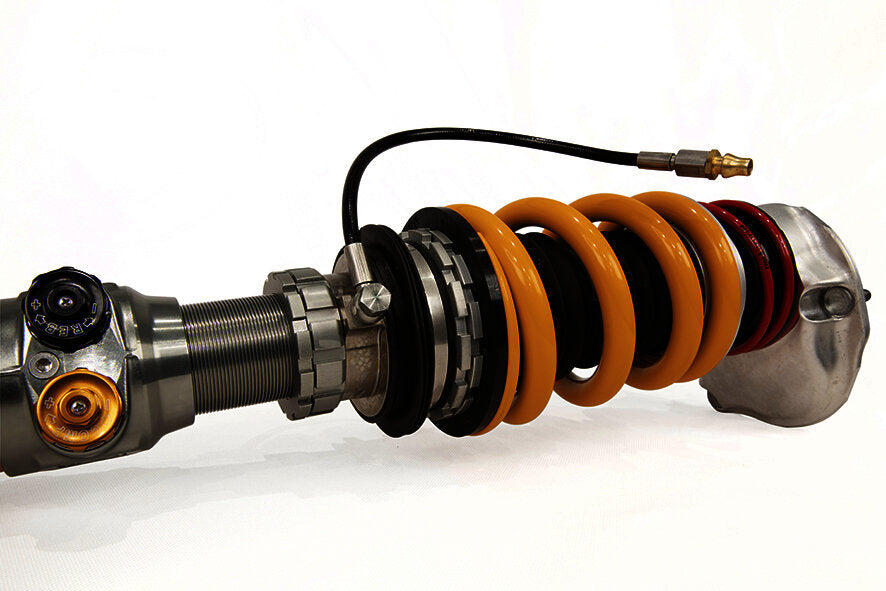

ADDITIONAL NOTES To remove DTCs from Porsche 911 (992), equipped with Porsche Active Suspension Management (PASM), Öhlins is offering EDC Cancellation kit, part nr 35020-36 (not included). The use of the Porsche OE Front-Axle Lift System is possible with the POV MW00 kit. To retain this functionality, a dedicated Lift Adapter Kit, part nr 05925-10, must be used to adapt the factory lifting hardware to the Öhlins struts (not included in the standard damper kit). For alternative spring options, please contact us.
