GENERAL FEATURES Race-proven Ohlins Twin-Tube technology (TTX) Separate adjustment for compression and rebound damping, i.e 4-way damping adjustment Aluminum high strength and light-weight design Top mounts specially designed by Öhlins & Millway Tested and validated for multi-compound tyres (semi-slick) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

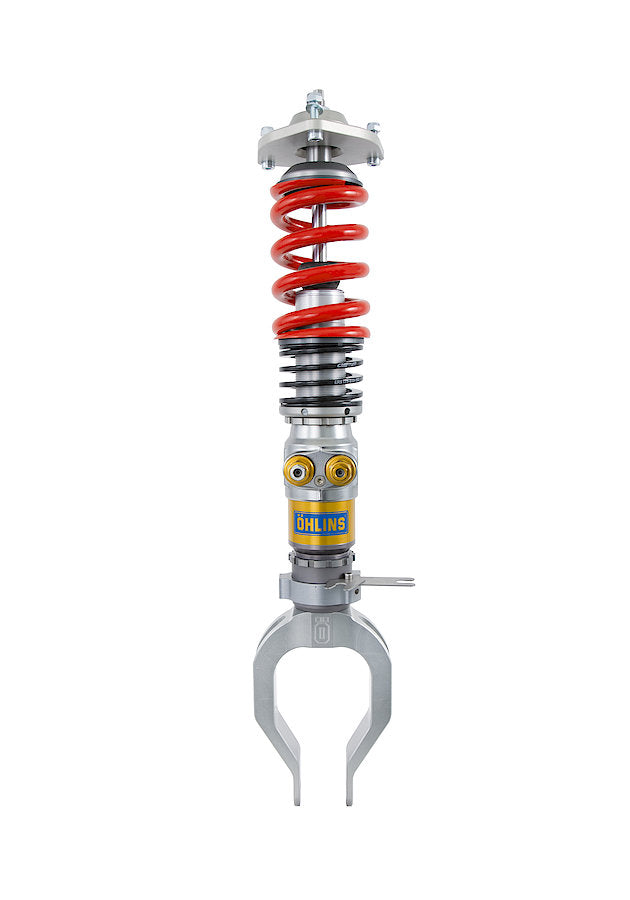

FRONT FEATURES ILX36 shock absorbers with internal reservoir, 36 mm piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate length adjuster Approx. 20 mm lower with recommended setting Spring rate 260 N/mm Uniball aluminum top mounts

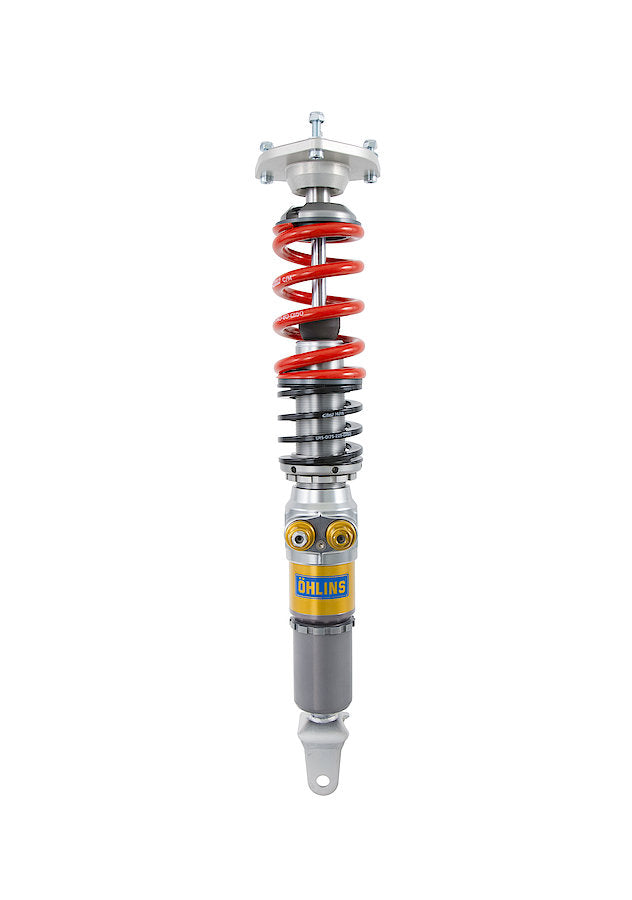

REAR FEATURES ILX36 shock absorbers with internal reservoir, 36 mm piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate length adjuster Approx. 20 mm lower with recommended setting Spring rate 150 N/mm Uniball aluminum top mounts
PURCHASED PARTS PACKAGE Coilover kit including springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL NOTES To remove DTCs from caused from disabling the Electronic Damper Control (EDC), Öhlins is offering EDC Cancellation kit, part nr 35020-06 (not included). For alternative spring options, please contact us.
